Chapter 1: Product Introduction

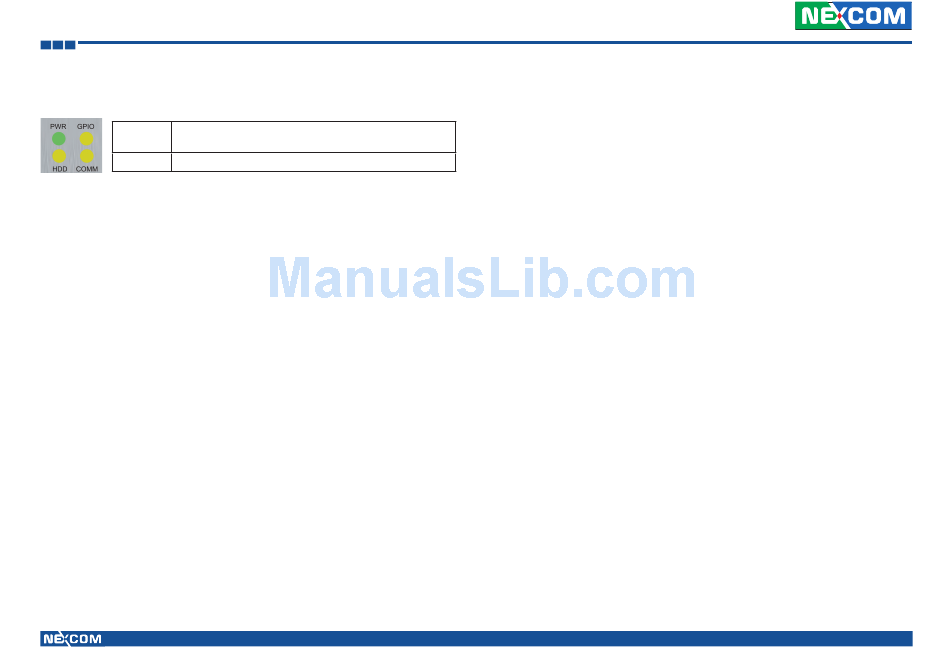

LEDs
GPIO
I/O PORT Address : <Read/Write> #0EE0H Bit 0 : 0(Off)
1(On).
COMM
WLAN/HSDPA Status
SIM Card Socket
VTC 6201 / VTC 6201-M can be internally integrated with a 3.5G Mini Card
module. The SIM card bracket is on the board. When using the GPRS/UMTS/
HSDPA function, insert the SIM card into the SIM card socket. Make sure to
turn off VTC6201 / VTC6201-M before inserting the SIM card.
USB Ports x2
The USB port complies with USB 2.0 specifications.
WiFi/Bluetooth Module Antenna Mounting Holes
The 3 external antenna mounting holes are used to mount and connect WiFi
antenna to a WLAN module (Mini Card type).
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
GPRS/UMTS/HSDPA Module Antenna Mounting Hole
The antenna mounting hole is used to mount and connect an antenna to
the GPRS/UMTS/HSDPA module.
Reset Button
Press this button to restart VTC 6201 / VTC 6201-M.
Line-out
Line-out is a stereo output for connecting external speakers.
Mic-in
Mic-in receives monophonic input from an external microphone.
7
