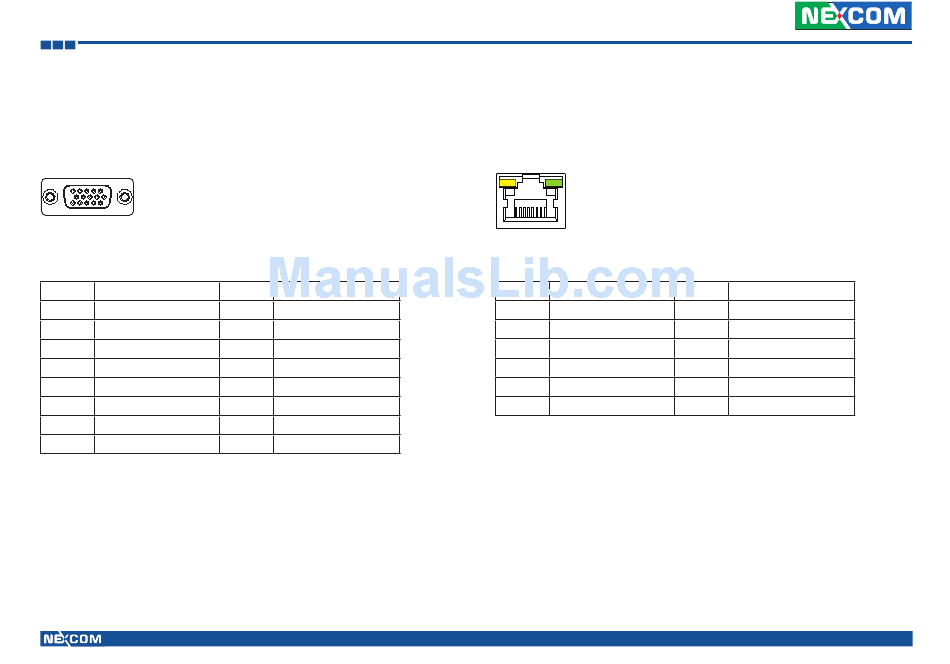

Chapter 2: Jumpers and Connectors
VGA Port
Connector size: DB-15 port, 15-pin D-Sub
Connector location: CON2 and CON3
5
1
15
11
Connector pin definition
Pin
Definition
1
RED
3
BLUE
5
GND
7
GND
9
VCC
11
NC
13
Hsync
15
DDCCLK
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
Pin
Definition
2
GREEN
4
NC
6
GND
8
GND
10
Gnd
12
DDCDAT
14
Vsync
LAN Port
Connector size: RJ45 port
Connector location: LAN1, LAN2
Connector pin definition
Pin
Definition
1
TX+
3
RX+
5
N/C2
7
N/C3
9
LAN Speed LED
11
LAN Link LED
22
Pin
Definition
2
TX-
4
N/C1
6
RX-
8
N/C4
10
VCC3_3
12
VCC3_3
