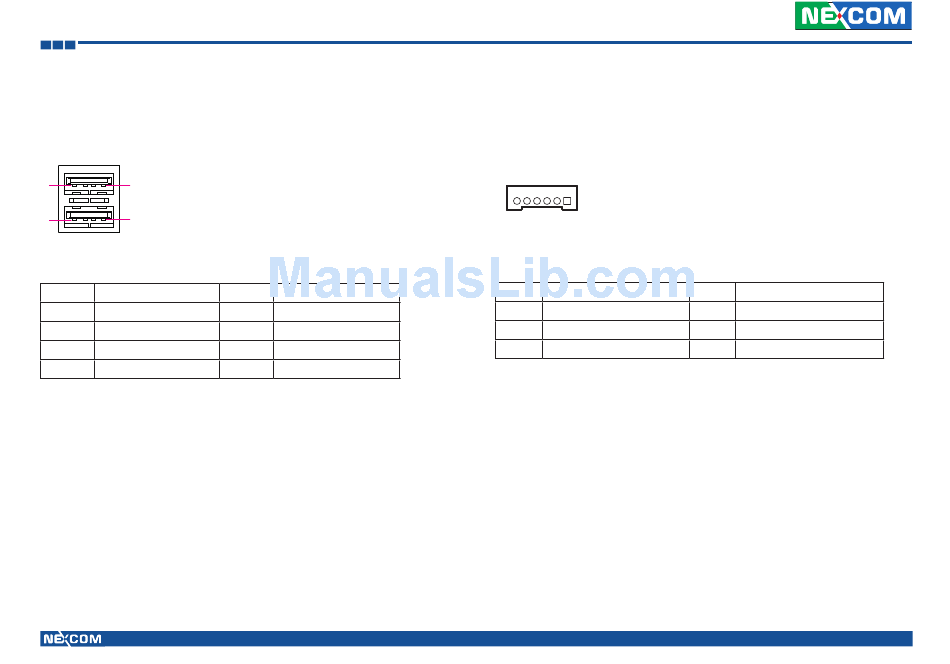

Chapter 2: Jumpers and Connectors
USB Ports
Connector size: Dual USB port, Type A
Connector location: USB1 and USB2
1
4
8
5
Connector pin definition
Pin
Definition
1
VCC
3
DATA1+
5
VCC
7
DATA+
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved
Pin
Definition
2
DATA1-
4
GND
6
DATA-
8
GND
LVDS Power Connector
Connector size: JST 6-pin, 2.54 mm pitch
Connector location: J2
1
6
Connector pin definition
Pin
Definition
1
Panel_backlight
3
GND
5
LVDS_PANEL
23
Pin
Definition
2
Panel_VDD
4
GND
6
LVDS_BIASON
VTC 6201 Series User Manual
