Chapter 2: Jumpers and Connectors

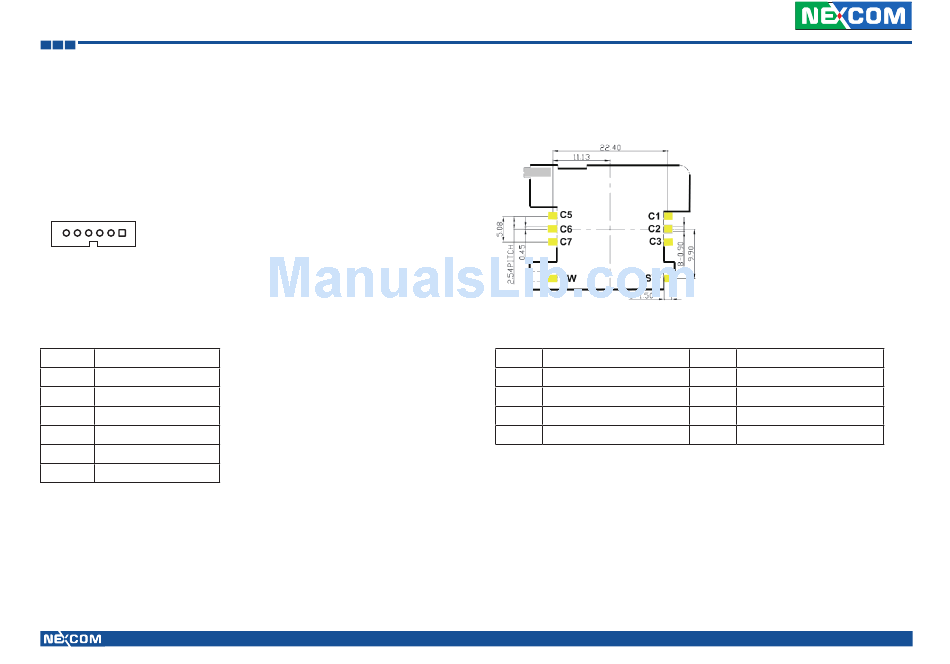

GPS Connector

Connector size: JST 6-pin, 2.54 mm pitch
Connector location: J8
6 1
Connector pin definition
Pin Definition
1 GPS_BAT
2 GPS_LED#
3 SP_TX1
4 SP_RX1
5 GND
6 VCC3_3S
Copyright © 2011 Nexcom International Co., Ltd. All Rights Reserved

SIM Card Connector

Connector location: CN2,CN5
Connector Pin Definition
Pin Definition
C1 POWER VOLTAGE
C3 CLOCK SIGNAL
C6 VPP:PROGRAM VOLTAGE
SW Contact present switch
32
Pin Definition
C2 RESET SIGNAL
C5 GND
C7 I/O
