Chapter 3: Jumpers and Switches

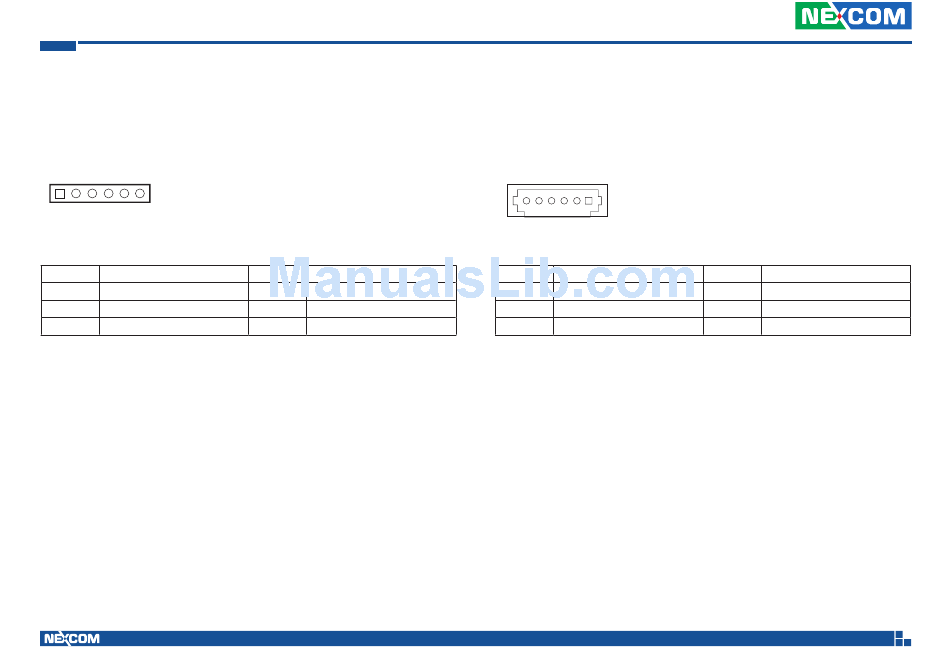

GAL Download Port
Connector size: 1 x 6 = 6-pin header (2.54mm)
Connector location: JP4
1
6
Pin
Definition
1
VCC3
3
TCK
5
TDI
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
TDO
6
TMS
GPS Connector
Connector size: 1 x 6 = 6-pin header (1.0mm)
Connector location: J12
6
1
Pin
Definition
1
GPS_BAT
3
GPS_TX
5
GND
25
Pin
Definition
2
GPS_LED#
4
GPS_RX
6
VCC3_GPS
VTC 6210-R Series User Manual
