Chapter 2: Jumpers and Connectors

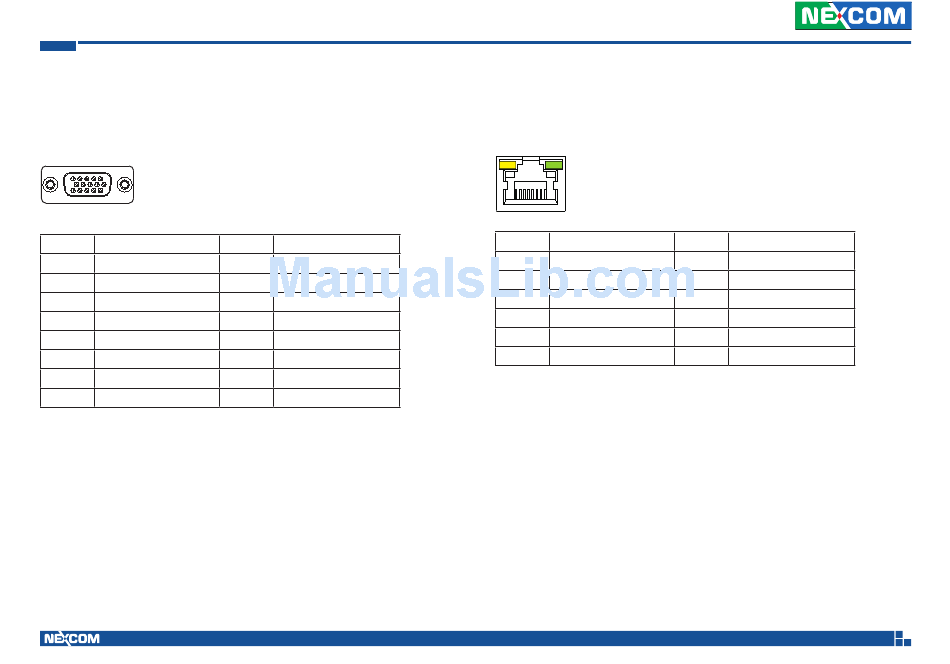

VGA Port

Connector size: DB-15 port, 15-pin D-Sub
Connector location: CON2 and CON3
5 1
15 11
Pin Definition
1 RED
3 BLUE
5 GND
7 GND
9 VCC
11 NC
13 Hsync
15 DDCCLK
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 GREEN
4 NC
6 GND
8 GND
10 Gnd
12 DDCDAT
14 Vsync

LAN Port

Connector size: RJ45 port
Connector location: LAN1
Pin Definition
1 TX+
3 RX+
5 N/C2
7 N/C3
9 LAN Speed LED
11 LAN Link LED
24
Pin Definition
2 TX-
4 N/C1
6 RX-
8 N/C4
10 VCC3_3
12 VCC3_3
