LEROY-SOMER

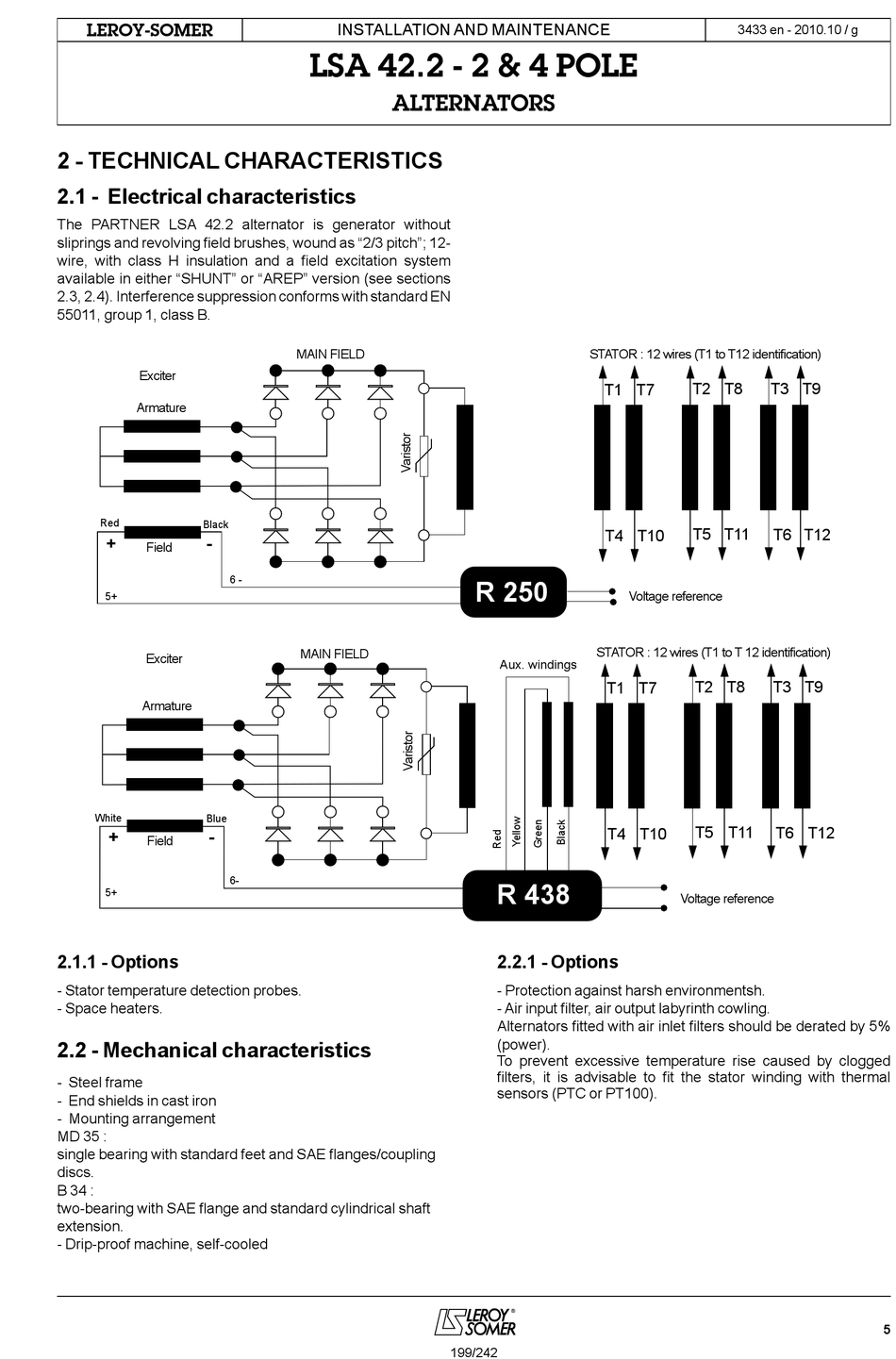

2 - TECHNICAL CHARACTERISTICS
2.1 - Electrical characteristics
The PARTNER LSA 42.2 alternator is generator without
sliprings and revolving field brushes, wound as "2/3 pitch"; 12-
wire, with class H insulation and a field excitation system
available in either "SHUNT" or "AREP" version (see sections
2.3, 2.4). Interference suppression conforms with standard EN
55011, group 1, class B.
Exciter
Armature
Red
Black
+
+
-
-
Field
6 -
5+
Exciter
Armature
White
Blue
+
+
-
-
Field
6-
5+
2.1.1 - Options
- Stator temperature detection probes.
- Space heaters.
2.2 - Mechanical characteristics
- Steel frame
- End shields in cast iron
- Mounting arrangement
md 35 :
single bearing with standard feet and SAE flanges/coupling
discs.
B 34 :
two-bearing with SAE flange and standard cylindrical shaft
extension.
- Drip-proof machine, self-cooled
InstallatIon and maIntenance
LSA 42.2 - 2 & 4 POLE
ALTERNATORS
MAIN FIELD
R 250
MAIN FIELD
199/242
Exciter
Armature
Exciter
Armature
Red
Black
+
+
-
-
Field
6 -
White
Blue
5+
+
+
-
-
Field
6-
5+
STATOR : 12 wires (T1 to T12 identification)
T1
T7
T4
T10
Voltage reference
STATOR : 12 wires (T1 to T 12 identification)
Aux. windings
T1
T7
T4
T10
R 438
2.2.1 - Options
- Protection against harsh environmentsh.
- Air input filter, air output labyrinth cowling.
Alternators fitted with air inlet filters should be derated by 5%
(power).
To prevent excessive temperature rise caused by clogged
filters, it is advisable to fit the stator winding with thermal
sensors (PTC or PT100).
3433 en - 2010.10 / g
MAIN FIELD
MAIN FIELD
T2
T8
T3
T9
T5
T11
T6
T12
T2
T8
T3
T9
T5
T11
T6
T12
Voltage reference
Aux. winding
R 250
R 438
5
