Chapter 6 Maintenance and Troubleshooting

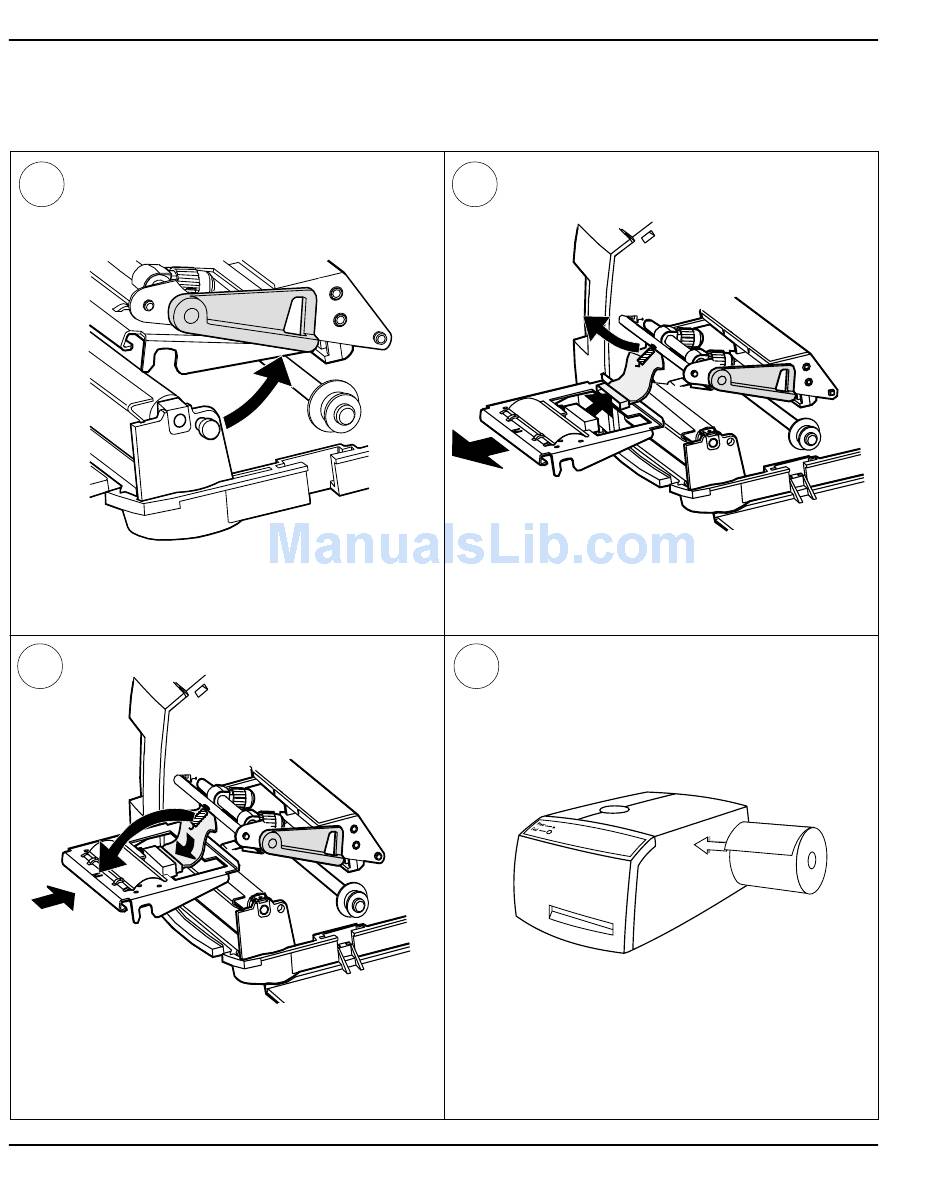

Changing the Printhead, cont'd.
3
Raise the printhead.
5
3
1
Slide in the new printhead, plug in the electrical
connector and hook the spring into position.
52
2
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1
4
1
2
Unhook the spring, pull the printhead forward
and remove the electrical connector.
6
Replace the paper.
3
