Printing Test
Labels

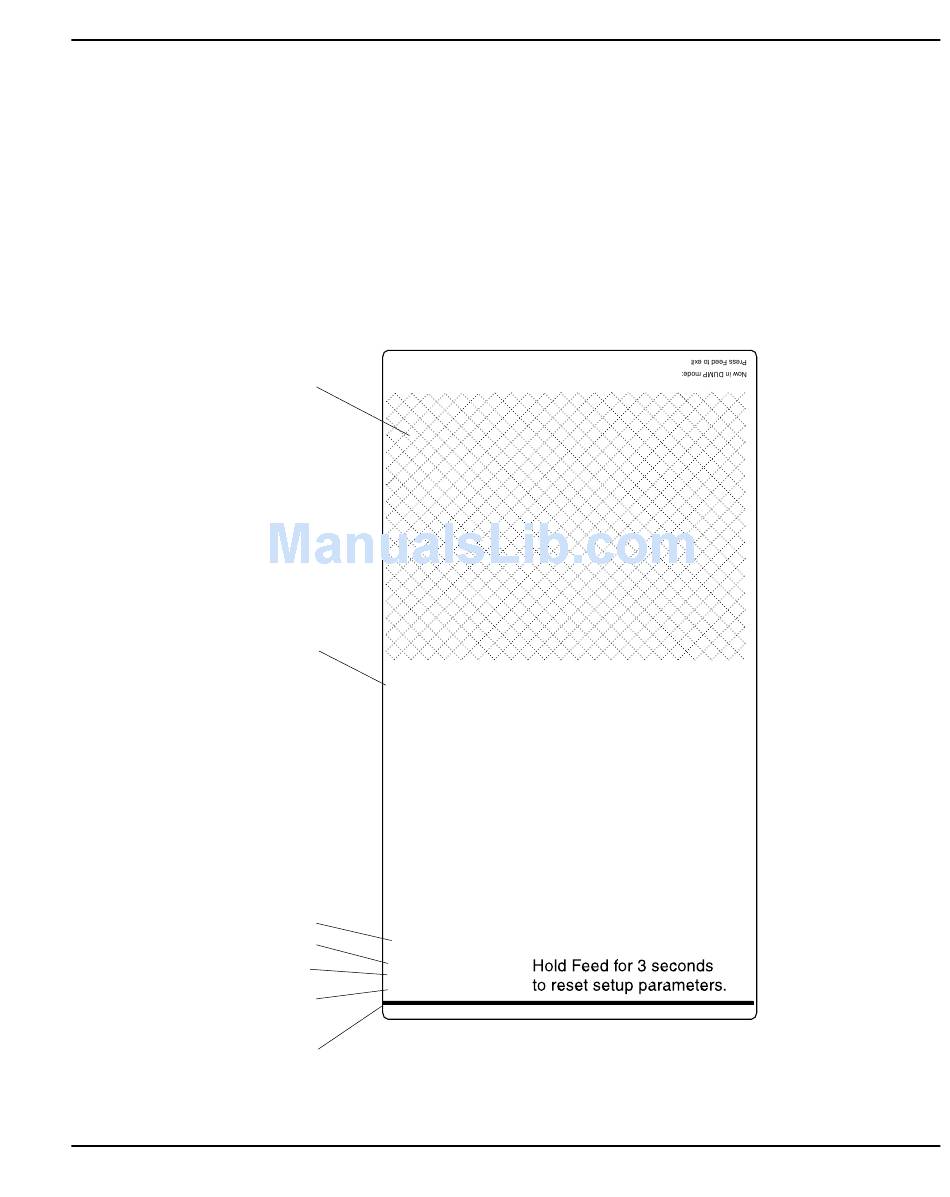

Crosshatch pattern
Setup parameters
Firmware version number, e.g.
Label size (in dots)
Serial port setup
Total length of labels printed
since last font upgrading
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1
The EasyCoder E4 LinerLess prints a test label containing the print-
er's current setup and other useful information plus a test bar and a
crosshatch pattern allowing you to check that the printhead is per-
forming correctly.
To print the test label:
1 Turn off the printer.
2 Press and hold the Feed button and turn the printer on.
3 Release Feed button when the green LED flashes.
4 The printer carries out a TESTFEED and sets the printhead
resistance.
5 After a delay, the labels is printed:
LSS ADJUST,20
STOPADJ,154
STARTADJ,-220
XSTART,0
WIDTH,832
LENGTH,1200
MEDIA TYPE,VAR. LENGTH STRIP
HEAD RESISTANCE:651
GS103
PERFORMANCE,NORMAL
CONTRAST,5
UART1,BAUDRATE,9600
UART1,PARITY,NONE
UART1,CHAR LENGTH,8
UART1,STOPBITS,1
UART1,FLOW CONTROL,RTS/CTS,DISABLE
UART1,FLOWCONTROL,XON/XOFF,DATA FROM HOST,DISABLE
UART1,FLOWCONTROL,XON/XOFF,DATA TO HOST,DISABLE
UART1,NEW LINE,CR/LF
V2.01
Page: 832x1200
SERCOM:9600N81
Km of labels: 0.000
Test bar
6 The printer now enters the Dump Mode, in which all ASCII
characters received from the host on any port will printed on
labels. To exit the Dump Mode and auto-align the web, tap the
Feed button.
Chapter 3 Operation
13
