Programming a
Label, cont'd.

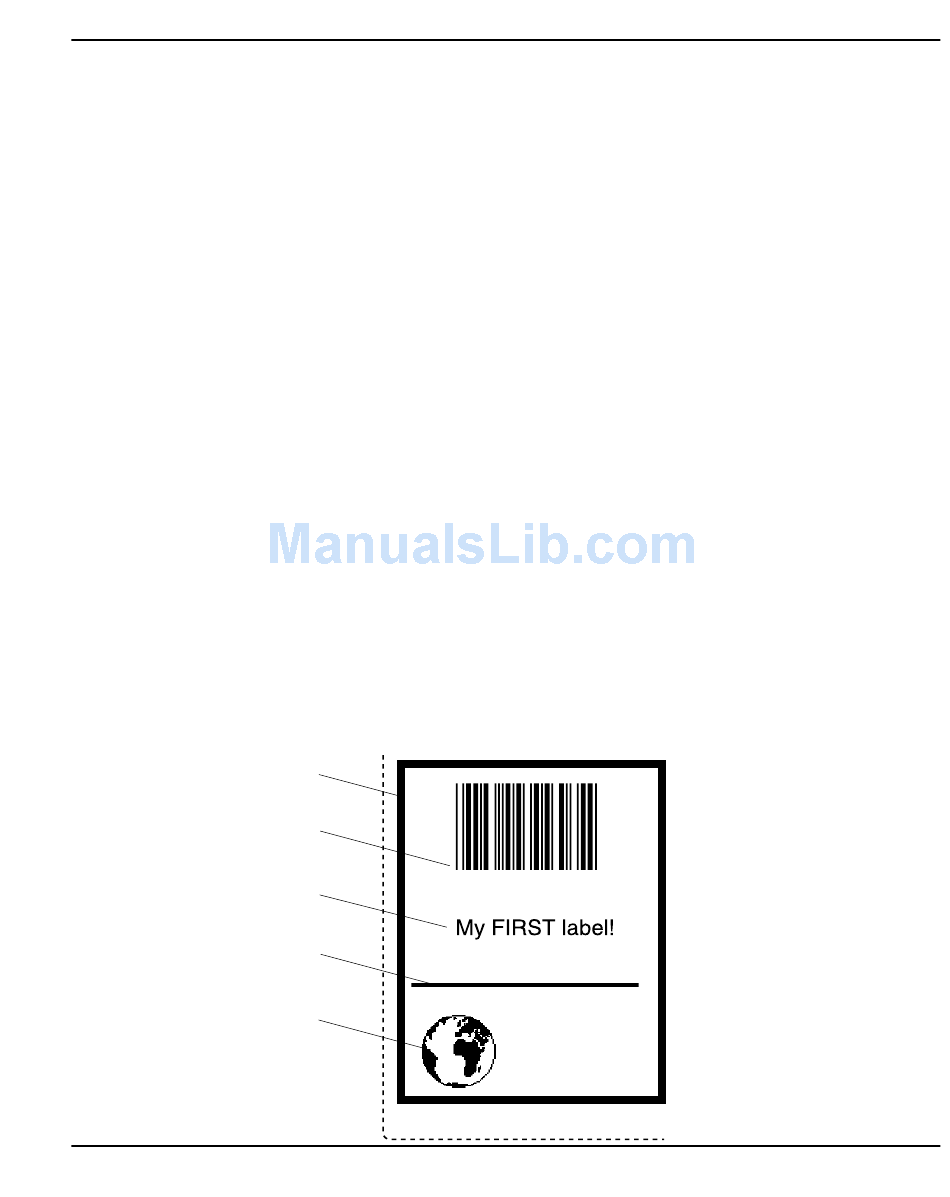

Box Field
Bar Code Field
(with interpretation)
Text Field
Line Field
Image Field
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1
A label design is made up of fields. There are five different types of
field, each of which must be specifically formatted:
• Text Field:
A text field consists of a single line of text, formatted for font,
magnification, rotation and normal or inverse image.
• Bar Code Field:
A bar code field consists of a single bar code, with or without a bar
code interpretation in human readable characters, formatted for
type, height, bar ratio, magnification, rotation, interpretation On/
Off and interpretation font.
• Image Field:
An image field is a picture, drawing, logotype or other type of
illustration. Images sent to the printer should be in .PCX format,
and formatted for magnification and normal or inverse image.
Images can only be rotated by 180°.
• Box Field:
A box field is a square or rectangular area surrounded by a black
border line, which must be formatted for height, width, line
thickness and rotation. If the border is sufficiently thick, the whole
area may appear black.
• Line Field:
A line field is a black line that goes either along or across the paper
web, and is formatted for length, line thickness and rotation. A
short, thick line can look like a black box.
There are no restrictions, other than the size of the memory, regard-
ing the number of fields on a single label.
