Intermec EasyCoder E4 Installation & Operation Manual page 33

Chapter 5 Printer Setup

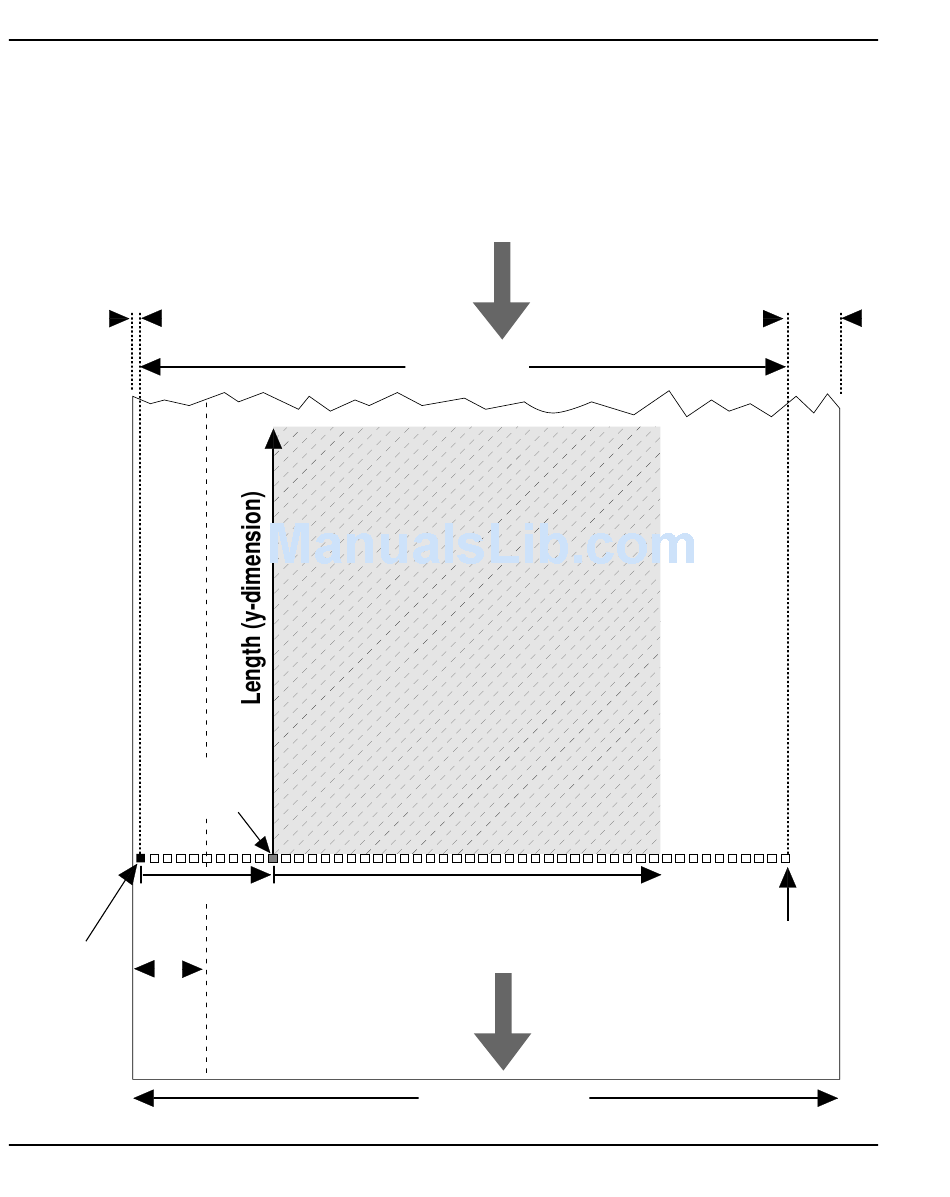

Print Location
Setup, cont'd.
1 mm
(0.04")
(x=0; y=0)
Dot-line on
printhead
X-start
Dot 0
12 mm
(0.47")
32
Setup strings, examples:
SETUP "SERVICE,MEDIA_SIZE,XSTART,30" ↵
SETUP "SERVICE,MEDIA_SIZE,WIDTH,600" ↵
SETUP "SERVICE,MEDIA_SIZE,LENGTH,800" ↵
Origin
Width (x-dimension)
Path of
Label Stop Sensor &
Label Taken Sensor
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1
From
paper supply
104 mm (4.1")
PRINT PRINT
WINDOW WINDOW
PAPER FEED
DIRECTION
max. 114 mm (4.49")
9 mm
(0.35")
Dot 831
