Intermec EasyCoder E4 Installation & Operation Manual page 12

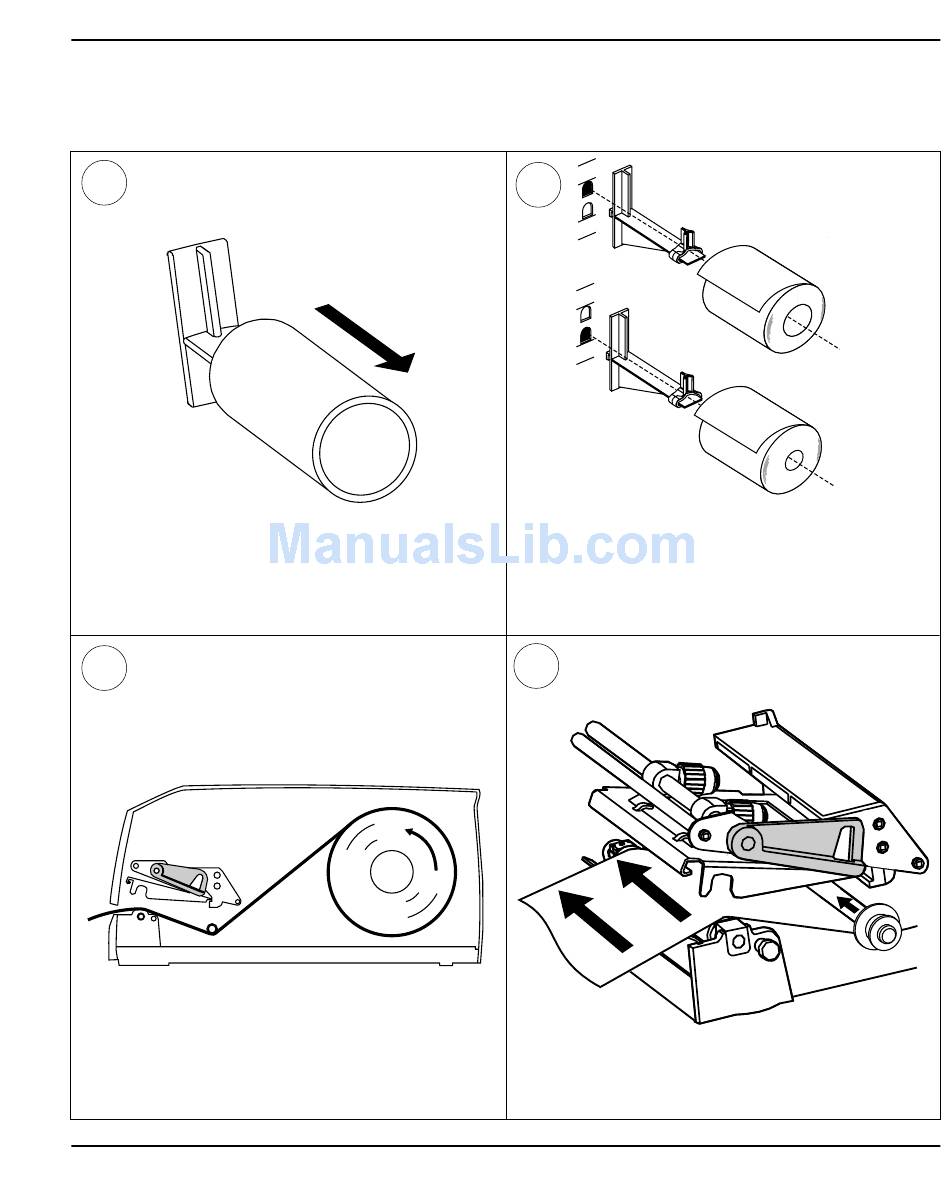

Paper Load – Tear Off, cont'd.
3
Remove the empty paper core, if any. It is not
necessary to remove the end stop.
5
Feed the paper under the guide roller, over the
print roller and through the dispenser slot.
Intermec EasyCoder E4 LinerLess – Installation & Operation Ed. 1
4
Ensure that the paper supply hanger is in the
correct position for the new paper roll size. The
hanger is easier to move if first rotated
turn. Push the new roll as far back as it will go.
6
Push the paper as far in as it will go and adjust
the guide ring according to the paper width.
Chapter 3 Operation
