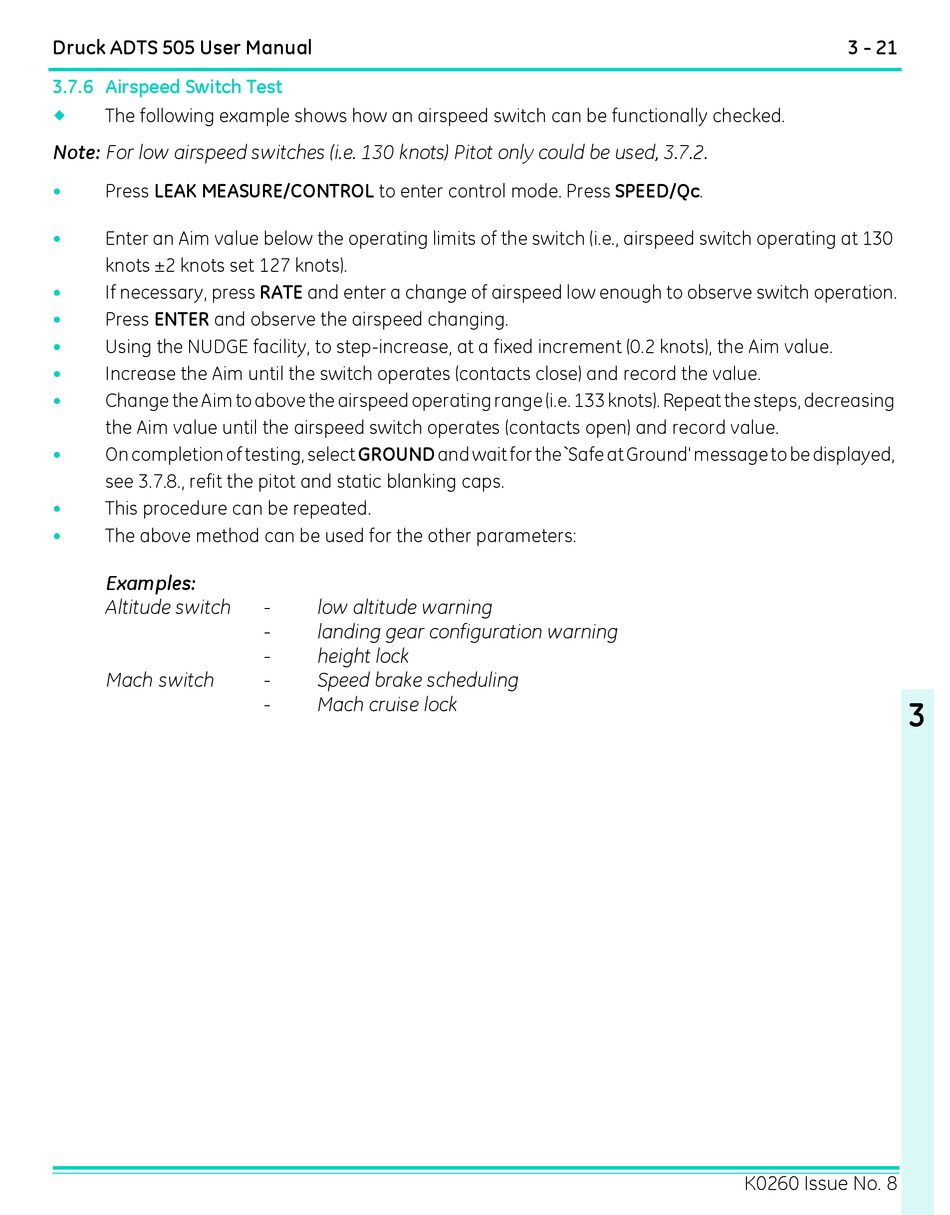

Druck ADTS 505 User Manual
3.7.6 Airspeed Switch Test
The following example shows how an airspeed switch can be functionally checked.
Note: For low airspeed switches (i.e. 130 knots) Pitot only could be used, 3.7.2.
•
Press LEAK MEASURE/CONTROL to enter control mode. Press SPEED/Qc.
•
Enter an Aim value below the operating limits of the switch (i.e., airspeed switch operating at 130
knots ±2 knots set 127 knots).
•
If necessary, press RATE and enter a change of airspeed low enough to observe switch operation.
•
Press ENTER and observe the airspeed changing.
•
Using the NUDGE facility, to step-increase, at a fixed increment (0.2 knots), the Aim value.
•
Increase the Aim until the switch operates (contacts close) and record the value.
•
Change the Aim to above the airspeed operating range (i.e. 133 knots). Repeat the steps, decreasing
the Aim value until the airspeed switch operates (contacts open) and record value.
•
On completion of testing, select GROUND and wait for the `Safe at Ground' message to be displayed,
see 3.7.8., refit the pitot and static blanking caps.
•
This procedure can be repeated.
•
The above method can be used for the other parameters:
Examples:
Altitude switch
Mach switch
-
low altitude warning
-
landing gear configuration warning
-
height lock
-
Speed brake scheduling
-
Mach cruise lock
3 - 21
