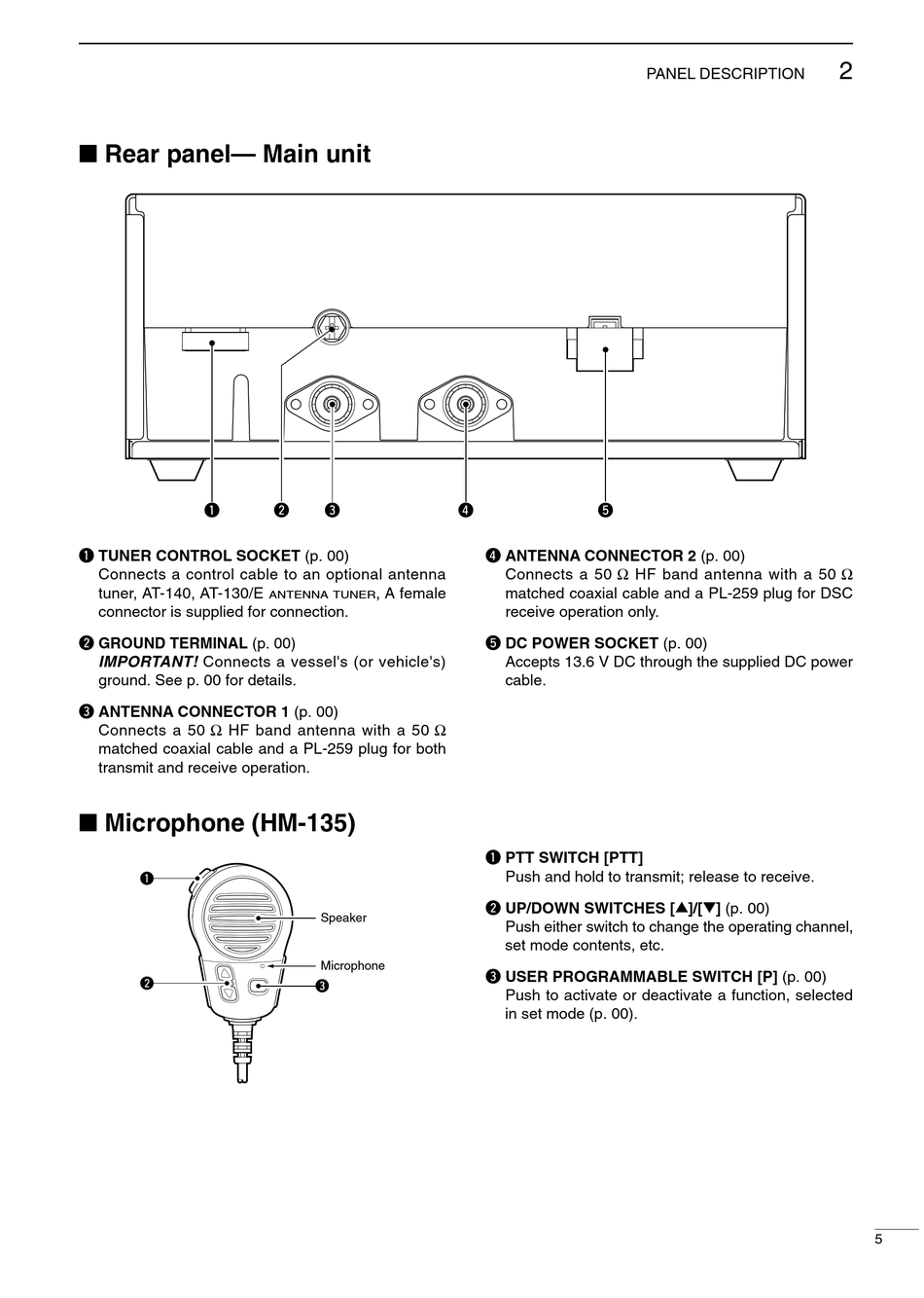

I Rear panel— Main unit
q
q TUNER CONTROL SOCKET (p. 00)
Connects a control cable to an optional antenna
tuner, AT-140, AT-130/E
connector is supplied for connection.
w GROUND TERMINAL (p. 00)
IMPORTANT! Connects a vessel's (or vehicle's)
ground. See p. 00 for details.
e ANTENNA CONNECTOR 1 (p. 00)
Connects a 50 Ω HF band antenna with a 50 Ω
matched coaxial cable and a PL-259 plug for both
transmit and receive operation.
I Microphone (HM-135)
q
w
w e
, A female
ANTENNA TUNER
Speaker
Microphone
e
r t
r ANTENNA CONNECTOR 2 (p. 00)
Connects a 50 Ω HF band antenna with a 50 Ω
matched coaxial cable and a PL-259 plug for DSC
receive operation only.
t DC POWER SOCKET (p. 00)
Accepts 13.6 V DC through the supplied DC power
cable.
q PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
w UP/DOWN SWITCHES [∫ ∫ ]/[√ √ ] (p. 00)
Push either switch to change the operating channel,
set mode contents, etc.
e USER PROGRAMMABLE SWITCH [P] (p. 00)
Push to activate or deactivate a function, selected
in set mode (p. 00).
