Energetics XT 1010 Assembly Manual page 13

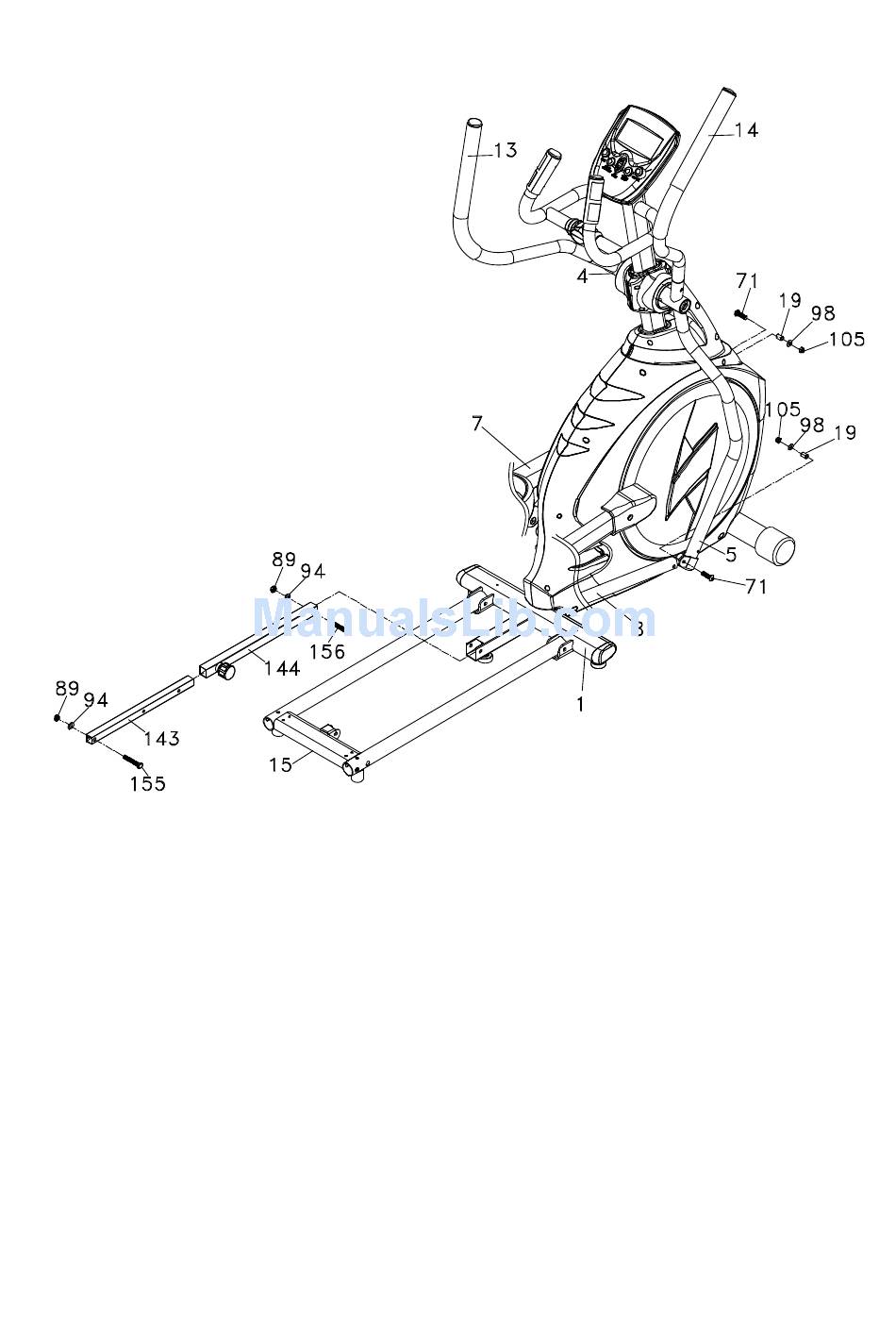

Step 3 Connecting Arm Assembling
1. Use one 5/16" × 32m/m_Hex Head Bolt (71), 5/16" × 20 × 1.5T_Flat Washer (98) and 5/16" ×
7T_Nyloc Nut (105) to secure the Rod End Bearing(23), which is at the end of Lower Handle Bar (L)
(4), by using 13.14m/m_Wrench (111) and 12m/m_Wrench (110). Repeat the procedure for the right
side.
2. Loosen Locking Knob (145), then insert Inner Slide (143) into Outer Slide (144). Use 3/8" × 2"_Button
Head Socket Bolt (156), 3/8" × 19 × 1.5T_Flat Washer (94) and 3/8" × 7T_Nyloc Nut (89) to secure
Outer Slide (144) on the mainframe by using 13.14m/m_Wrench (111) and Combination M5 Allen
Wrench & Phillips Head Screw Driver (108). Then use 3/8" × 1-1/2"_Button Head Socket Bolt (155),
3/8" × 19 × 1.5T_Flat Washer (94) and 3/8" × 7T_Nyloc Nut (89) to secure Inner Slide (143) to Rail
Assembly (15) by using 13.14m/m_Wrench (111) and Combination M5 Allen Wrench & Phillips Head
Screw Driver (108).
13
