Chapter 3 — Vector Network Analyzer

File Menu

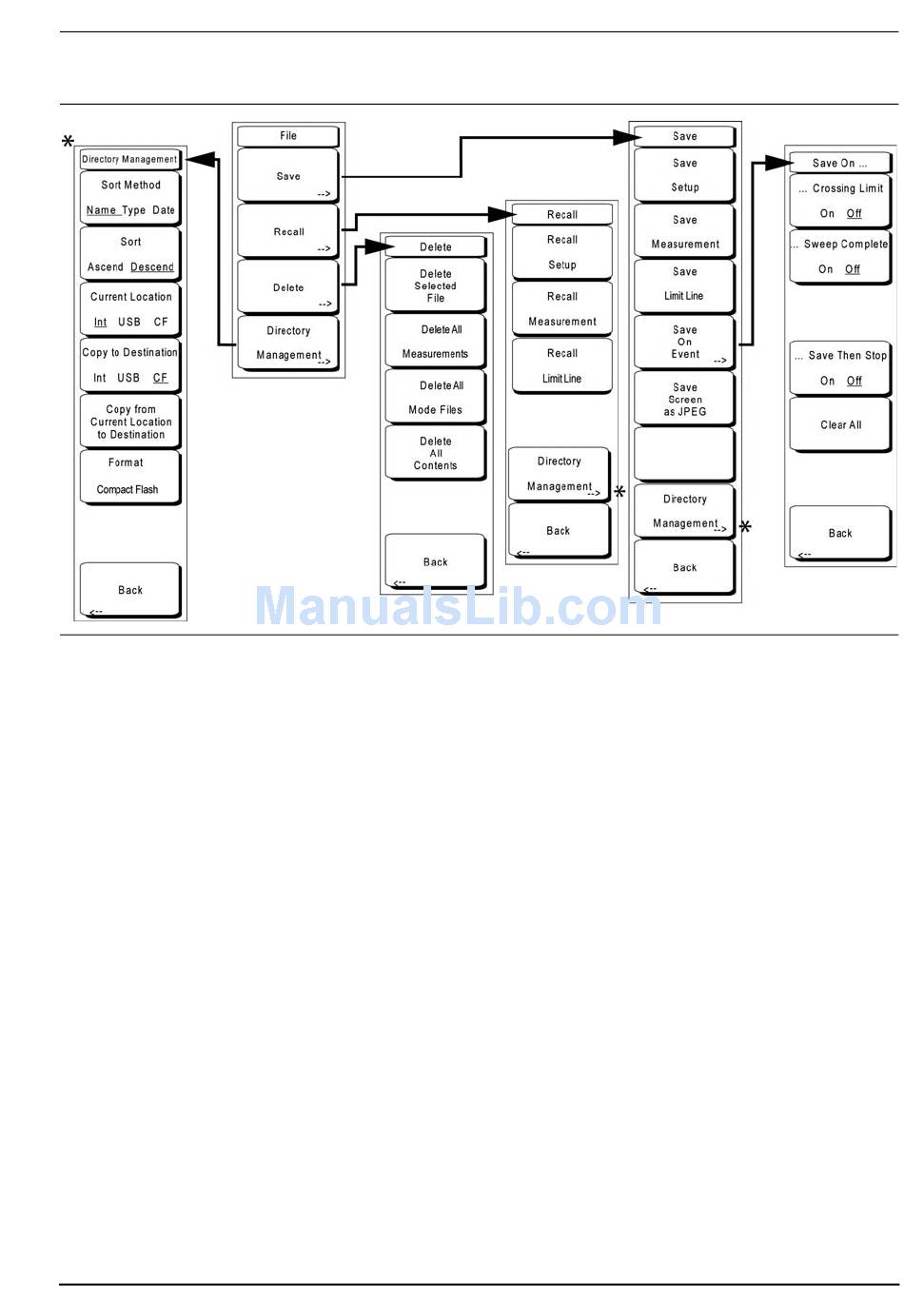

Figure 3-21. File Menu
To access the File Menu, press the
the (7) key or the
File
Save
Measurements may be saved to the internal memory, an external Type-1 Compact
Flash module, or a USB Flash Drive. Anritsu recommends saving to external storage if
a large number of measurements are to be saved. The instrument is shipped with a
Compact Flash module and a USB Flash Drive. In order to hold the entire contents of
the internal memory, external memory devices must be at least 256 MB. Compact
Flash modules greater than 512 MB storage capacity may not function properly.
For information on external memory part numbers, see Section
Optional Accessories" on page
Save Setup
Opens a dialog box to name and save the current operating settings, allowing
them to be recalled later to return the instrument to the state it was in at the
time the setup was saved. The saved setup can be named using the keypad to
select numbers, the rotary knob to highlight a number or character and pressing
the knob to select, or by selecting the soft key for each letter. Use the
select an upper case letter. Use the
cursor position. Press
MS20xxA VNA Master UG 10580-00166 Rev. C
Save/Recall
function hard key.
Save/Recall
1-6.
to save the setup.
Enter
3-7 VNA Key Functions - File Menu
function hard key or press the
directional arrows to move the
Left/ Right
key, then
Shift
"1-8 Standard and
key to
Shift
3-29
