9-5 Freq (Frequency) Menu

9-5 Freq (Frequency) Menu

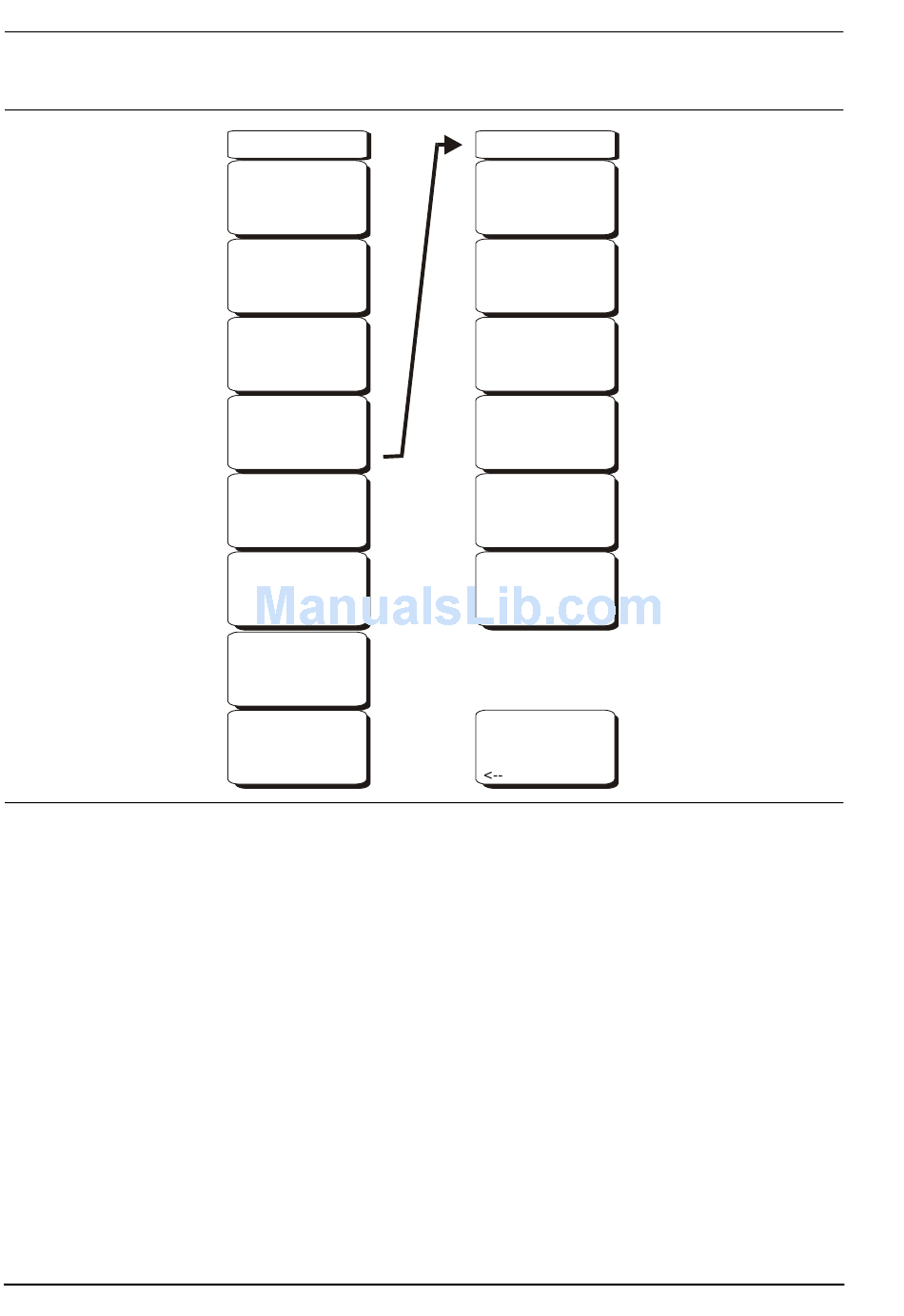

Figure 9-4. Interference Analyzer Mode Freq Menu
The tuning frequency range for the VNA Master can be entered in several different ways
depending on what makes the most sense for the user or for the application. The center
frequency and span can be specified, the start and stop frequencies can be entered, or a signal
standard and channel number can be selected from the built-in list.
9-8
Freq
Center Freq
3.550 GHz
Start Freq
0 Hz
Stop Freq
7.100 GHz
Span
-->
Freq Step
1.000 MHz
Signal
Standard
Channel
-- --
MS20xxA VNA Master UG 10580-00166 Rev. C
Chapter 9 — Interference Analyzer, Option 25
Span
Span
7.100 GHz
Span Up
1-2-5
Span Down
1-2-5
Full Span
Zero Span
Last Span
Back
