Chapter 3 — Vector Network Analyzer

Measurement Menu (Field Menus)

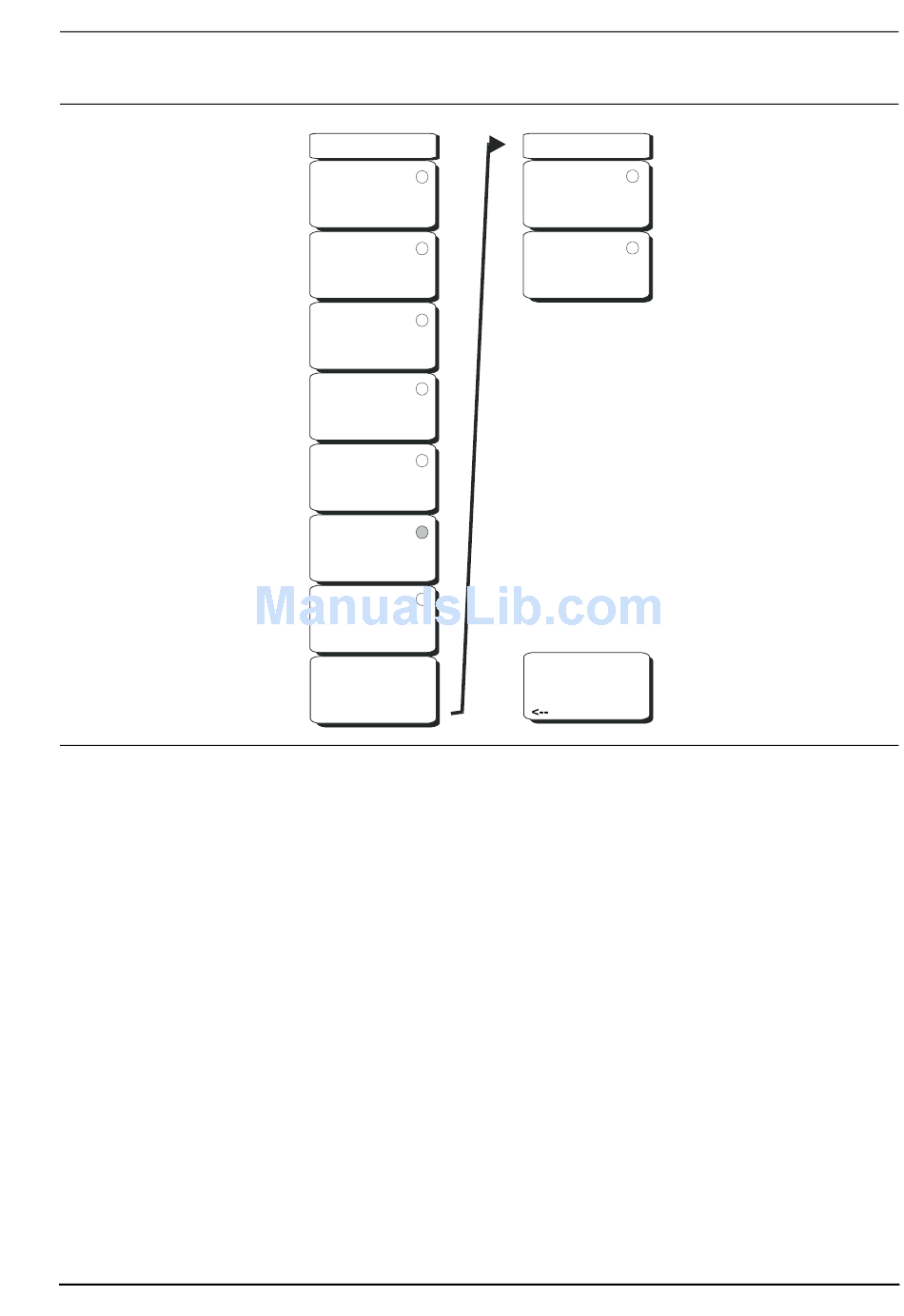

Figure 3-26. Field Measurement Menu
While the VNA Master is in VNA mode and is set for the Field Measurement application
option, press the
Measurement
button. The Measurement menu is used to select the measurement format. For details about
setting this option, refer to
VSWR
Select the
VSWR
Return Loss
Return Loss is used to characterize RF components and systems. The Return Loss
indicates how well the system is matched by taking the ratio of the reflected signal to
the incident signal and measuring the reflected power in dB.
Cable Loss
The cable loss test verifies the signal attenuation level of the cable.
MS20xxA VNA Master UG 10580-00166 Rev. C
3-7 VNA Key Functions - Measurement Menu (Field Menus)
Measurement
VSWR
Return Loss
Cable Loss
DTF
Return Loss
DTF VSWR
2-Port Gain
Smith Chart
Next
-->
function hard key or press the
"System Menu" on page
soft key to view the match in VSWR.
Measurement
1-Port Phase
2-Port Phase
Back
key then the
Shift
3-54.
(4)
Measure
3-45
