2-9 Saving and Recalling Measurements
FILE Menu

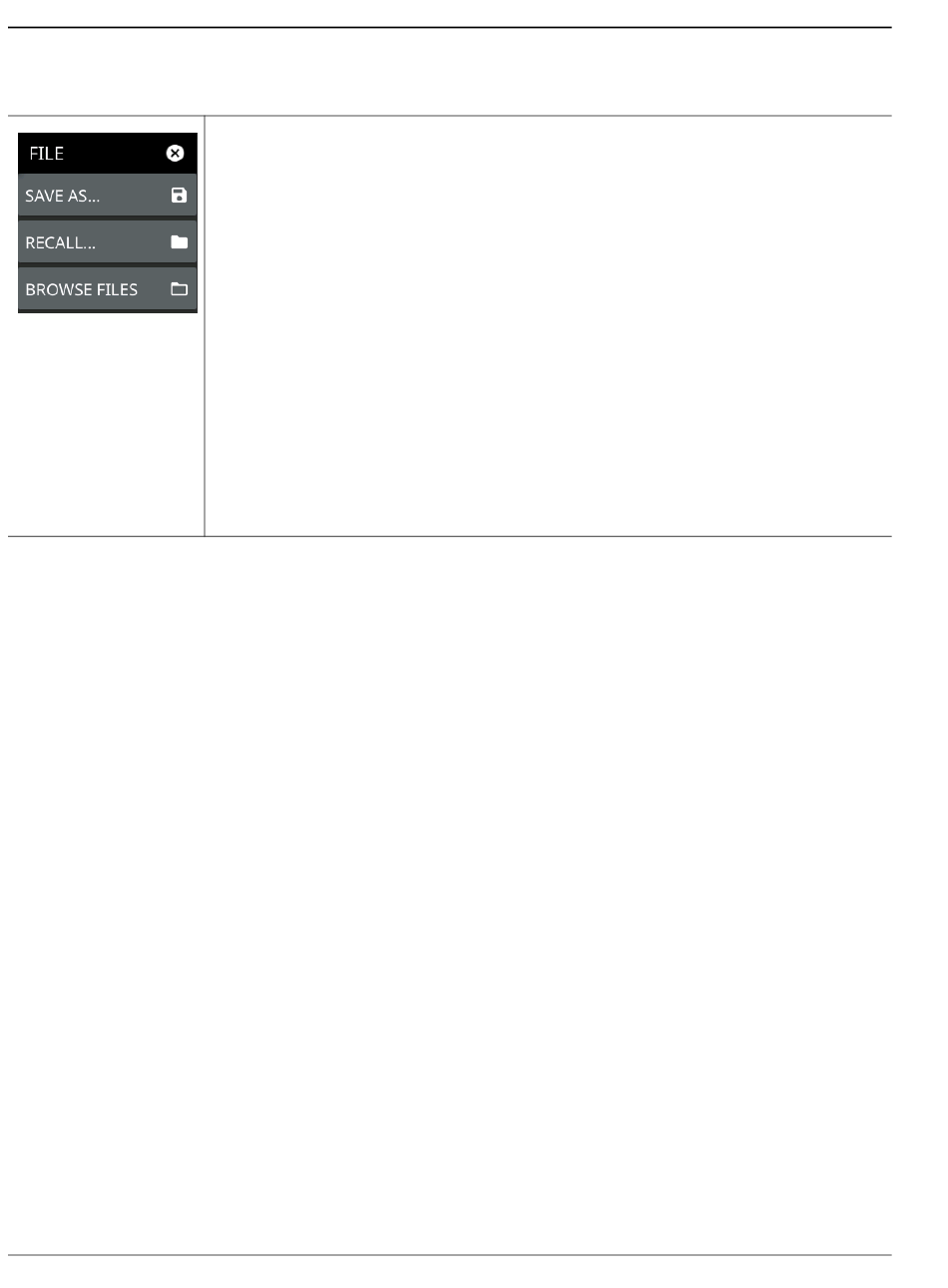

Figure 2-12. FILE Menu
2-10
SAVE AS: Opens the Save dialog to manually enter a file location, enter a file name, and
to set the file type to be saved. Depending on the selected measurement, you can save
the following:
•
Setup: Saves the current instrument setup (stp file type).
•
Measurement: Saves the measurement point data and the current instrument
setup (fmhipm file type).
•
CSV: Saves the point data in comma separated value format (csv file type). This
format is useful for further analysis using other software tools.
•
Screenshot: Saves a screenshot of the current measurement (png file type).
RECALL: Opens the Recall File dialog to retrieve a file from a desired location. Only
supported files will be displayed depending on the currently set measurement. When
measurement point data is recalled, the instrument will change the settings to match the
settings of the saved measurement. The data will be recalled with the measurement in
Hold mode. To exit the recalled data, simply change the measurement mode back to Run
from the SETUP menu.
BROWSE FILES: Opens "File Management" section of Instrument Overview chapter of
the user guide
PN: 10580-00492 Rev. C
High Accuracy Power Meter (Option 19)
High Accuracy Power Meter MG
