Description - Anritsu MS2024A/MS2026A User Manual

Chapter 1 — General Information

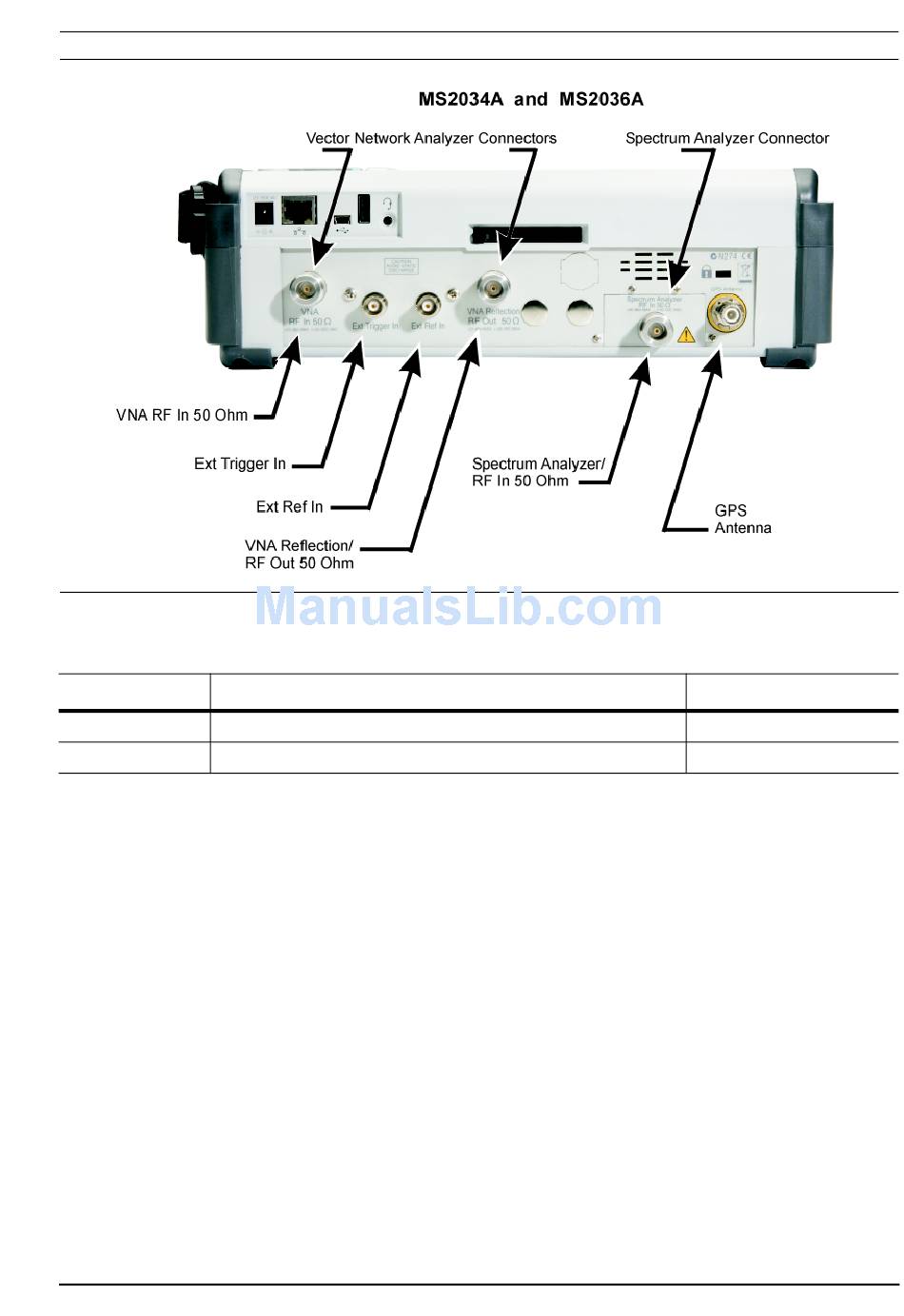

Figure 1-2. MS2034A and MS2036A Connectors
Table 1-2. Instrument Model Identification
Part Number
MS202xA 31.5 x 21.1 x 7.82 cm (12.4 x 8.3 x 3.1 in.)
MS203xA 31.5 x 21.1 x 9.71 cm (12.4 x 8.3 x 3.8 in.)

1-3 Description

The Anritsu VNA Master instruments, starting with the MS202xA series, are portable
handheld vector network analyzers (VNAs) featuring precise performance and essential RF
capabilities. These VNA Master instruments are designed to conduct accurate
vector-corrected 1-port magnitude, phase, and fault location measurements and 1-path 2-port
magnitude, phase, and group delay measurements from 2 MHz to 6 GHz.
The MS203xA series adds spectrum analysis capabilities to the MS202xA series. This one
instrument provides all essential RF capabilities in a portable, high-performance platform.
Table 1-3 on page 1-4
number.
MS20xxA VNA Master UG 10580-00166 Rev. C
summarizes the VNA Master measurement capabilities by model
Size
1-3 Description
Weight
2.9 kg (6.4 lbs)
4 kg (9 lbs)
1-3
