Idler Gear (PL14.5.6)

1. Remove the Tray 4 Guide Assembly Right and Left (page 8-119) (page 8-122).
2.
Remove the Link Actuator (page 8-124).
3.
Remove the Paper Pick Assembly for Tray 4 (page 8-125).
4.

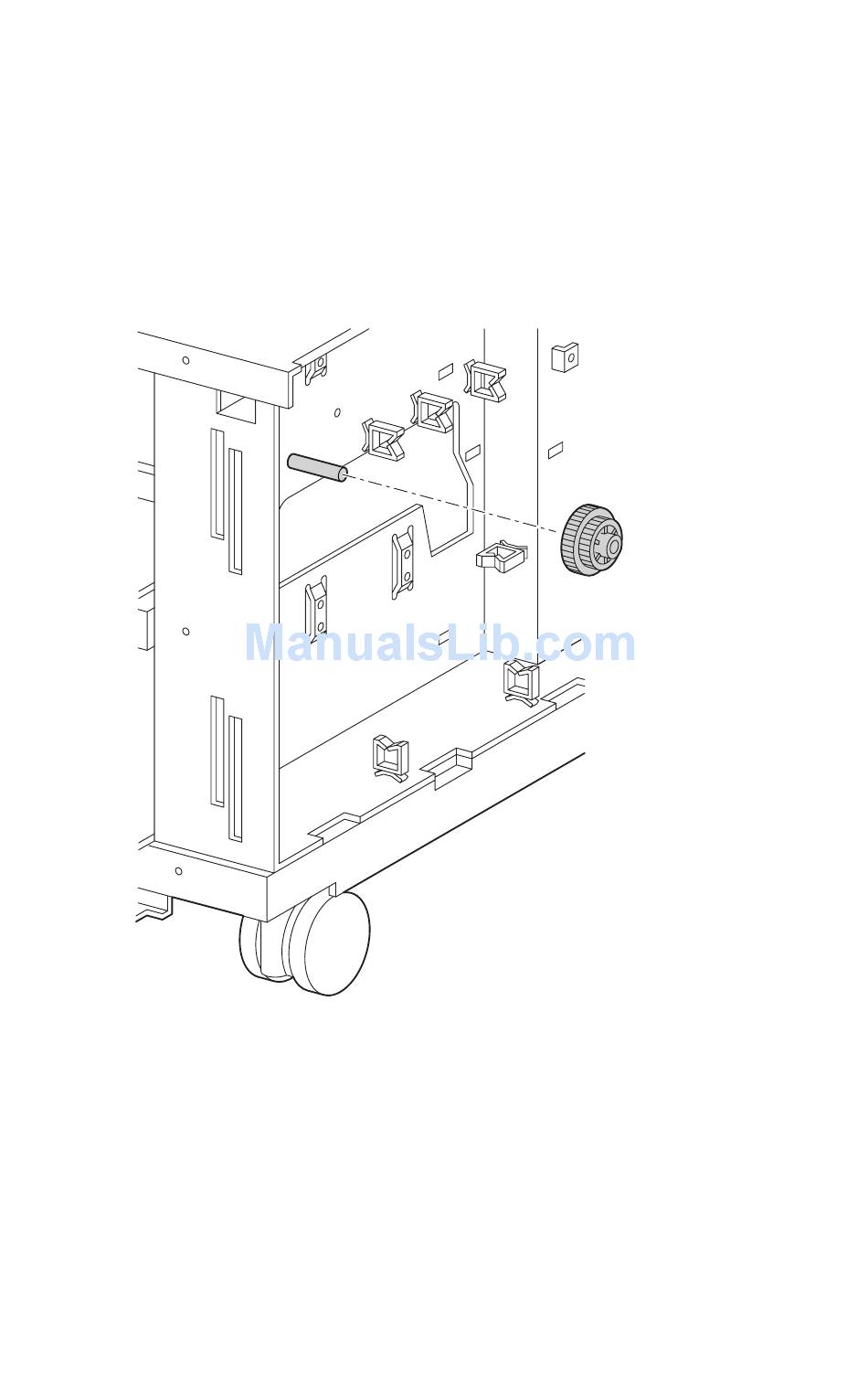

Remove the Gear Idler.
Note
When replacing, the larger side of the gear must face the HCF frame.
