Maintenance Manual > Workflow > Electrical Parts > Replacement of 3042 Slider Relay PCB Assy
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

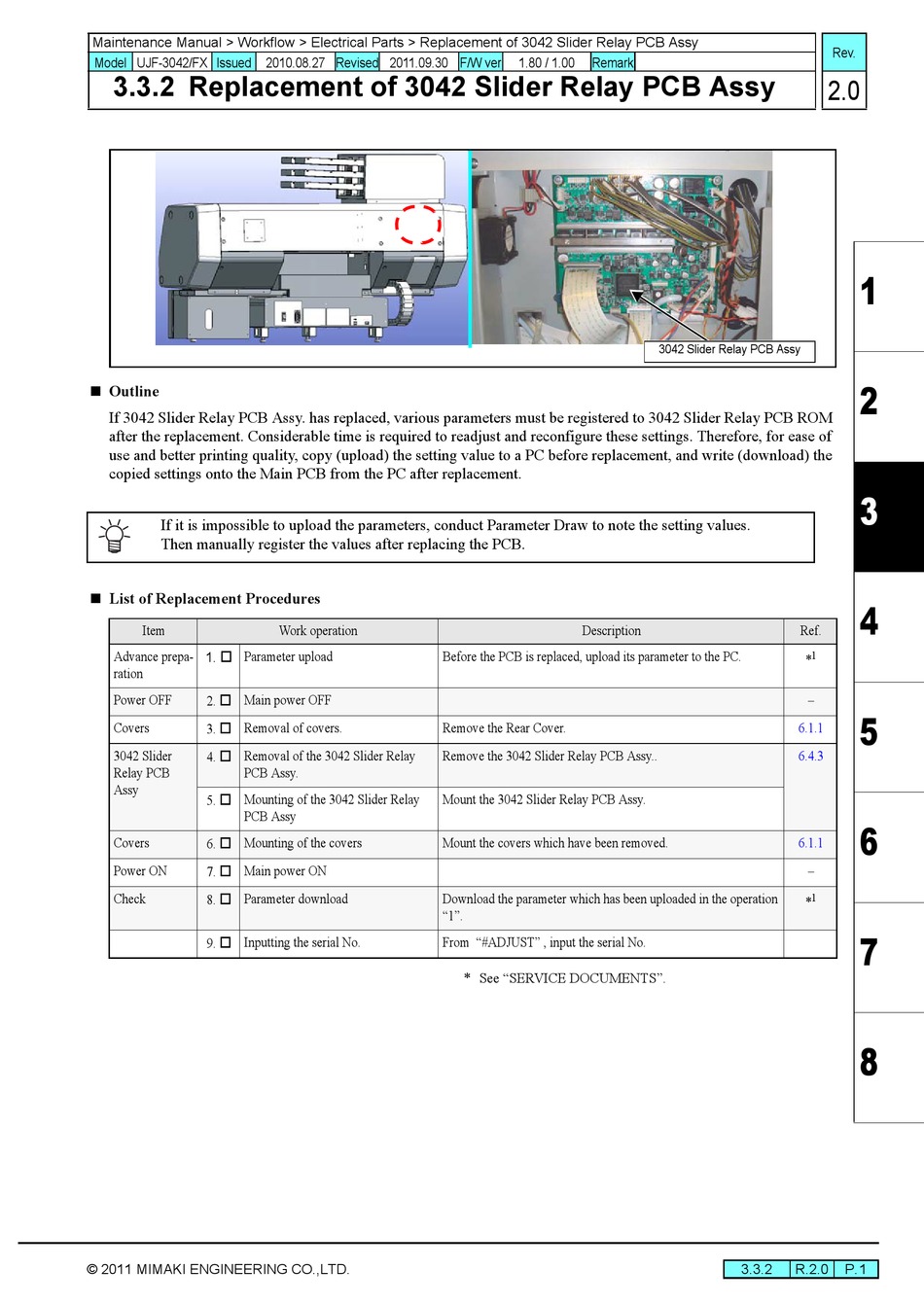

3.3.2 Replacement of 3042 Slider Relay PCB Assy
 Outline
If 3042 Slider Relay PCB Assy. has replaced, various parameters must be registered to 3042 Slider Relay PCB ROM
after the replacement. Considerable time is required to readjust and reconfigure these settings. Therefore, for ease of
use and better printing quality, copy (upload) the setting value to a PC before replacement, and write (download) the
copied settings onto the Main PCB from the PC after replacement.
If it is impossible to upload the parameters, conduct Parameter Draw to note the setting values.
Then manually register the values after replacing the PCB.
 List of Replacement Procedures
Item
Advance prepa-
Parameter upload
1.
ration
Power OFF
Main power OFF
2.
Covers
Removal of covers.
3.
3042 Slider
Removal of the 3042 Slider Relay
4.
Relay PCB
PCB Assy.
Assy
Mounting of the 3042 Slider Relay
5.
PCB Assy
Covers
Mounting of the covers
6.
Power ON
Main power ON
7.
Check
Parameter download
8.
Inputting the serial No.
9.
© 2011 MIMAKI ENGINEERING CO.,LTD.
Work operation
Before the PCB is replaced, upload its parameter to the PC.
Remove the Rear Cover.
Remove the 3042 Slider Relay PCB Assy..
Mount the 3042 Slider Relay PCB Assy.
Mount the covers which have been removed.
Download the parameter which has been uploaded in the operation
"1".
From "#ADJUST" , input the serial No.
1.80 / 1.00
Remark
Description
* See "SERVICE DOCUMENTS".
Rev.
2.0
3042 Slider Relay PCB Assy
Ref.
1
*
6.1.1
6.4.3
6.1.1
1
*
3.3.2
R.2.0
1
2
3
4
5
6
7
8
P.1
