Maintenance Manual > Electrical Parts > Circuit Board Specifications > Encorder PCB Assy.
Model UJF-3042/FX Issued 2010.08.27 Revised 2011.09.30 F/W ver

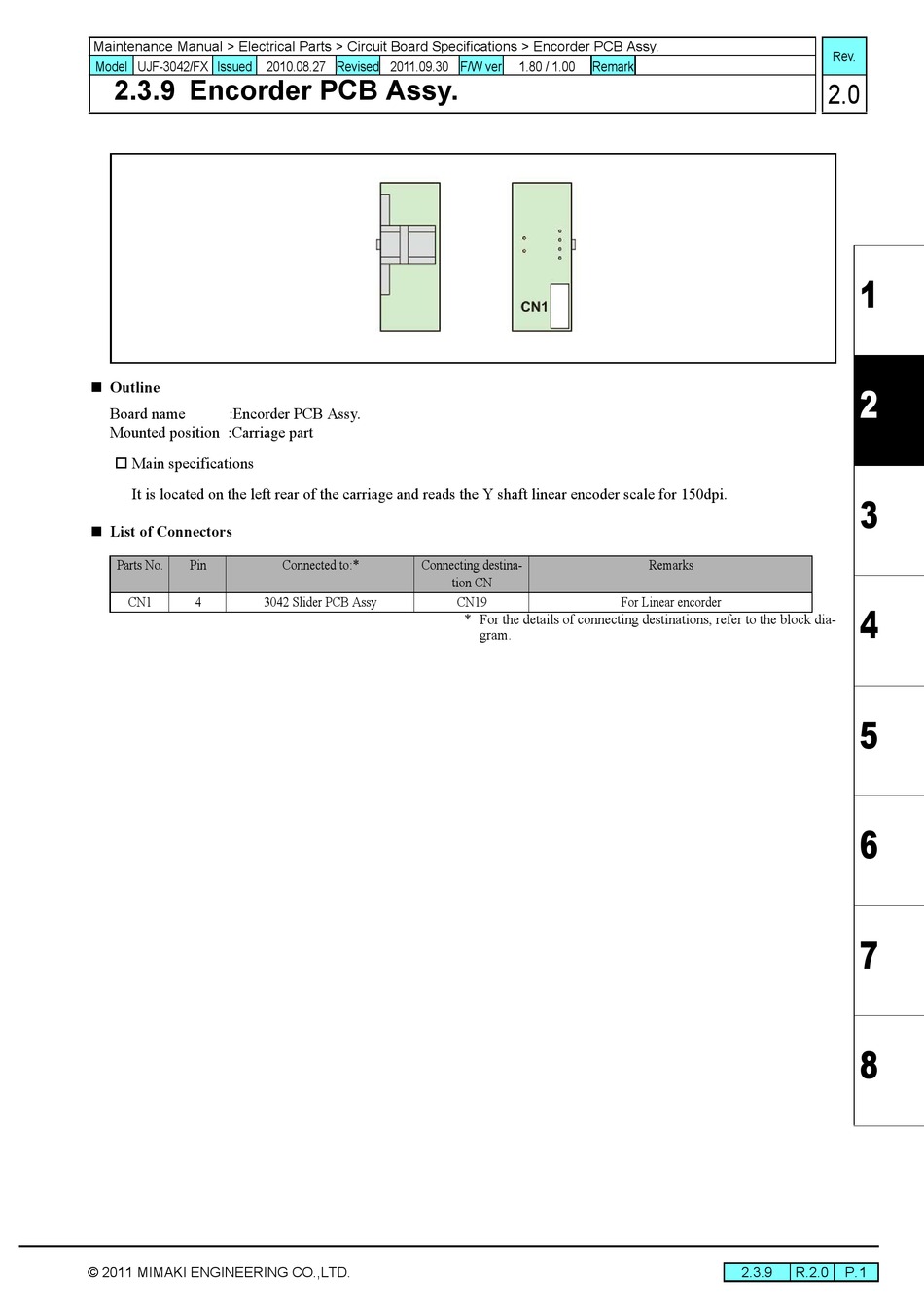

2.3.9 Encorder PCB Assy.
 Outline
Board name :Encorder PCB Assy.
Mounted position :Carriage part
 Main specifications
It is located on the left rear of the carriage and reads the Y shaft linear encoder scale for 150dpi.
 List of Connectors

Parts No.

Pin

CN1

4
© 2011 MIMAKI ENGINEERING CO.,LTD.
Connected to:* Connecting destina-
3042 Slider PCB Assy
1.80 / 1.00 Remark
tion CN
CN19 For Linear encorder
* For the details of connecting destinations, refer to the block dia-
gram.
Remarks
2.3.9 R.2.0
Rev.
2.0
1
2
3
4
5
6
7
8
P.1
