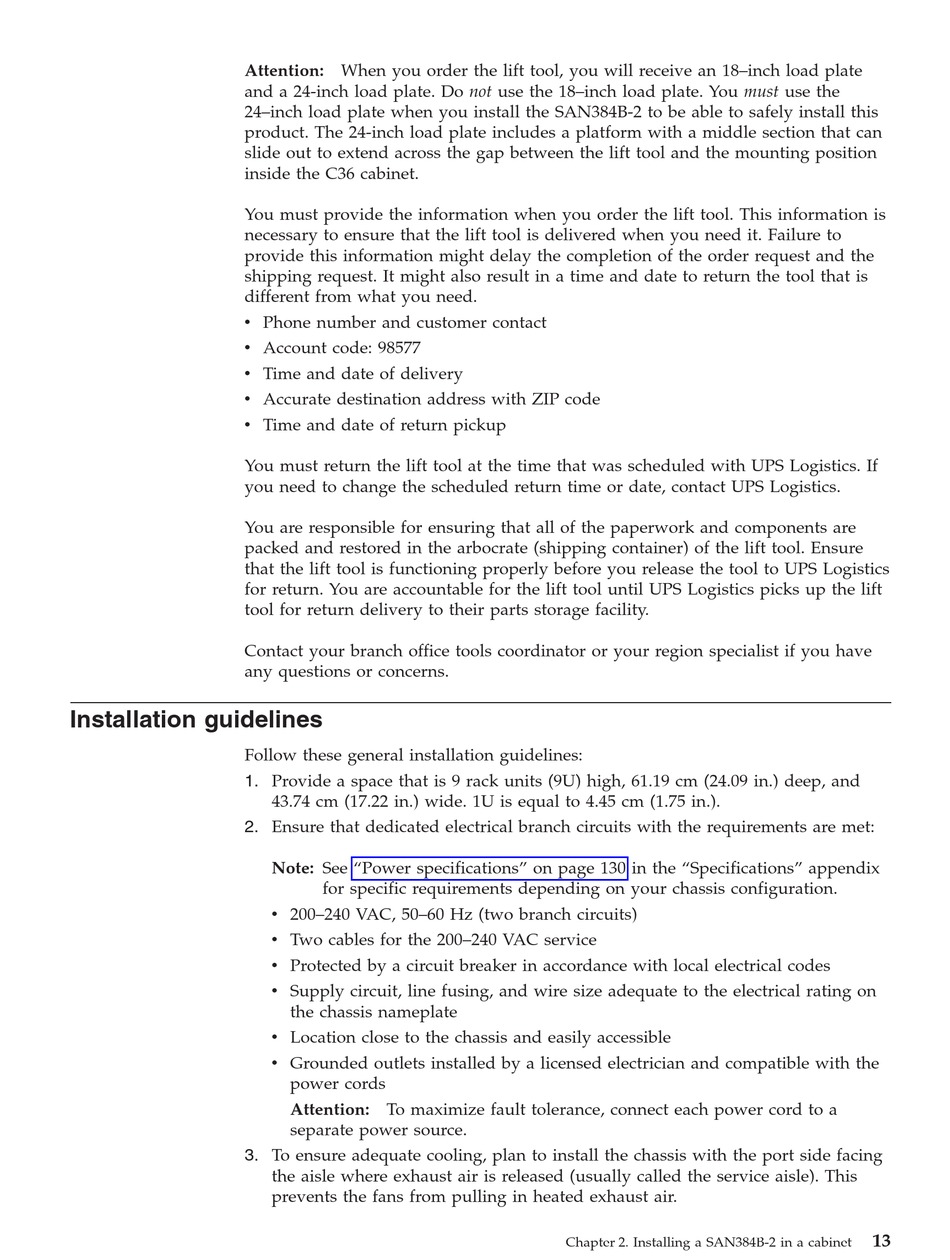

Attention: When you order the lift tool, you will receive an 18–inch load plate
and a 24-inch load plate. Do not use the 18–inch load plate. You must use the
24–inch load plate when you install the SAN384B-2 to be able to safely install this
product. The 24-inch load plate includes a platform with a middle section that can
slide out to extend across the gap between the lift tool and the mounting position
inside the C36 cabinet.
You must provide the information when you order the lift tool. This information is
necessary to ensure that the lift tool is delivered when you need it. Failure to
provide this information might delay the completion of the order request and the
shipping request. It might also result in a time and date to return the tool that is
different from what you need.
v Phone number and customer contact
v Account code: 98577
v Time and date of delivery
v Accurate destination address with ZIP code
v Time and date of return pickup
You must return the lift tool at the time that was scheduled with UPS Logistics. If
you need to change the scheduled return time or date, contact UPS Logistics.
You are responsible for ensuring that all of the paperwork and components are
packed and restored in the arbocrate (shipping container) of the lift tool. Ensure
that the lift tool is functioning properly before you release the tool to UPS Logistics
for return. You are accountable for the lift tool until UPS Logistics picks up the lift
tool for return delivery to their parts storage facility.
Contact your branch office tools coordinator or your region specialist if you have
any questions or concerns.

Installation guidelines

Follow these general installation guidelines:
1. Provide a space that is 9 rack units (9U) high, 61.19 cm (24.09 in.) deep, and
2. Ensure that dedicated electrical branch circuits with the requirements are met:
3. To ensure adequate cooling, plan to install the chassis with the port side facing
43.74 cm (17.22 in.) wide. 1U is equal to 4.45 cm (1.75 in.).
Note: See "Power specifications" on page 130 in the "Specifications" appendix
for specific requirements depending on your chassis configuration.
v 200–240 VAC, 50–60 Hz (two branch circuits)
v Two cables for the 200–240 VAC service
v Protected by a circuit breaker in accordance with local electrical codes
v Supply circuit, line fusing, and wire size adequate to the electrical rating on
the chassis nameplate
v Location close to the chassis and easily accessible
v Grounded outlets installed by a licensed electrician and compatible with the
power cords
Attention: To maximize fault tolerance, connect each power cord to a
separate power source.
the aisle where exhaust air is released (usually called the service aisle). This
prevents the fans from pulling in heated exhaust air.
Chapter 2. Installing a SAN384B-2 in a cabinet
13
