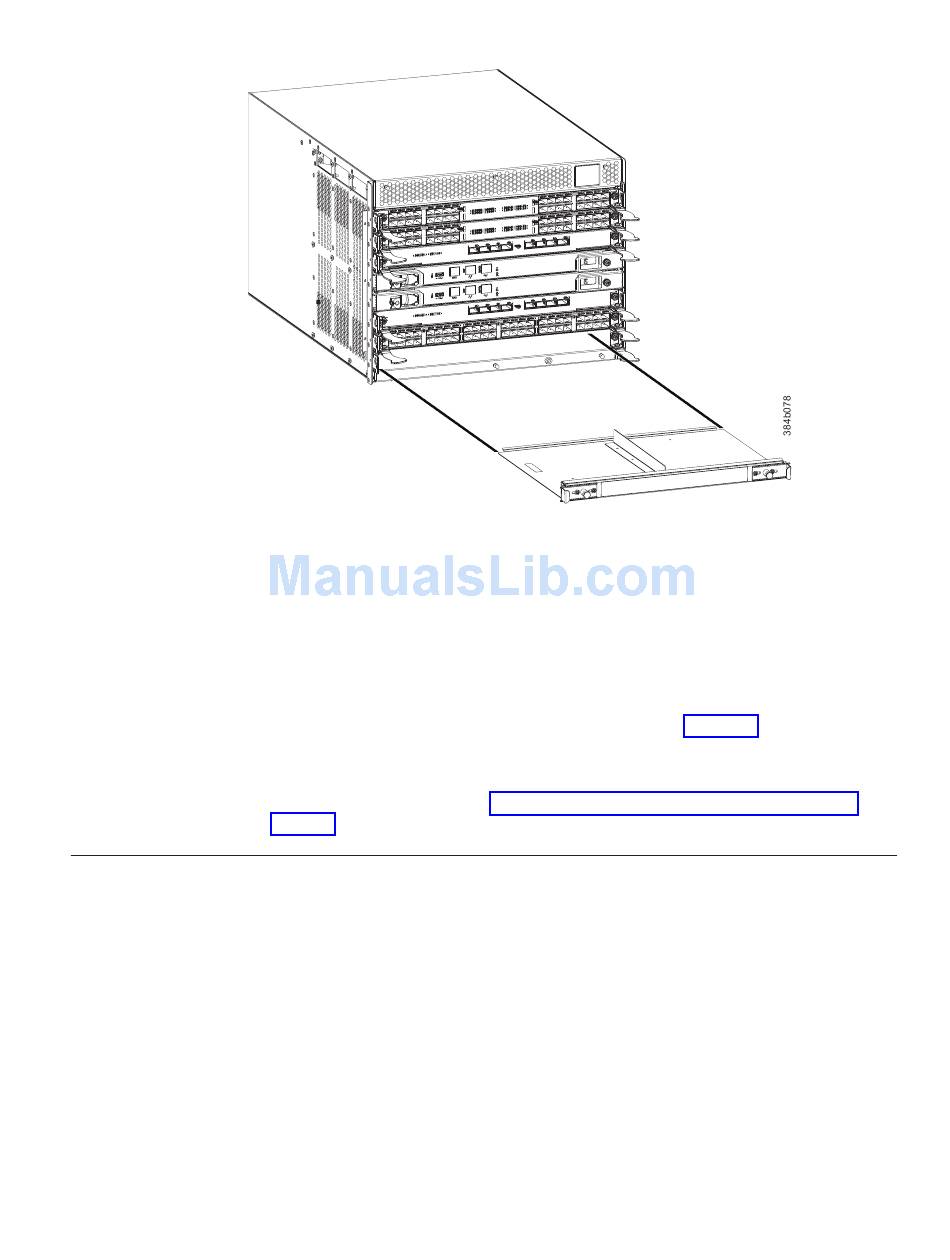

Figure 34. Filler panel removal and installation

Installing a filler panel

Attention: Do not leave a slot empty. This will adversely affect cooling of the
chassis.
Complete the steps to install a filler panel.
1. Orient the filler panel in front of the empty slot (see Figure 34).
2. Slide the filler panel into the slot until it is firmly seated.
3. Tighten the thumbscrew(s).
4. Install the chassis door (see "Removing and installing the chassis door" on
page 67).

Removing and installing a CP8 control processor blade

This section describes how to remove and install a control processor (CP8) blade.
Each SAN384B-2 has two CP8 blades, located in slot 4 and slot 5.
Note: Chassis slots are numbered from 1-8 from bottom to top, viewed from the
port side of the chassis.
73
Chapter 5. Removing and installing components
