Table 19. System architecture (continued)
Media types
Fabric services
Inter-chassis link (ICL/QSFP)

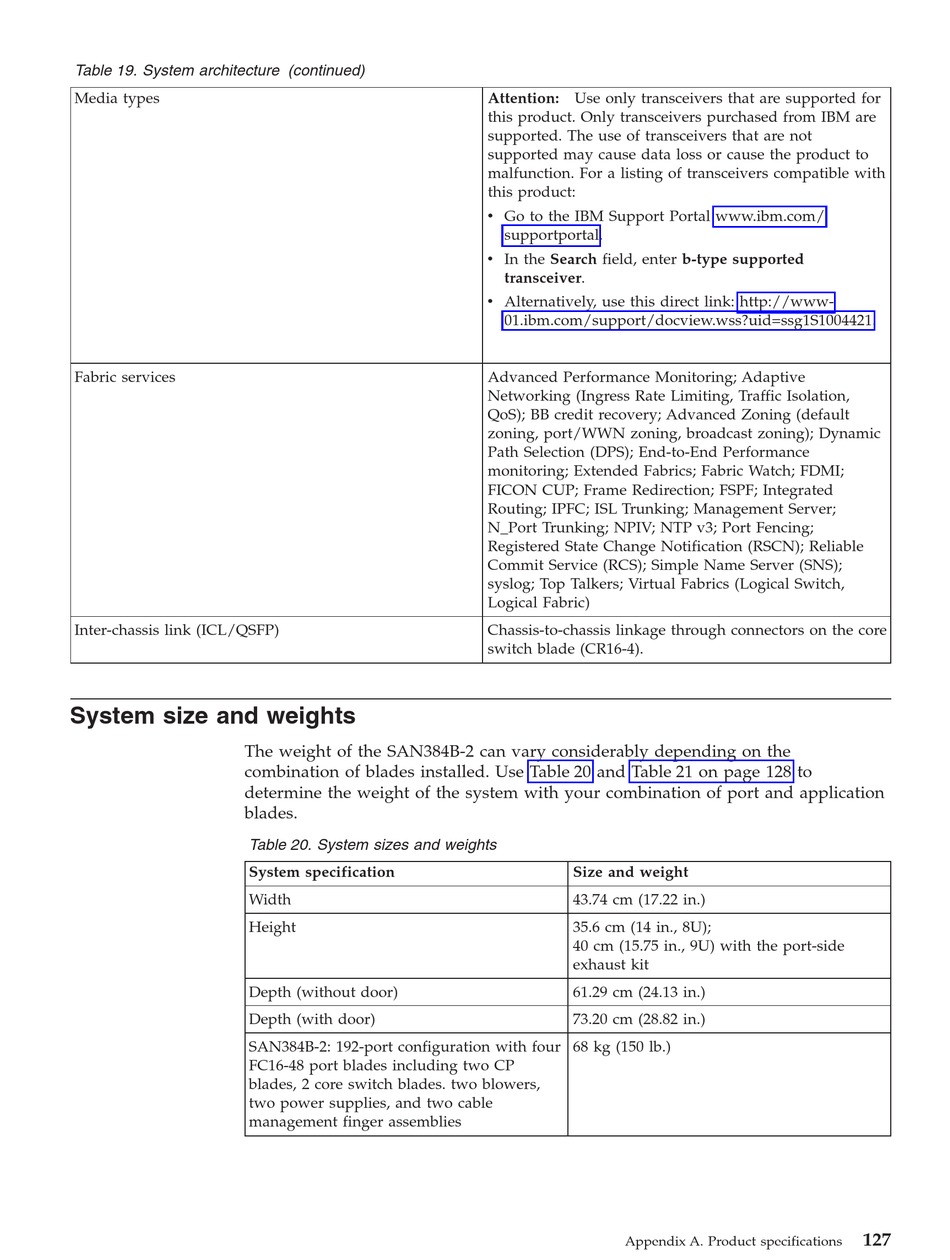

System size and weights

The weight of the SAN384B-2 can vary considerably depending on the
combination of blades installed. Use Table 20 and Table 21 on page 128 to
determine the weight of the system with your combination of port and application
blades.
Table 20. System sizes and weights
System specification
Width
Height
Depth (without door)
Depth (with door)
SAN384B-2: 192-port configuration with four
FC16-48 port blades including two CP
blades, 2 core switch blades. two blowers,
two power supplies, and two cable
management finger assemblies
Attention: Use only transceivers that are supported for
this product. Only transceivers purchased from IBM are
supported. The use of transceivers that are not
supported may cause data loss or cause the product to
malfunction. For a listing of transceivers compatible with
this product:
v Go to the IBM Support Portal www.ibm.com/
supportportal.
v In the Search field, enter b-type supported
transceiver.
v Alternatively, use this direct link: http://www-
01.ibm.com/support/docview.wss?uid=ssg1S1004421.
Advanced Performance Monitoring; Adaptive
Networking (Ingress Rate Limiting, Traffic Isolation,
QoS); BB credit recovery; Advanced Zoning (default
zoning, port/WWN zoning, broadcast zoning); Dynamic
Path Selection (DPS); End-to-End Performance
monitoring; Extended Fabrics; Fabric Watch; FDMI;
FICON CUP; Frame Redirection; FSPF; Integrated
Routing; IPFC; ISL Trunking; Management Server;
N_Port Trunking; NPIV; NTP v3; Port Fencing;
Registered State Change Notification (RSCN); Reliable
Commit Service (RCS); Simple Name Server (SNS);
syslog; Top Talkers; Virtual Fabrics (Logical Switch,
Logical Fabric)
Chassis-to-chassis linkage through connectors on the core
switch blade (CR16-4).
Size and weight
43.74 cm (17.22 in.)
35.6 cm (14 in., 8U);
40 cm (15.75 in., 9U) with the port-side
exhaust kit
61.29 cm (24.13 in.)
73.20 cm (28.82 in.)
68 kg (150 lb.)
Appendix A. Product specifications
127
