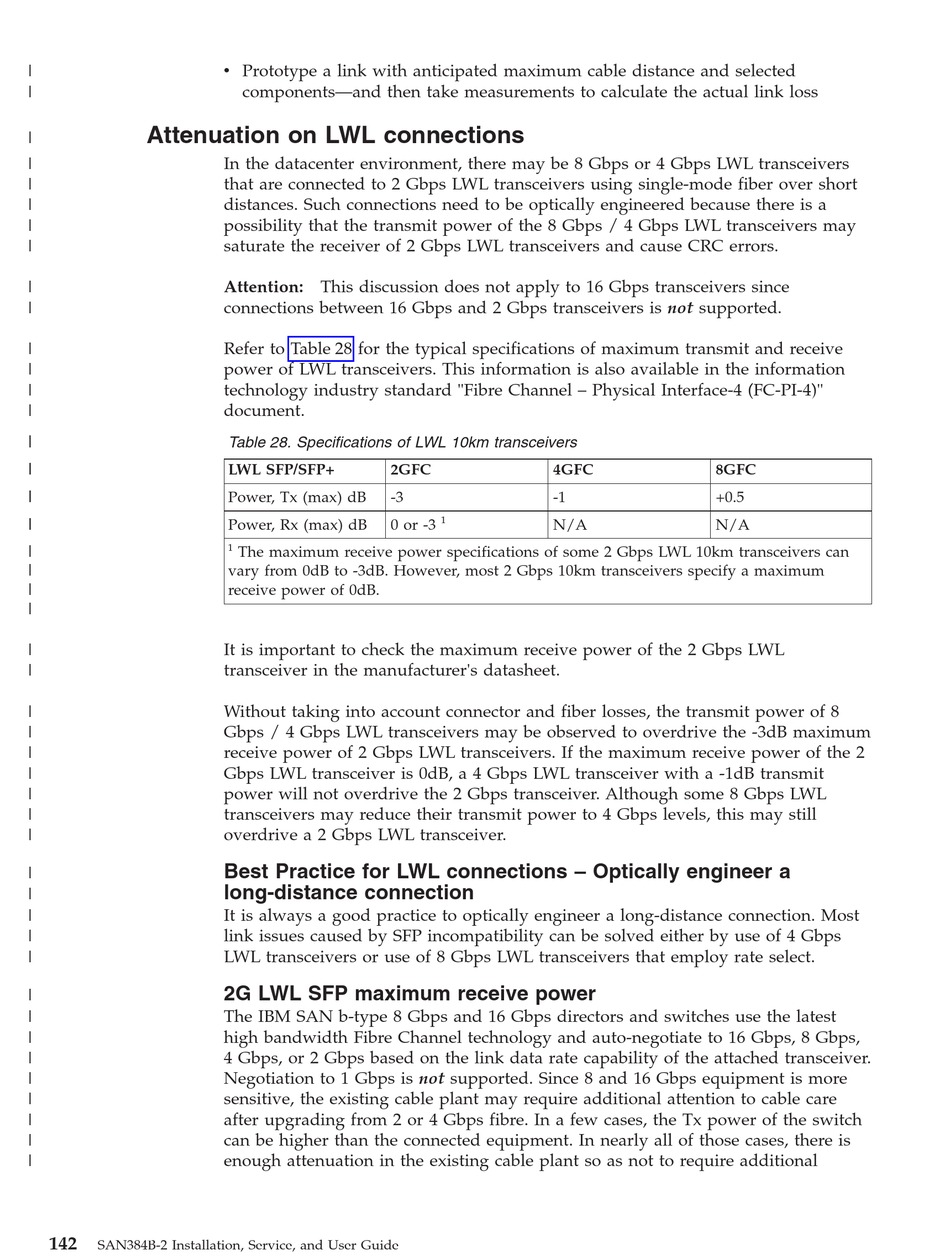

Attenuation on LWL connections

|
|
|
|
|
|
|
|
|
|
|
|
| |
| | | |
| | | |
| | | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
142
SAN384B-2 Installation, Service, and User Guide
v Prototype a link with anticipated maximum cable distance and selected
components—and then take measurements to calculate the actual link loss
In the datacenter environment, there may be 8 Gbps or 4 Gbps LWL transceivers
that are connected to 2 Gbps LWL transceivers using single-mode fiber over short
distances. Such connections need to be optically engineered because there is a
possibility that the transmit power of the 8 Gbps / 4 Gbps LWL transceivers may
saturate the receiver of 2 Gbps LWL transceivers and cause CRC errors.
Attention: This discussion does not apply to 16 Gbps transceivers since
connections between 16 Gbps and 2 Gbps transceivers is not supported.
Refer to Table 28 for the typical specifications of maximum transmit and receive
power of LWL transceivers. This information is also available in the information
technology industry standard "Fibre Channel – Physical Interface-4 (FC-PI-4)"
document.
Table 28. Specifications of LWL 10km transceivers
LWL SFP/SFP+ 2GFC
Power, Tx (max) dB -3
Power, Rx (max) dB 0 or -3
1
The maximum receive power specifications of some 2 Gbps LWL 10km transceivers can
vary from 0dB to -3dB. However, most 2 Gbps 10km transceivers specify a maximum
receive power of 0dB.
It is important to check the maximum receive power of the 2 Gbps LWL
transceiver in the manufacturer's datasheet.
Without taking into account connector and fiber losses, the transmit power of 8
Gbps / 4 Gbps LWL transceivers may be observed to overdrive the -3dB maximum
receive power of 2 Gbps LWL transceivers. If the maximum receive power of the 2
Gbps LWL transceiver is 0dB, a 4 Gbps LWL transceiver with a -1dB transmit
power will not overdrive the 2 Gbps transceiver. Although some 8 Gbps LWL
transceivers may reduce their transmit power to 4 Gbps levels, this may still
overdrive a 2 Gbps LWL transceiver.
Best Practice for LWL connections – Optically engineer a
long-distance connection
It is always a good practice to optically engineer a long-distance connection. Most
link issues caused by SFP incompatibility can be solved either by use of 4 Gbps
LWL transceivers or use of 8 Gbps LWL transceivers that employ rate select.
2G LWL SFP maximum receive power
The IBM SAN b-type 8 Gbps and 16 Gbps directors and switches use the latest
high bandwidth Fibre Channel technology and auto-negotiate to 16 Gbps, 8 Gbps,
4 Gbps, or 2 Gbps based on the link data rate capability of the attached transceiver.
Negotiation to 1 Gbps is not supported. Since 8 and 16 Gbps equipment is more
sensitive, the existing cable plant may require additional attention to cable care
after upgrading from 2 or 4 Gbps fibre. In a few cases, the Tx power of the switch
can be higher than the connected equipment. In nearly all of those cases, there is
enough attenuation in the existing cable plant so as not to require additional
4GFC
-1
1
N/A
8GFC
+0.5
N/A
