Chapter 1—Introduction

EGX200 Components

EGX200 COMPONENTS

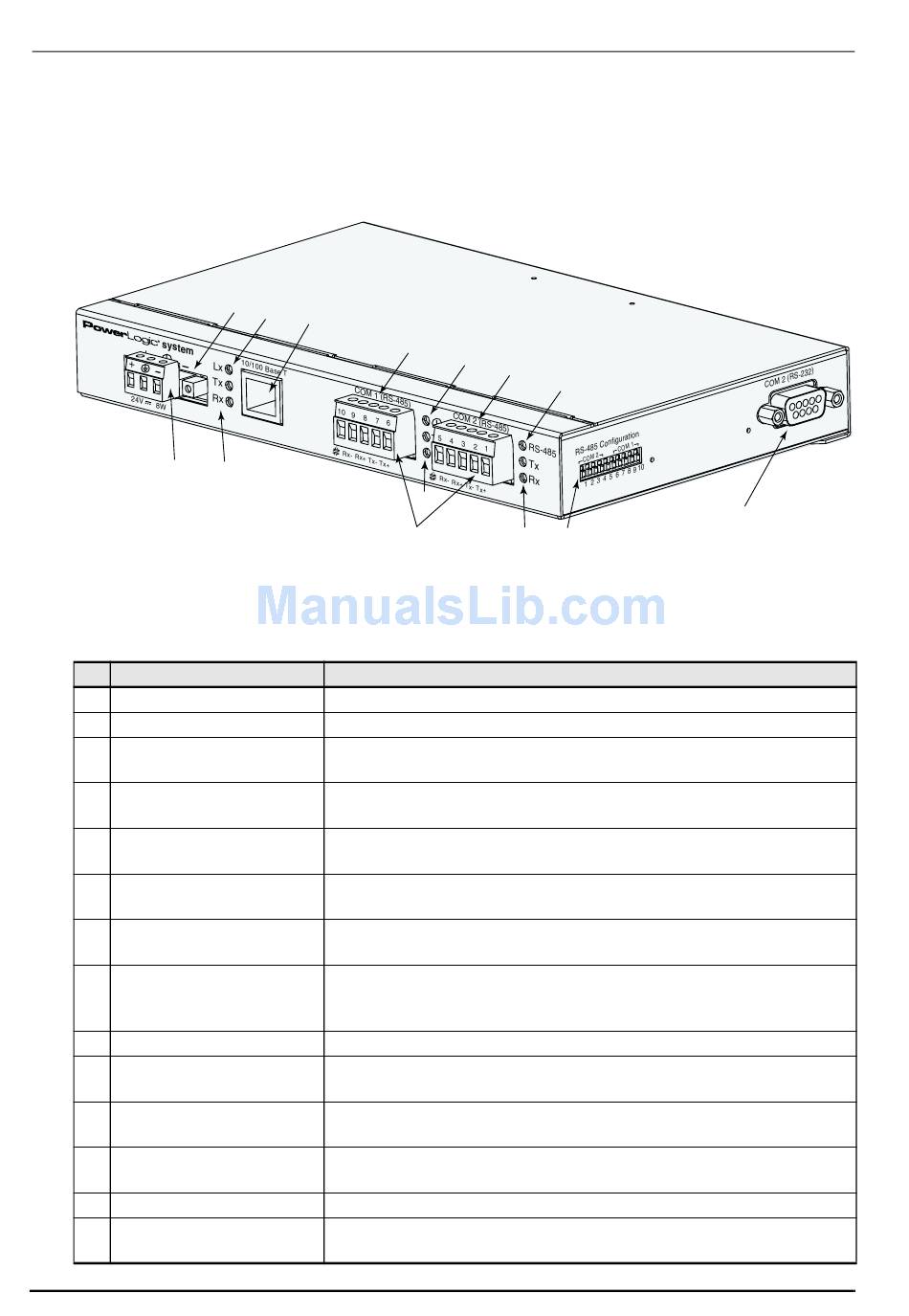

Figure 1–2 shows the components of the EGX200. Table 1–1 identifies those
components and explains their functions.
2
Figure 1–2: Identifying EGX200 components
Table 1–1: EGX200 Components
No. Item
1 Control Power Connection 24 Vdc connection for control power to the EGX200.
2 Control Power Connector
3 Ethernet Link LED
4 Ethernet Port LEDs
10/100 Base T port
5
(twisted pair)
6 COM 1 (RS-485)
7 Power LED
8 COM 1 LEDs
9 RS-485 Connectors
10 COM 2 (RS-485)
11 RS-485 LED
12 COM 2 LEDs
13 COM 2 (RS-232)
14 Dip Switches
4
1
3
5
4
3-position male terminal block for 24 Vdc control power connection.
LED illuminates yellow steadily when there is a proper Ethernet
physical connection.
A yellow LED illuminates when the EGX200 is receiving data (Rx).
A green LED illuminates when the EGX200 is transmitting data (Tx).
This port drives a twisted pair Cat. 5 cable up to approximately 328 ft
(100 m). This port has a standard RJ-45 connector.
RS-485 port 1 is used for connecting POWERLOGIC, JBUS, or
MODBUS daisy-chained devices.
This green LED illuminates steadily when minimum control power is
applied to the unit.
The yellow LED illuminates when COM 1 is receiving data (Rx); the
green LED illuminates when COM 1 is transmitting data (Tx). Both
LEDs flicker intermittently if there is a configuration error.
5-position female terminal block for RS-485 ports 1 and 2.
RS-485 port 2 is used for connecting POWERLOGIC, JBUS, or
MODBUS daisy-chained devices.
If using COM 2 as RS-485, the RS-485 LED illuminates green; if using
COM 2 as RS-232, the RS-485 LED is not lit.
The yellow LED illuminates when COM 2 is receiving data (Rx); the
green LED illuminates when COM 2 is transmitting data (Tx).
DB-9 port is used for initial network setup or for serial communication.
Provide custom configuration options for COM 1 and COM 2 biasing
and termination.
6
7
10
11
8
9 12 14
Description
© 2001 Schneider Electric All Rights Reserved
63230-314-200/A2
8/2001
13
