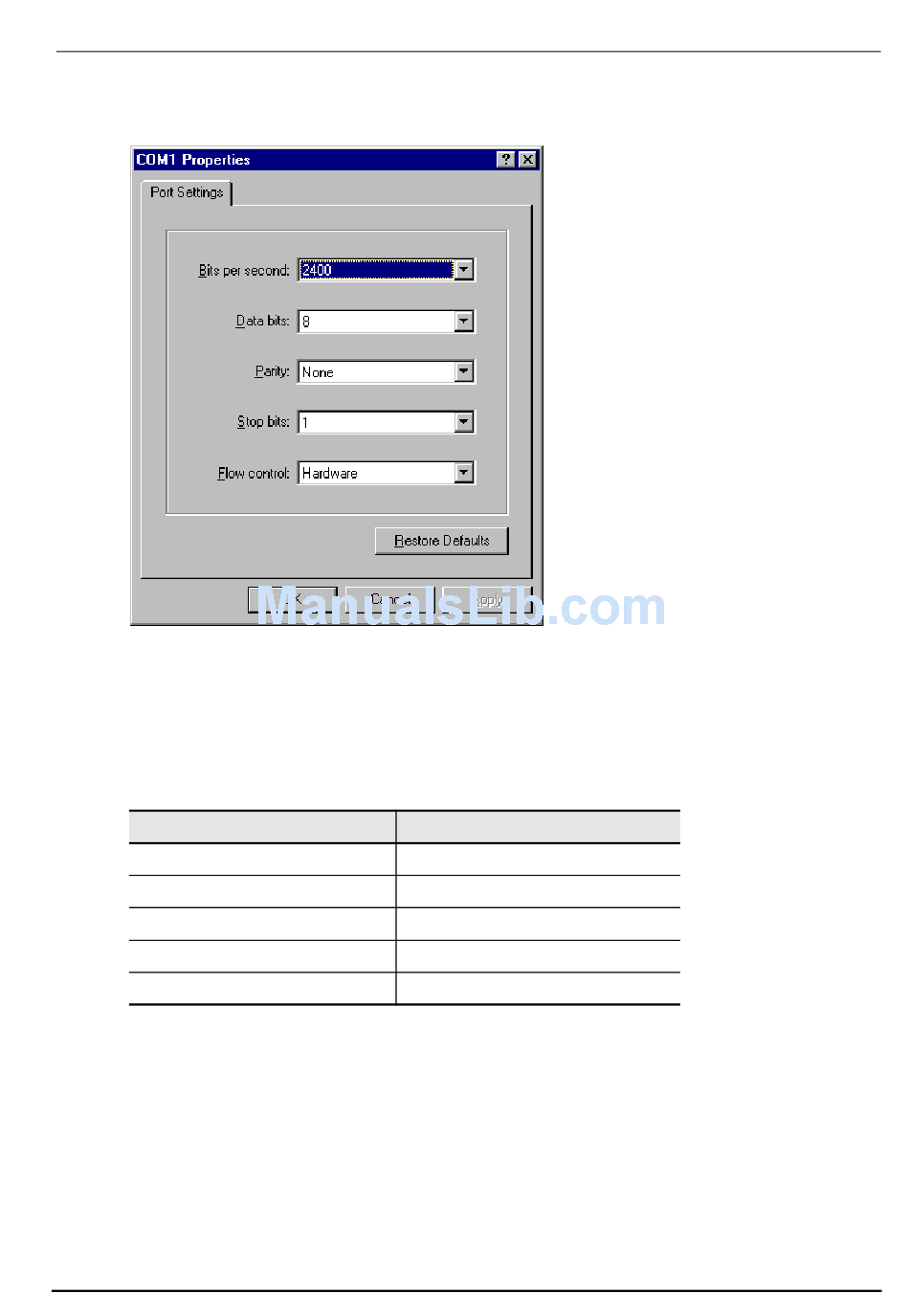

The COM port properties page displays, as shown in Figure 3–11.
Figure 3–11: HyperTerminal COM Port Properties dialog box
5. In this dialog box, set the values listed in Table 3–3.
Table 3–3: Communications Settings Parameters
Settings
Baud Rate
Data Bits
Parity
Stop Bits
Flow Control
You are now ready to enter the EGX200 setup utility.
