PowerLogic EGX200 Instruction Bulletin page 34

Chapter 5—Operation
Accessing the EGX200 Over a Network
The EGX200 Login page displays, as shown in Figure 5–2.

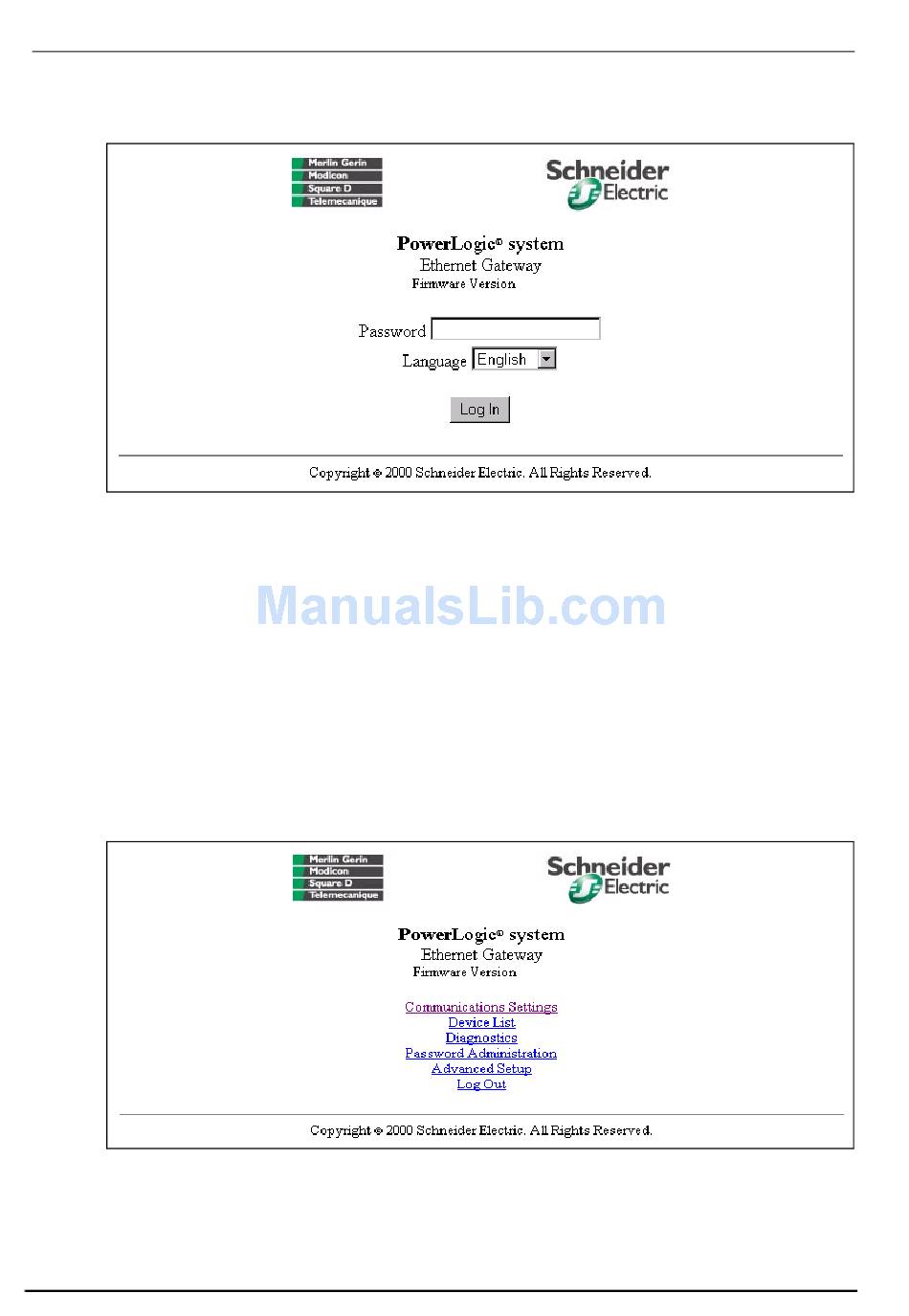

Figure 5–2: EGX200 Login page
3. For the Language, select the desired language from the pull-down menu.
4. Log into the EGX200, using one of the four defined passwords, and then click Log
In. See "Password Administration" on page 36 for more information.
NOTE: The default password is admin (all lower case). For system security, if you
are the administrator, we recommend that you change the administrator password
at this time (see "Password Administration" on page 36).
The EGX200 Home page displays (see Figure 5–3). The list of available options
depends on the level of access assigned in the password administration option.
Figure 5–3: EGX200 Home page
30
X.XXX
X.XXX
© 2001 Schneider Electric All Rights Reserved
63230-314-200/A2
8/2001
