PowerLogic EGX200 Instruction Bulletin page 15

63230-314-200/A2
8/2001

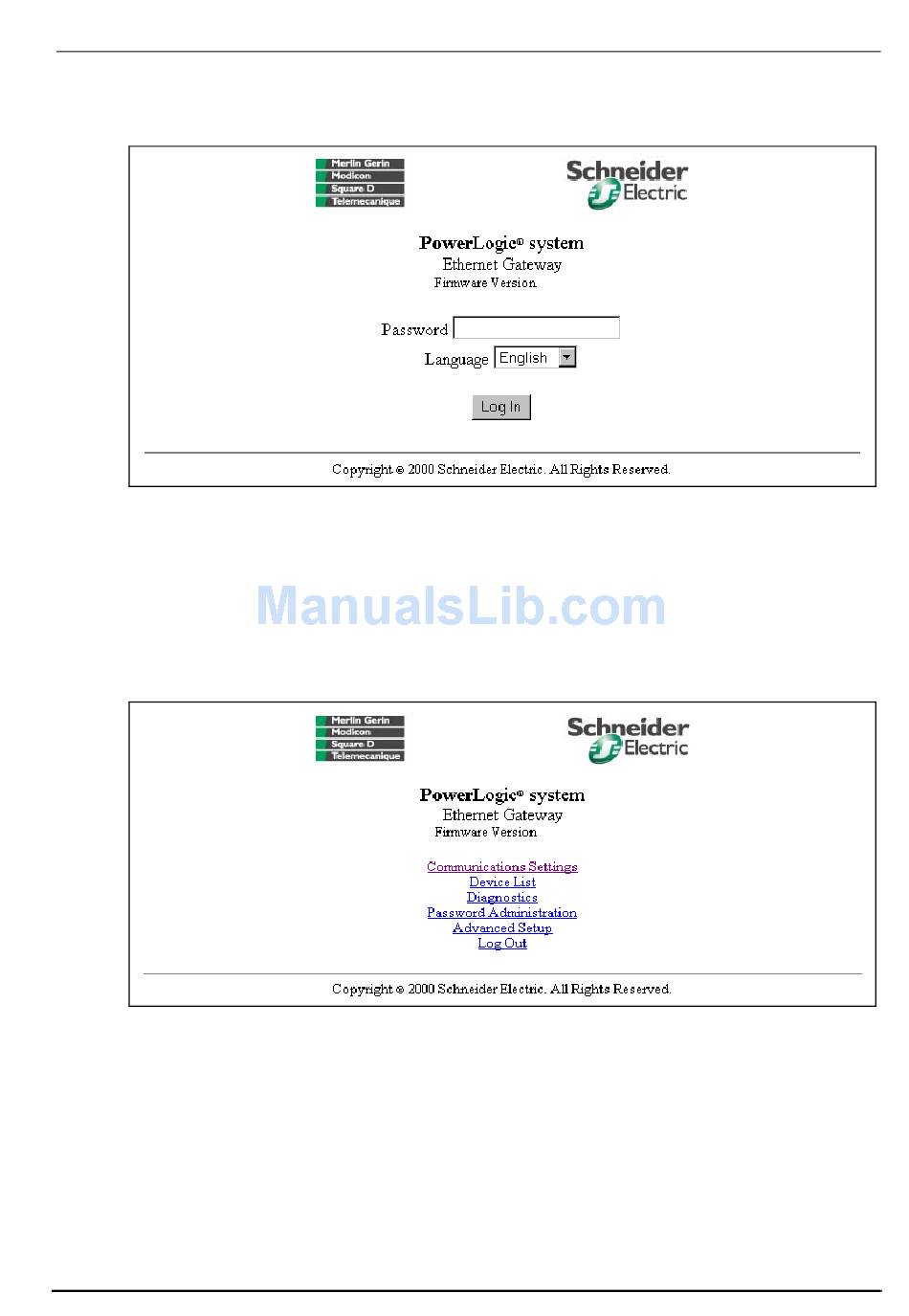

The EGX200 login page displays, as shown in Figure 3–5.
Figure 3–5: EGX200 Login page
6. From the Language pull-down menu, select the desired language.
7. In the Password field, type: admin
8. Click Log In.
The EGX200 Home page displays, as shown in Figure 3–6.
Figure 3–6: EGX200 Home page
9. Click Communication Settings to set up Ethernet and serial communication
parameters.
© 2001 Schneider Electric All Rights Reserved
Chapter 3—Getting Started
EGX200 Initial Setup
X.XXX
X.XXX
11
