PowerLogic EGX200 Instruction Bulletin page 18

Chapter 3—Getting Started
EGX200 Initial Setup
The Connection Description dialog box displays, as shown in Figure 3–9.

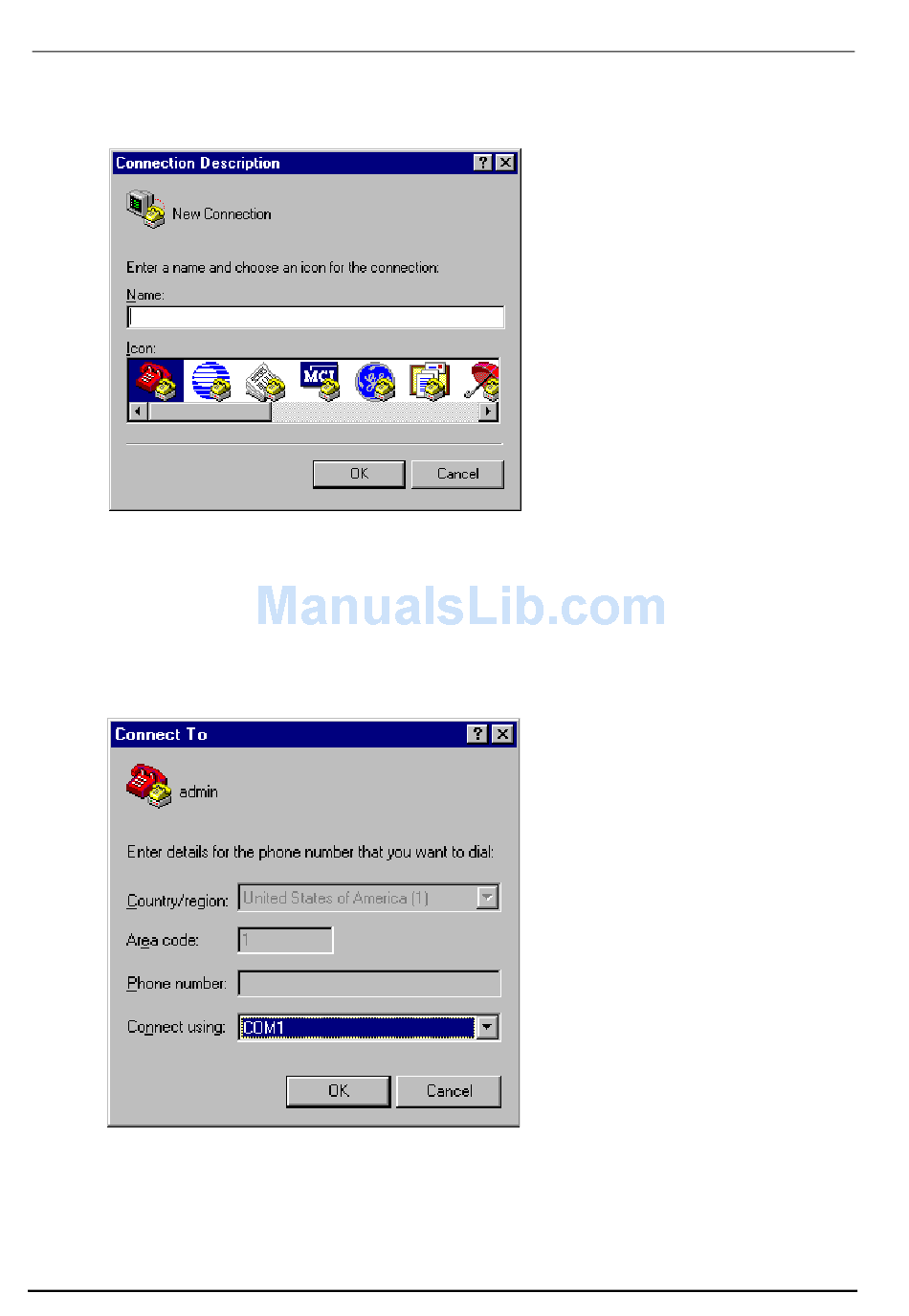

Figure 3–9: HyperTerminal Connection Description dialog box
3. In the Name field, enter a descriptive name for your new HyperTerminal
connection, and then click OK.
The Connect To dialog box displays, as shown in Figure 3–10.
Figure 3–10: HyperTerminal Connect To dialog box
4. In the Connect using field, select the desired PC COM port, and then click OK.
