Mounting Options

Figures 4–2, 4–3, and 4–4 illustrate some of the various mounting options.

Wall/Panel Mounting

Template dimensions
INCHES
(MILLIMETERS)

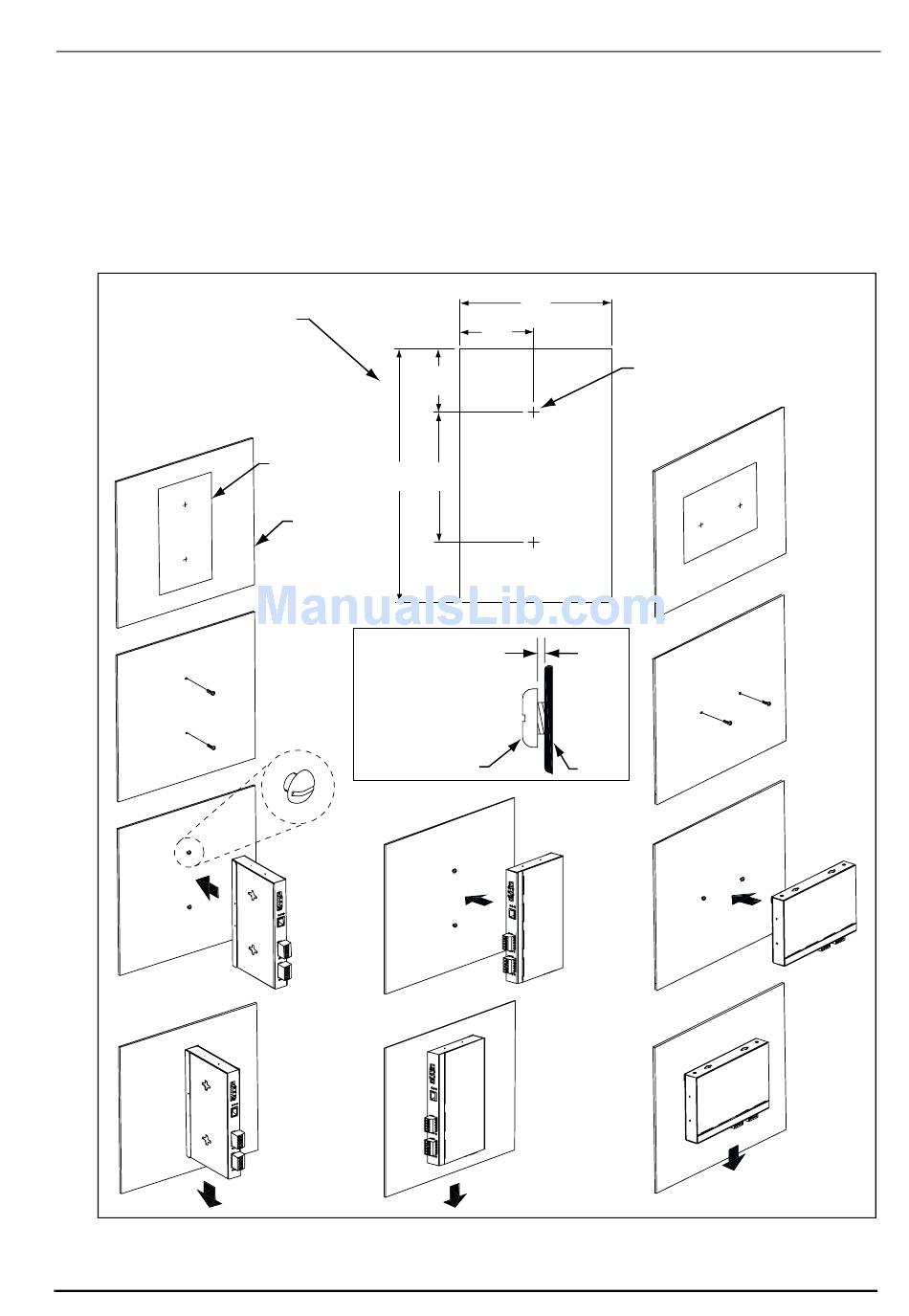

Figure 4–2: Wall/Panel Mounting
© 2001 Schneider Electric All Rights Reserved
1.94
(50)
Template
7.88 4.00
(201) (102)
Panel
.036 in. (1 mm) min.
.046 in. (2 mm) max.
Pan head screw
6–32 (4 mm)
Chapter 4—Installation and Wiring
Mounting Locations and Installation
4.81
(123)
2.32
(59)
Max. drill size #6
(2 places – location A)
A
Template
A
Panel
