Setup Using Hyperterminal; Accessing The Egx200 Setup Utility - PowerLogic EGX200 Instruction Bulletin

63230-314-200/A2
8/2001

Setup Using HyperTerminal

The EGX200 has a setup utility that can be accessed using the HyperTerminal
program for the Microsoft Windows operating system, or an equivalent terminal
emulator.

Accessing the EGX200 Setup Utility

To access the EGX200 setup utility, follow these steps:
1. Attach a null modem cable between the RS-232 COM port (COM 2) of the EGX200
and a Microsoft Windows-based PC, as shown in Figure 3–8.
+
-
Connect to 24Vdc
power source
To Earth ground

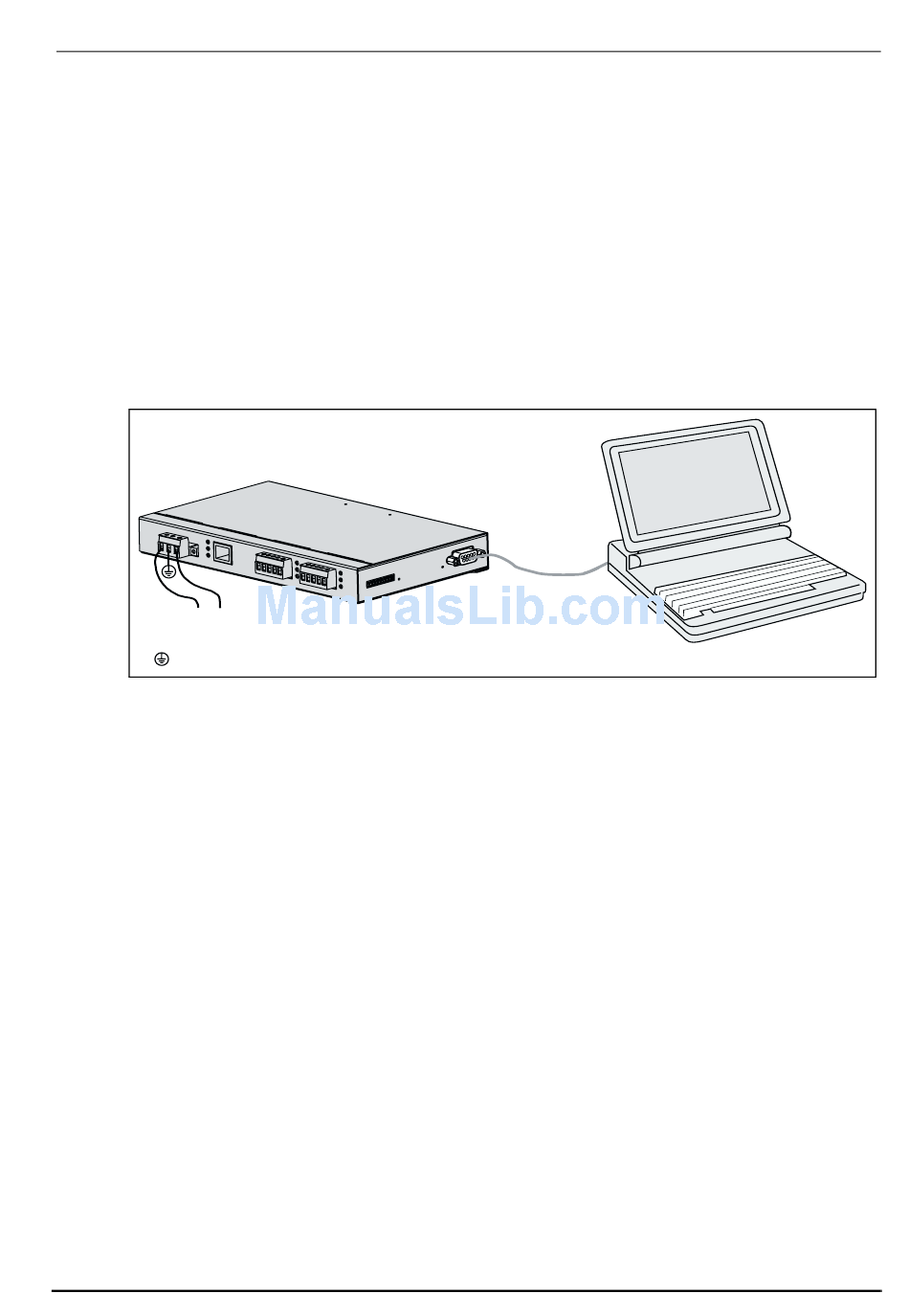

Figure 3–8: Connecting PC to EGX200 using Null Modem cable
2. From your PC, launch HyperTerminal. To do this, from the Windows Explorer task
bar, click Start > Programs > Accessories > Hyperterminal > HyperTerminal.
© 2001 Schneider Electric All Rights Reserved
Chapter 3—Getting Started
Null
Modem
cable
Catalog #:
EGWNMC
EGX200 Initial Setup
13
