PowerLogic EGX200 Instruction Bulletin page 20

Chapter 3—Getting Started
EGX200 Initial Setup
6. Enter the EGX200 Setup Utility by doing the following steps:
NOTE: After applying or cycling power to the EGX200, the green COM 2 RS-485
LED turns OFF, and you have 5 seconds to press Enter on the PC keyboard to
access the EGX200 setup utility.
a. Apply power to the EGX200 by wiring the 24 Vdc connector to a power source,
or cycle the power.
b. While the COM 2 green RS-485 LED is OFF, press Enter.
The EGX200 Setup Utility menu displays, as shown in Figure 3–12. Table 3–4
provides descriptions of each menu option.

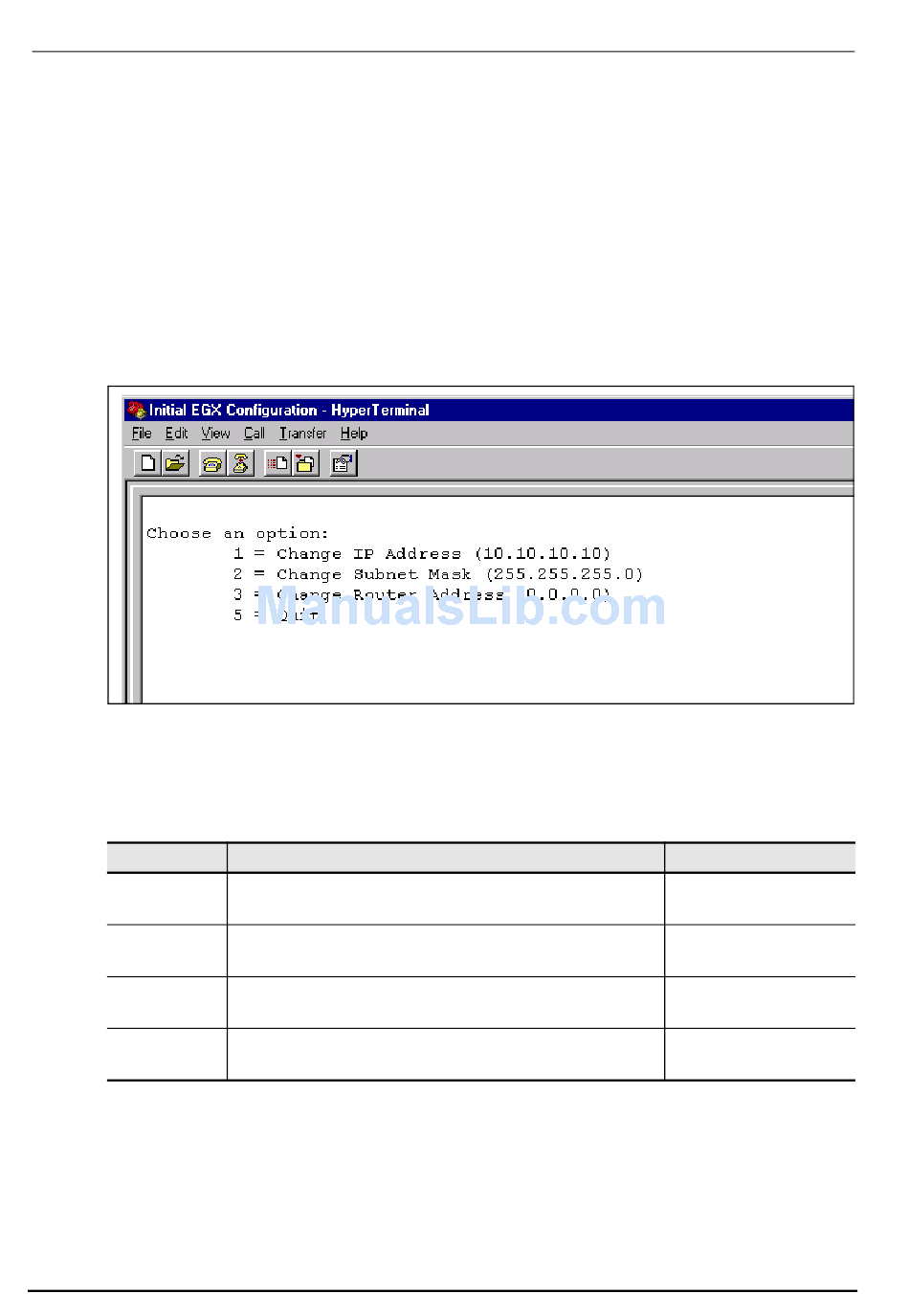

Figure 3–12: EGX200 HyperTerminal Setup Utility options
Table 3–4: EGX200 Setup Utility descriptions
Option No.
1
2
3
5
You are now ready to install and use the EGX200 on your Ethernet network. Refer
to Chapter 4 and Chapter 5 for more information.
16
Description
Allows you to enter the unique IP address for the
EGX200
Allows you to enter the Subnet Mask address of the
EGX200 network
Allows you to enter the Router IP address for the
EGX200
Saves the above configuration and exits the
EGX200 setup utility
10.10.10.10
255.255.255.0
0.0.0.0
© 2001 Schneider Electric All Rights Reserved
63230-314-200/A2
8/2001
Default Setting
