WIRING CONNECTIONS

Control Power Wiring

The EGX200 accepts 24 Vdc control power with maximum power consumption of 8
watts. A 3-position male terminal block connector is provided for control power (see
Figure 4–5).
A universal 24 Vdc switching power supply rated for 20 watts is included with the
EGX200. This switching power supply must be connected to the EGX200 as shown in
Figure 4-5, in which the red wire is connected to the positive (+) terminal and the black
wire is connected to the negative (-) terminal.
If needed, another power supply or cord can be used to power the EGX200, as long
as it is rated for a minimum of 8 watts at 24 Vdc (±10% regulation).
+24 Vdc
Common
Black
Red
To Earth ground

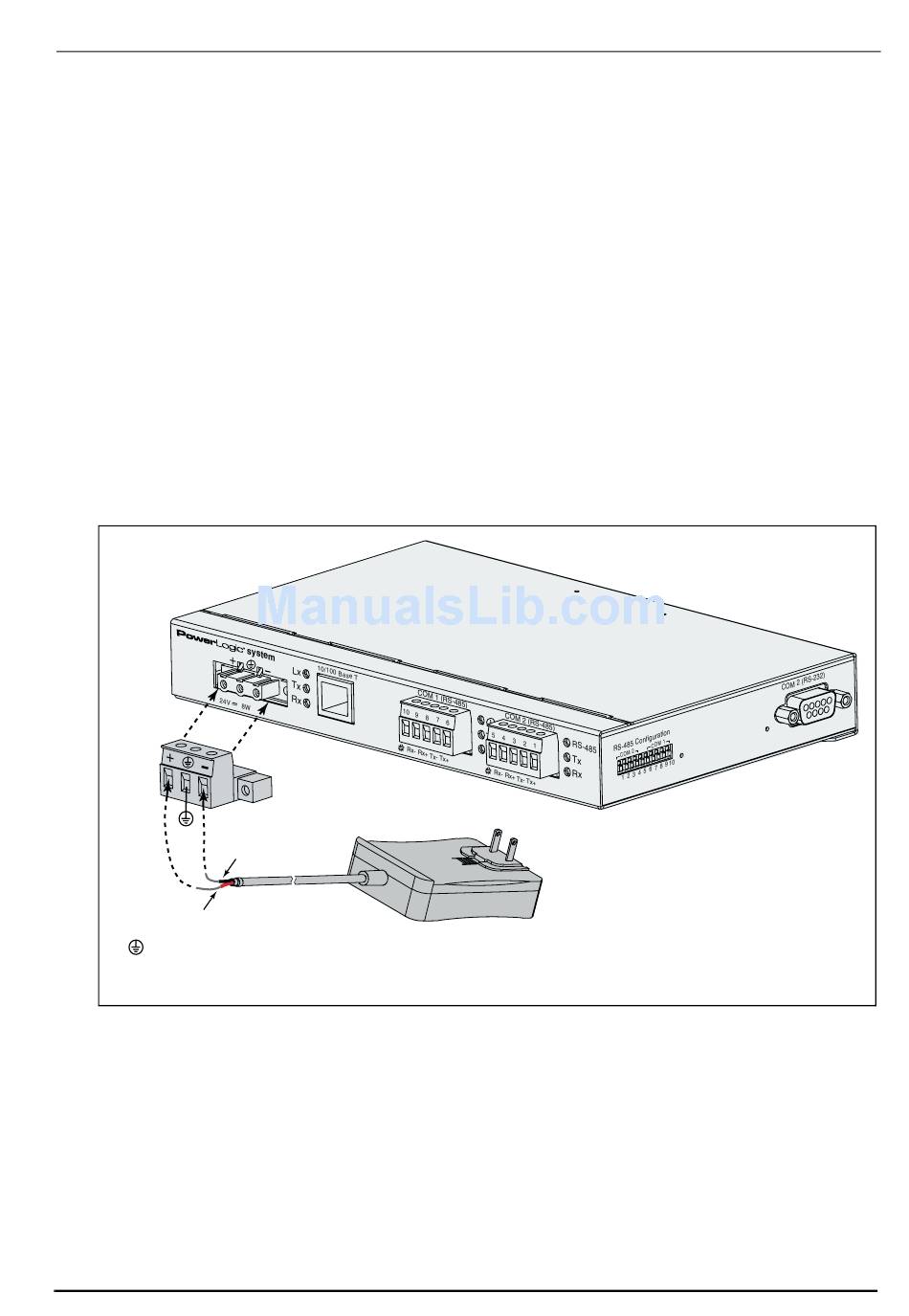

Figure 4–5: Control Power Connector

Control Power LED

A green power LED on the EGX200 remains ON to indicate it is receiving control
power. This LED is located above the COM 1 (RS-485) Rx and Tx LEDs.
© 2001 Schneider Electric All Rights Reserved
24 Vdc Control
Power Connector
Cable (6 feet)
NOTE: The control power supply must be properly connected to a true Earth ground.
Chapter 4—Installation and Wiring

Wiring Connections

24 Vdc Switching
Power Supply
(included with EGX200)
21
