Diagnostics

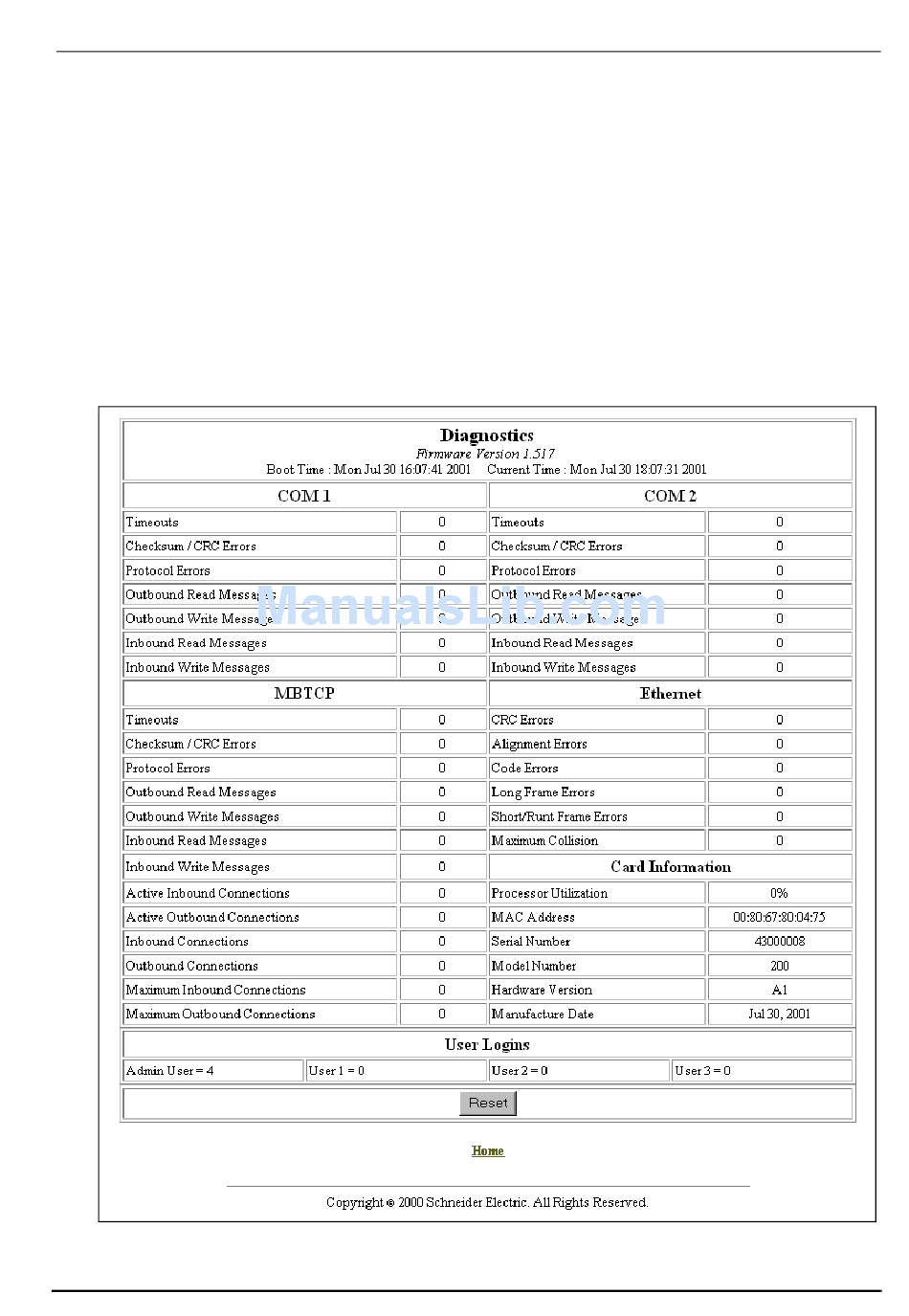

Figure 5–6 shows the Diagnostics page, which displays diagnostics data and may be
helpful in troubleshooting network problems. This page also contains information about
your specific EGX200, including the serial number, manufacturing date, and Media
Access Control (MAC) address. Pressing Reset clears all cumulative counters.
The User Logins are shown at the bottom of the page. This tracks users since the
EGX200 was last activated.
NOTE: This page shows accumulated readings since the EGX200 was last activated.
If power to the EGX200 is lost, all values reset to zero.
Figure 5–6: Diagnostics page
