EGX200 EMBEDDED WEB PAGE OPTIONS

The standard options shown on the EGX200 home page are summarized in
Table 5–1. Following the table, each option is explained in more detail.
Table 5–1: EGX200 setup options
EGX200 Setup Options
Communication Settings
Device List
Diagnostics
Password Administration
Advanced Setup
Log Out


Accessible by administrator only

Communications Settings

Figure 5–4 shows the Communications Settings page, where you can change Ethernet
and serial communications parameters here. After changing values, you must click the
Update button for changes to take effect.
NOTE: After making changes and clicking Update, the EGX200 resets and the new
settings go into effect. Because of this reset, you must log in to the EGX200 again by
typing the IP address into the address field of your web browser and pressing Enter.

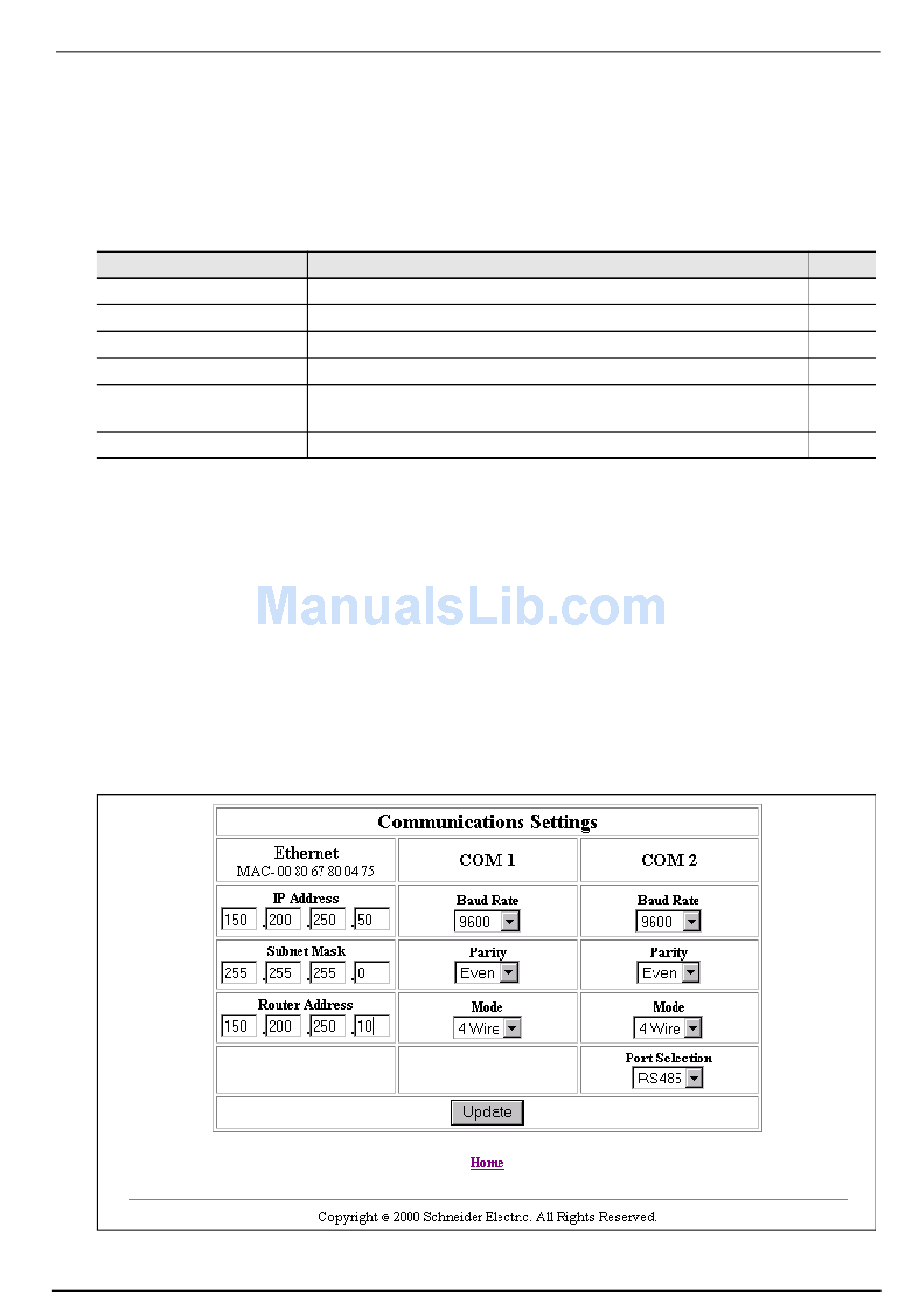

Figure 5–4: Communications Settings page
