Chapter 3—Getting Started

EGX200 Initial Setup

EGX200 INITIAL SETUP
Before configuring the EGX200, obtain a unique static IP address, subnet mask, and
router IP address from your network administrator.
Table 3–2: Options for Ethernet Communications Setup
Option
IP Address
Subnet Mask
Router IP Address The router used for wide area network (WAN) communications
There are two ways to initially set up and assign the EGX200 Ethernet parameters:
• Using a Web Browser
• Using HyperTerminal

Setup Using a Web Browser

The EGX200 has a web server that includes embedded pages that let you configure
Ethernet and serial communication parameters, add serial devices, enter passwords,
and access diagnostics. The EGX200 ships with a default IP address (10.10.10.10)
and a subnet mask default address (255.255.255.0) that can be used to access these
web pages. The Communication Settings web page is used to set up the desired IP
address, subnet mask, and router IP address to match the network configuration.
To access the EGX200 Communication Settings web page using a browser, follow
these steps:
1. Connect a cross-over Ethernet cable from the EGX200 to the PC, as shown in
Figure 3–1.
+
Connect to 24Vdc
power source
To Earth ground

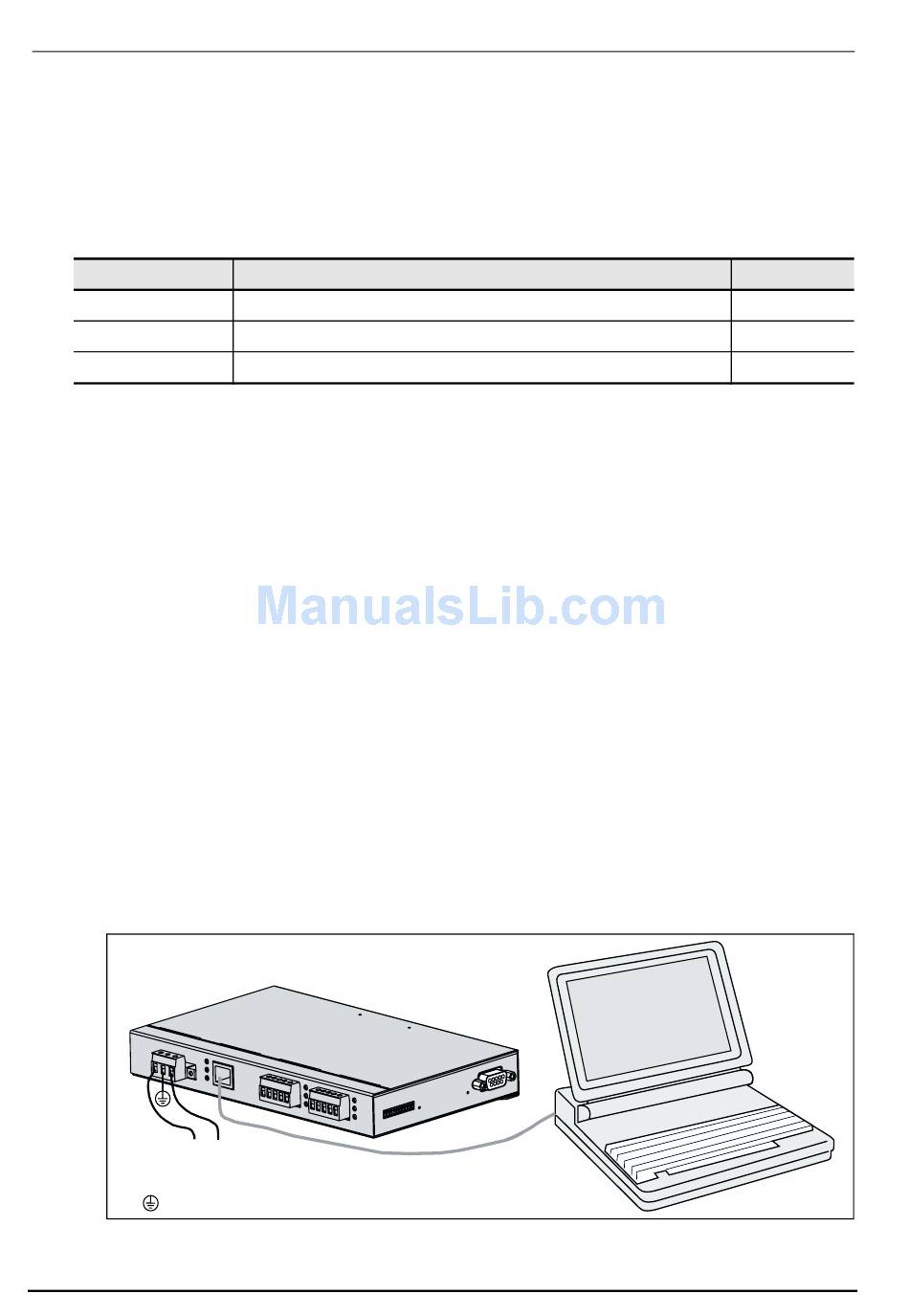

Figure 3–1: Connecting PC to EGX200 using cross-over Ethernet cable
8
Selection Description
The EGX200 Ethernet IP network address (static IP required)
The Ethernet IP subnet mask address of your network
-
Cross-over
Ethernet cable
© 2001 Schneider Electric All Rights Reserved
63230-314-200/A2
8/2001
Default
10.10.10.10
255.255.255.0
0.0.0.0
