2. Power the EGX200 by connecting a 24 Vdc power source to its control power
connection.
Make sure that the control power is properly Earth grounded (see Control Power
Wiring on page 19).
3. For the PC, force the static IP address (10.10.10.11) and a subnet mask
(255.255.255.0).
An example using Microsoft Windows
help with other systems, contact your network administrator.
a. From your PC's task bar, Click Start > Settings > Control Panel.
The Control Panel screen displays.
b. From the Control Panel screen, select Network.
The Network dialog box displays.
c. From the Network dialog box, select the Protocols tab.

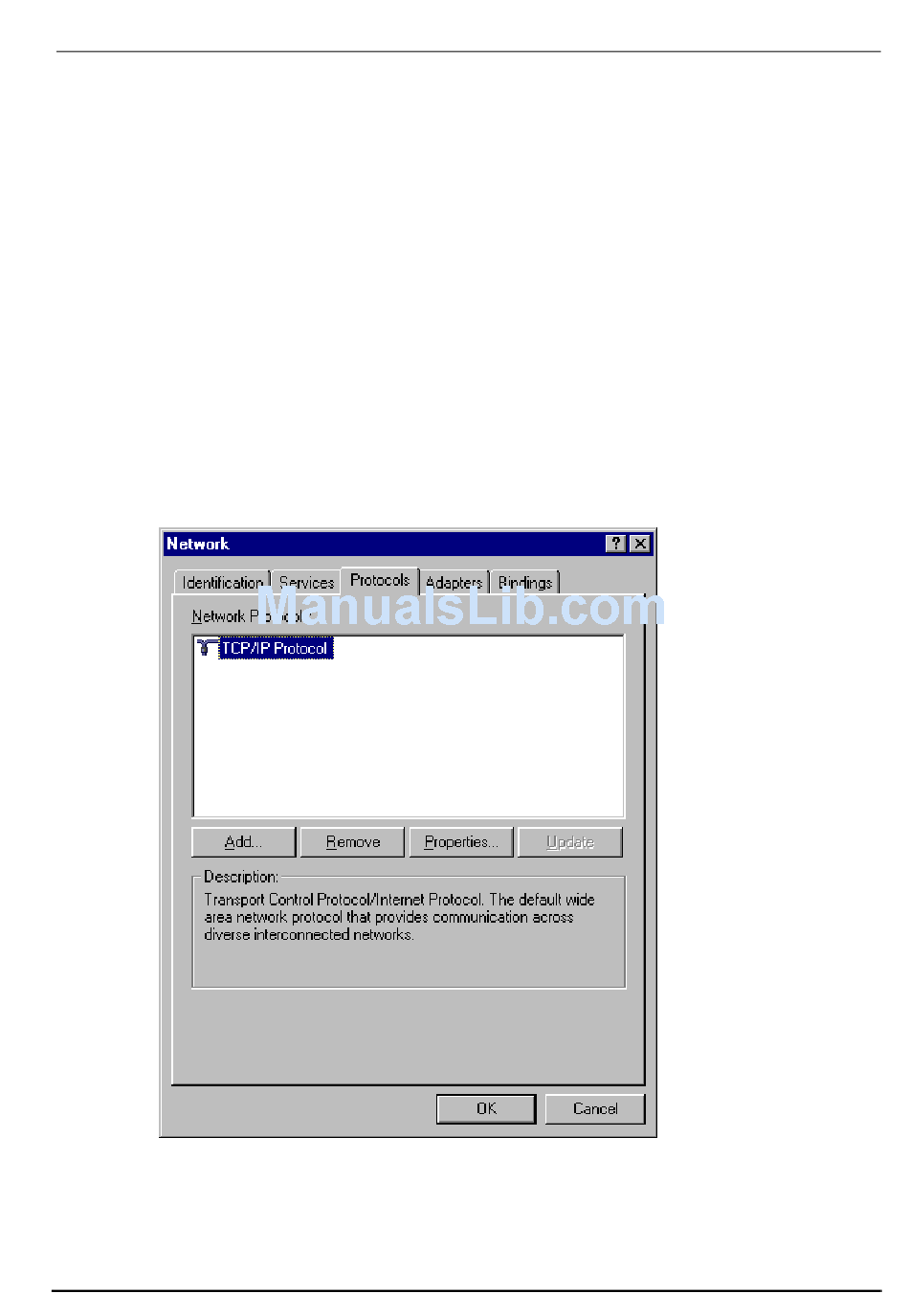

The Network Protocols dialog box displays, as shown in Figure 3–2.
Figure 3–2: Entering the Network Protocol
d. For Network Protocols, select TCP/IP Protocol, and then click Properties.
