To set up the Device List, follow these steps:
1. In the COM 1 column, enter the device Address and Protocol type of each device
on the daisy chain of the COM 1 port.
2. Click "Update COM 1."
3. In the COM 2 column, enter the device Address and Protocol type of each device
on the daisy chain of the COM 2 port.
4. Click "Update COM 2."
For more information on setting up the Device List, refer to the list of notes and
Table 5–3 on page 34.

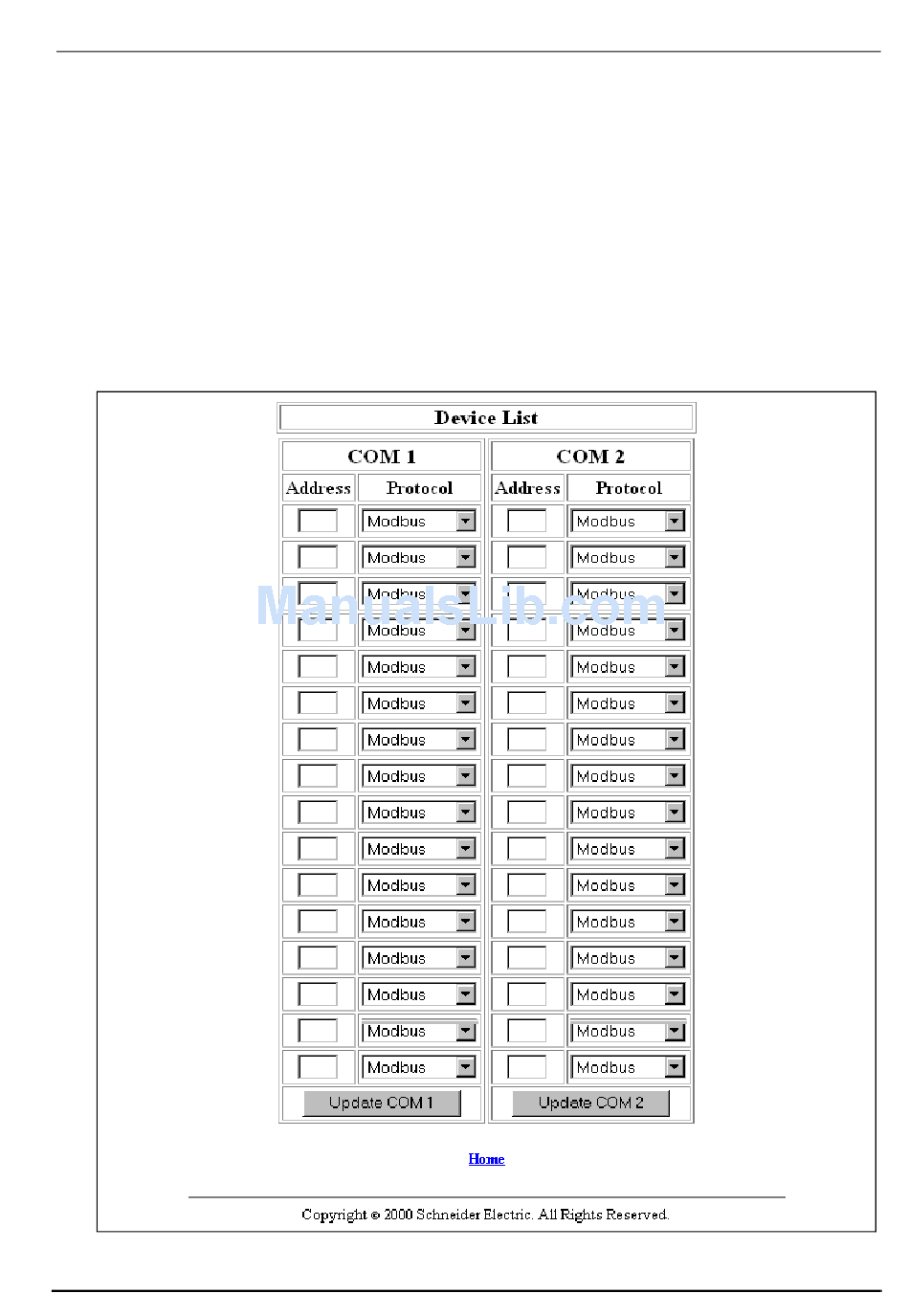

Figure 5–5: Device List page
