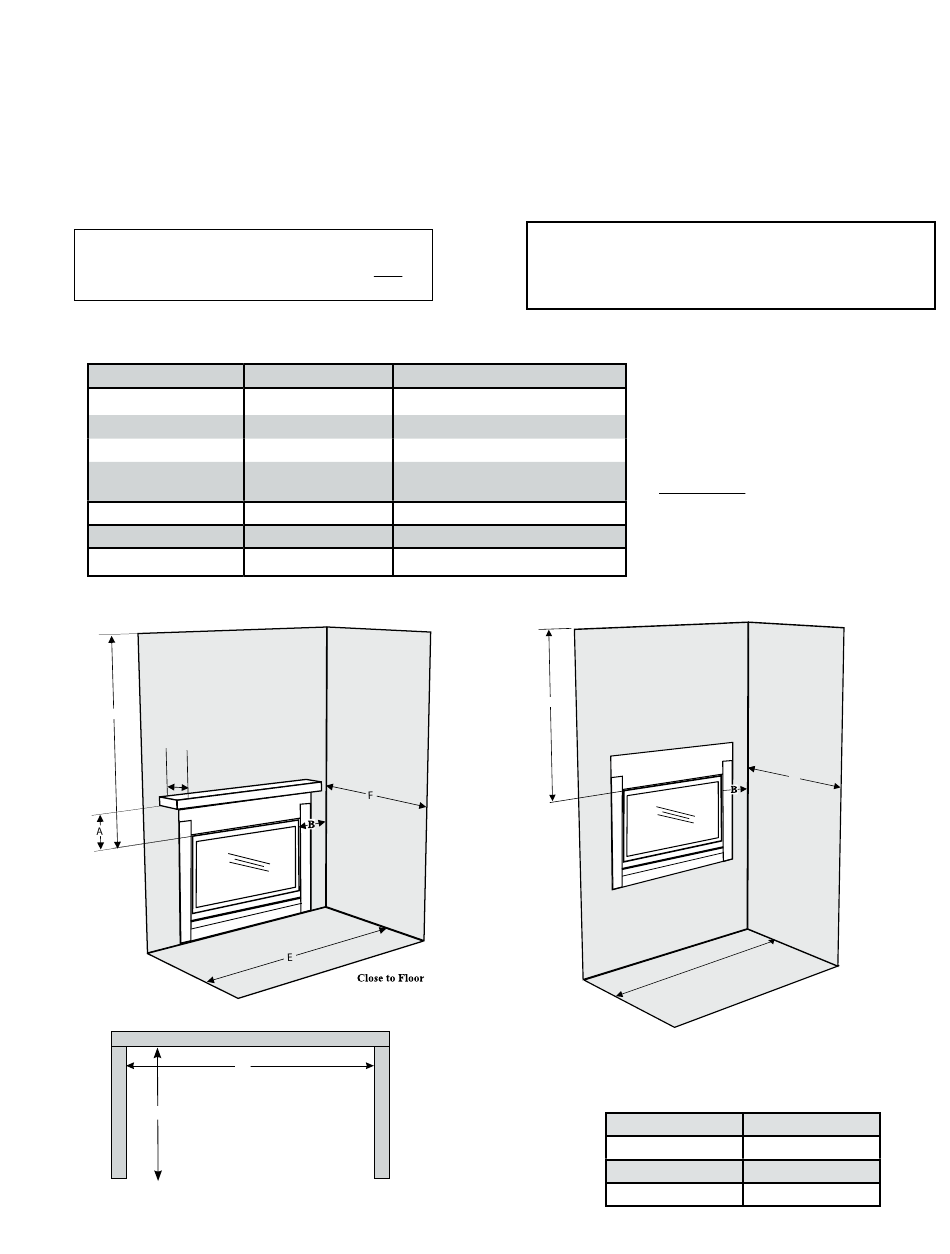

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance with these instructions.
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
Clearance:
A: Mantel Height (min.)
B: Sidewall
C: Ceiling
D: Mantel Depth (max.)
E: Alcove Width
F: Alcove Depth
Notes:
C
D
F
10 |
Regency Bellavista™ B41XTCE-10 Gas Fireplace
B41XTCE Clearance Requirements
Dimension
17-9/16" (446mm) Top of Fireplace Opening
9" (229mm) Side of Fireplace Opening
36-5/8" (930mm) Top of Fireplace Opening
12" (304mm) 25-13/16" (651mm)
from Top of Fireplace Opening
60" (1524mm) Wall to Wall (Minimum)
36" (914mm) Front to Back Wall (Maximum)
0" No Hearth Required
E
Alcove
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
Measured From:
C
Horizontal Top
Horizontal Side
Horizontal Bottom
Vertical Vent
WARNING
Fire hazard is an extreme risk
NOTE: A 16" deep non-combustible hearth pad is
recommended for hardwood flooring and carpet.
F
E
Close to Ceiling
Minimum Vent Clearances
to Combustibles
3" (76mm)
2 " (51mm)
2" (51mm)
2" (51mm)
