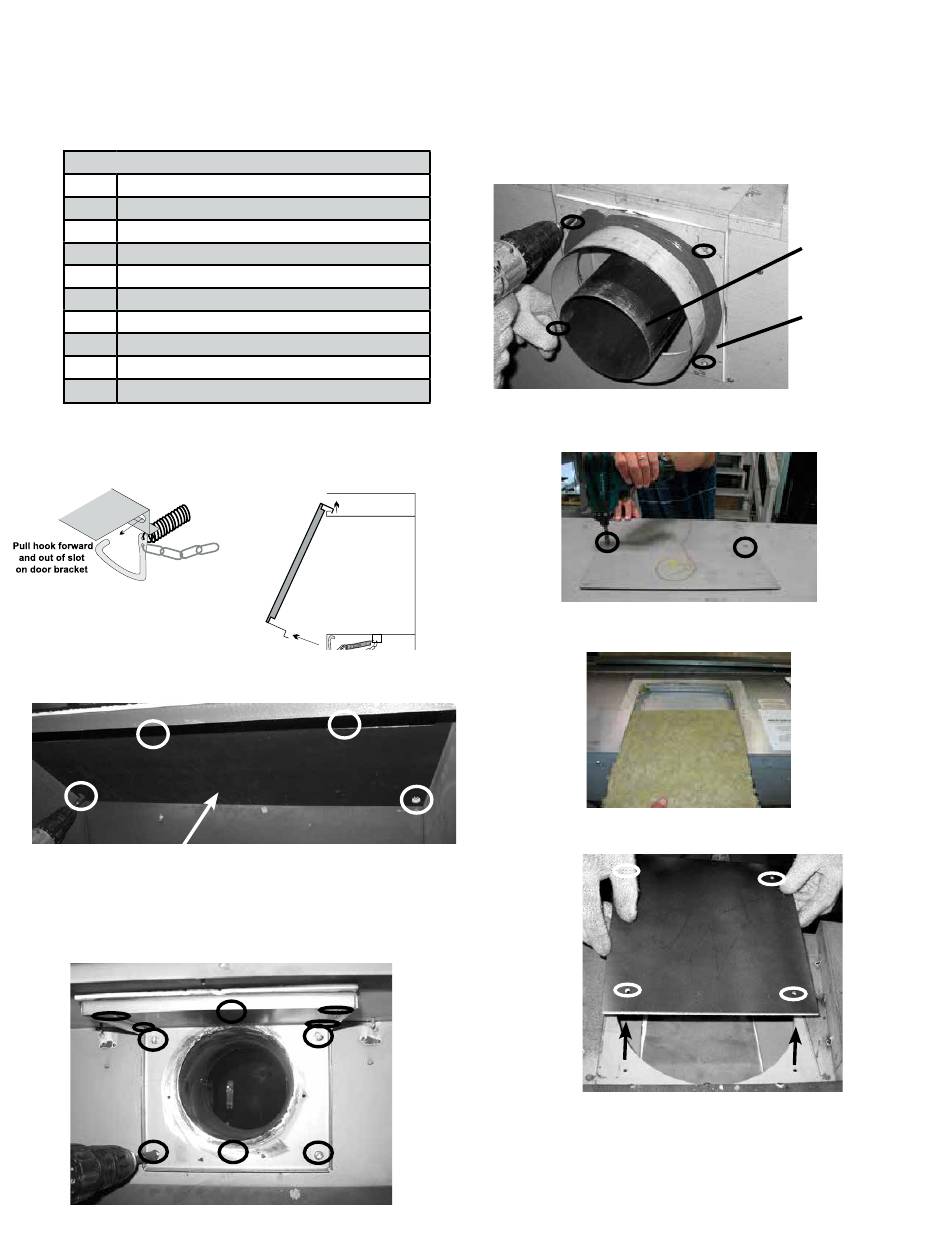

CONVERSION TO TOP VENT

Note: This conversion must be done prior to the unit being placed in position.
The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.
Top Collar Assembly Kit Includes:
1 Intake Collar Assembly with Gasket
1 Intake Cover Plate with Gasket
1 Top/Rear Exhaust Assembly with Gasket
1 Baffle Plate
29 1/4" x 1/2" Screws (4 spares)
1 Restrictor
1 Intake Collar Gasket (spare)
1 Exhaust Assembly Gasket (spare)
1 Insulation Plate Cover
1 Insulation Filling
1) Remove the door by releasing the spring hooks at the bottom and lifting
the door up off the door frame.
2) From inside the firebox, remove the baffle plate by removing 4 screws
- remove top front screw first.
Baffle Plate
3) From the inside of the firebox, remove the exhaust assembly by remov-
ing the 10 screws.
Swing door out
from the bottom
and lift up off
of door frame
Flush
Door
4) From the outside rear of the firebox, remove the intake collar assembly.
Remove the 4 - 1/4" x 1/2" screws.
5) From the outside top of the firebox - remove top insulation cover plate
- by removing 2 screws as shown and discard.
6) From the outside top of the firebox - slide the square piece of insulation
out and discard.
7) From the outside top of the firebox - remove the intake cover plate by
removing the 4 - 1/4" x 1/2 " screws.
Before proceeding to Step 8, inspect condition of all gaskets.
DO NOT install parts with damaged gaskets. Replace if necessary with
spare gaskets supplied.
Regency Bellavista™ B41XTCE-10 Gas Fireplace
installation
|
Exhaust
Assembly
Intake Collar
Assembly
