installation
|
26

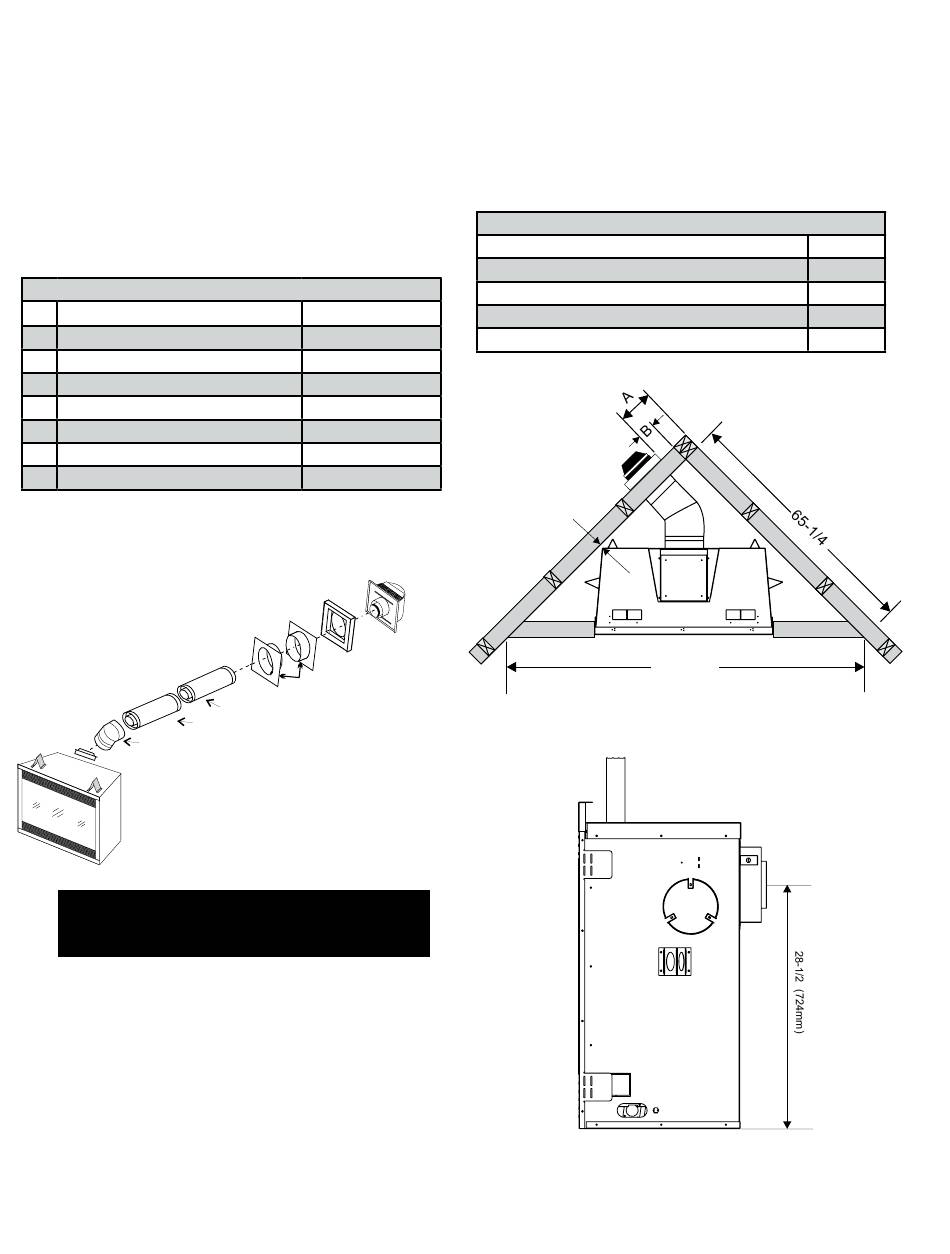

HORIZONTAL TERMINATIONS
ASTROCAP XL & RIGID REAR VENT KIT

FOR CORNER INSTALLATIONS

RIGID PIPE 5" X 8"

Designed for a minimum vent configuration when using a rear vent
application with a horizontal termination in a corner installation.
Kit# 946-612 Includes:
1 AstroCap XL
1 Rigid Pipe Adaptor
1 Vinyl Siding Standoff (Optional)
1 Wall Thimble
1 6" Galvanized Rigid Pipe
1 8-1/2" Galvanized Pipe Extension
1 45º Galvanized Elbow
1 90ml MillPac
45 elbow
0
Rigid Pipe Adaptor
Must use Rear Venting Deflector packaged with unit in
rear vent horizontal termination applications.
26 |
Regency Bellavista™ B41XTCE-10 Gas Fireplace
946-623/P
770-994
946-625
58DVA-WT
58DVA-06
58DVA-08A
58DVA-E45
948-128
Vinyl Siding
Standoff
(Optional)
Wall Thimble
Pipe Length
IMPORTANT
Placement of the Unit into the Corner
Back Top Corner of Unit to Wall
Inside Corner out along the Wall
Across the Face of the Unit, Wall to Wall
A - Clearance to Outside Corner
B - Clearance to Inside Corner
3
Astrocap
XL
65-1/4"
91-11/16"
13"
5-1/2"
91-11/16
3"
