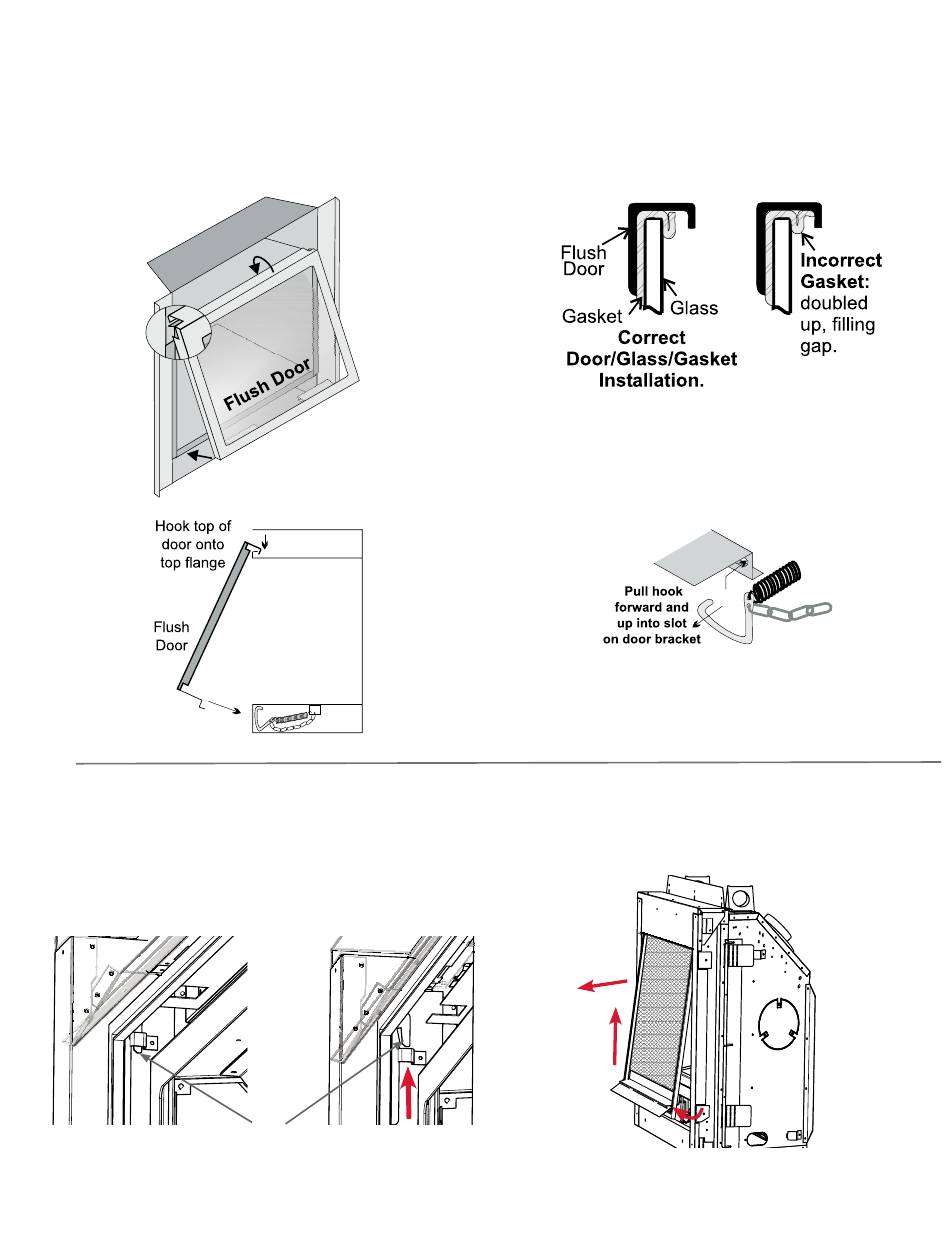

FLUSH GLASS DOOR INSTALLATION

The standard flush door comes with a black frame. To install the frame,
simply hook the top door flange onto the top of the unit and swing the
door towards the unit, see Diagram 1.

SAFETY SCREEN

1. To remove the safety screen, grasp on both sides from the bottom. Lift up
and out slightly to release from bottom magnets and to release hooks on
mesh frame from brackets inside unit (see below).
Hooks on mesh barrier frame
52 |
Regency Bellavista™ B41XTCE-10 Gas Fireplace
Diagram 1
Be careful that the glass gasket does not roll up; there must be a gap
between the gasket and the door lip to ensure that the door sits securely
on the unit, see Diagram 2.
Use the hook to pull the spring out until you can put the hook into the
slot on the bottom door bracket. Repeat for 2nd spring. See Diagram 3.
To remove the flush door, reverse the above steps.
2. When hooks are clear of the bracket–tilt mesh frame out slightly from the
bottom and manoeuvre mesh out.
3. To reinstall–reverse steps.
Diagram 2
Diagram 3
