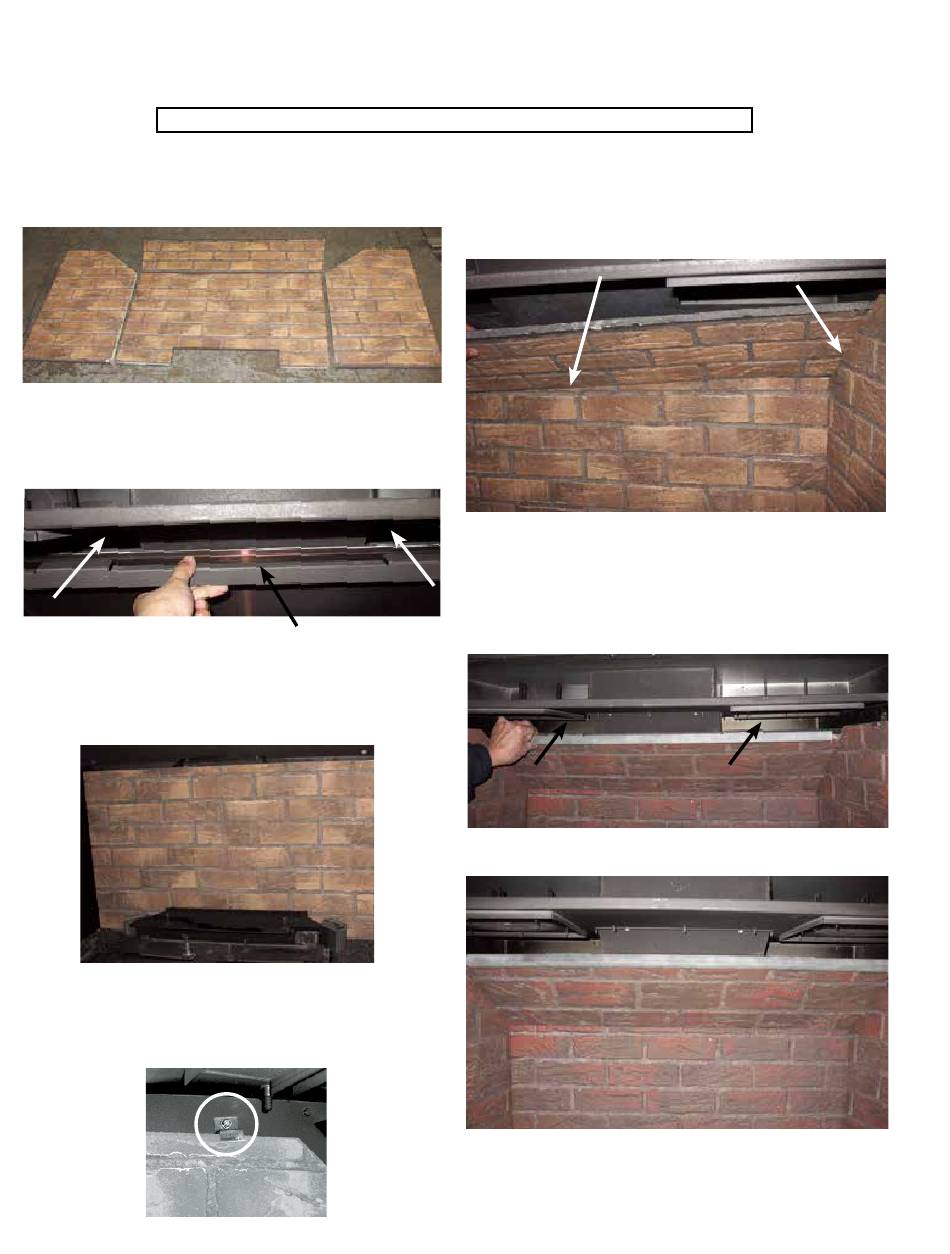

BRICK PANEL INSTALLATION

Must install one of the following: Brick Panels, Stainless Steel or Black Enamel Panels.
Dangerous operating conditions may occur if the panels are not installed or if installed with broken panels.
1) Unwrap the Brick Panels from the protective wrapping.
Left Panel
2) Ensure that the logs are not in the unit.
3) Prior to installation of the brick panels, remove the top panel bracket
currently fi tted into the baffl e opening on the inside top of the fi rebox.
See diagram below.
4) Install the back brick panel fi rst - use caution when clearing the
burner assembly and rear log tray so that the panel does not get
damaged.
Note: Ensure that the back panel is centered.
Back Panel Installed
5) Install either the left or right side brick panel by removing the screw
and brick clip on the upper side of the fi rebox wall (left side shown).
Position the left brick panel in place and secure with the brick panel
clip and screw removed from the fi rebox as shown below.
36 |
Regency Bellavista™ B41XTCE-10 Gas Fireplace
918-865a
BRICK PANEL INSTALLATION
Handle with care. DO NOT FORCE INTO POSITION.
Top Panel
Back Panel Right Panel
Top Panel Bracket
6) Slide the top brick panel under the left or right side panel (which ever
is installed fi rst - right side panel shown here) and back brick panel,
use care not to damage panel.
7) Install the remaining side panel (left or right), following the same
instructions as step 5.
8) Carefully position and fi t the top bracket in place by ensuring the tabs
of the bracket fi t into the baffl e openings as shown in the diagram 1
below. Push downwards to secure the bracket to the top panel.
