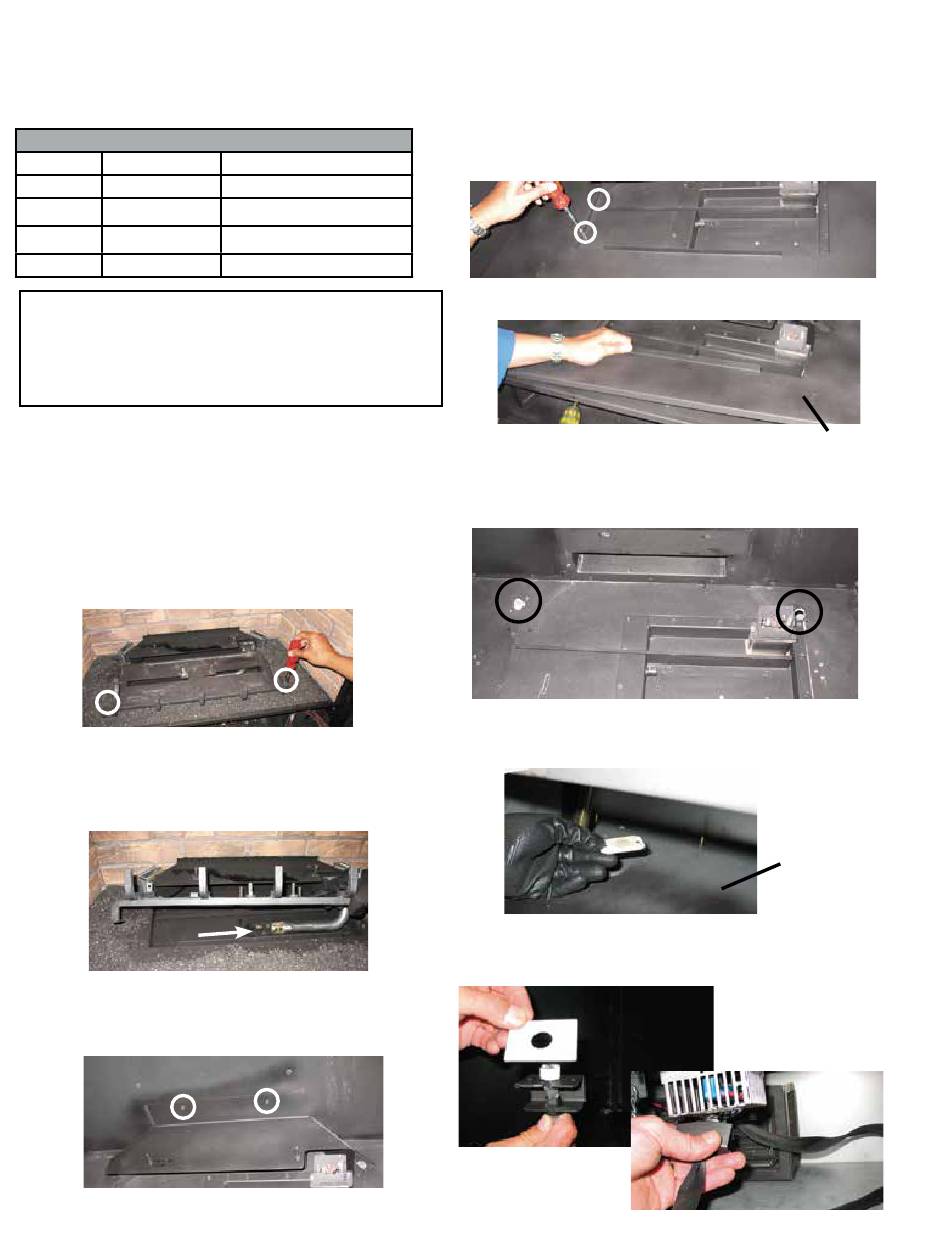

OPTIONAL ACCENT LIGHT INSTALLATION

Accent Light Assembly Kit
1 910-814
2 910-997
2 940-363
1 Light Assembly
1 918-864
Important: 120 Volt AC power is required for the optional light.
The receptacle box will be installed on the lower left corner of
the unit and will need to be wired by a qualifi ed electrician prior
to the optional light installation. The neutral (wider) slot of the
polarized receptacle should be at the top. A wall mounted switch
should be installed to turn the accent lighting on/off.
See wiring diagram in the instruction manual.
1) Shut off electrical and gas supply.
2) Remove the mesh guard and glass door - see instructions in manual.
3) Remove the logs, lava rock and vermiculite if installed.
4) Remove the brick or inner panels if installed - see instructions in manual.
5) Remove the burner and rear log tray - see below.
Diagram 1: Remove the left and right screws.
6) Slide the burner assembly to the right to release it from the orifi ce,
then lift it out.
Diagram 2: Slide burner assembly to the right
and then remove.
7) Remove the 2 screws securing the rear log tray and lift out. Diagram 3
918-864a
OPTIONAL ACCENT LIGHT INSTALLATION
Plug wiring + gasket
Halogen Bulb
Amber Glass
Includes gaskets (x 2)
Instruction Sheet
Diagram 3
8) Remove the 2 screws securing the base tray - lift base tray up and
out. Diagram 4a and 4b.
9) Remove the 2 cover plates from the fl oor of the fi rebox by removing
2 screws from each plate.
10) Remove the cover plate and gasket from the underside of the fl oor of
the fi rebox.
11) Install gaskets onto light assembly mounting plates and feed wires
through the underside of the fi rebox base. Left side shown, repeat
for right side.
Regency Bellavista™ B41XTCE-10 Gas Fireplace
1
B41XT
installation
Diagram 4a
Diagram 4b
Base Tray
Firebox Base
|
