Paging Modules

There are two microphone modules available. The QMP-5100B mounts into the BB-1000 series of backboxes. The
QMP-5101B is mechanically different and the display is set up across the top of the module. Electrically they are the
same. The QMP-5101B however mounts into the BB-5008 and BB-5014 only.

QMP-5100B Master Paging Module

The QMP-5100B Master Paging Module has a ribbon cable connection to the first QZP-5101 Zone Module, and
wiring terminals for connection to the QIF-5000B Interface Module in the Audio Cabinet and to the QMT-5300A or
QMT-5302 Telephone Master.
The two DIP Switches, SW1 & SW2 are for configuration. There are no field configurable jumpers or potentiometers
to adjust; these should be left alone with their factory default settings. See also Paging Operation on page 46.

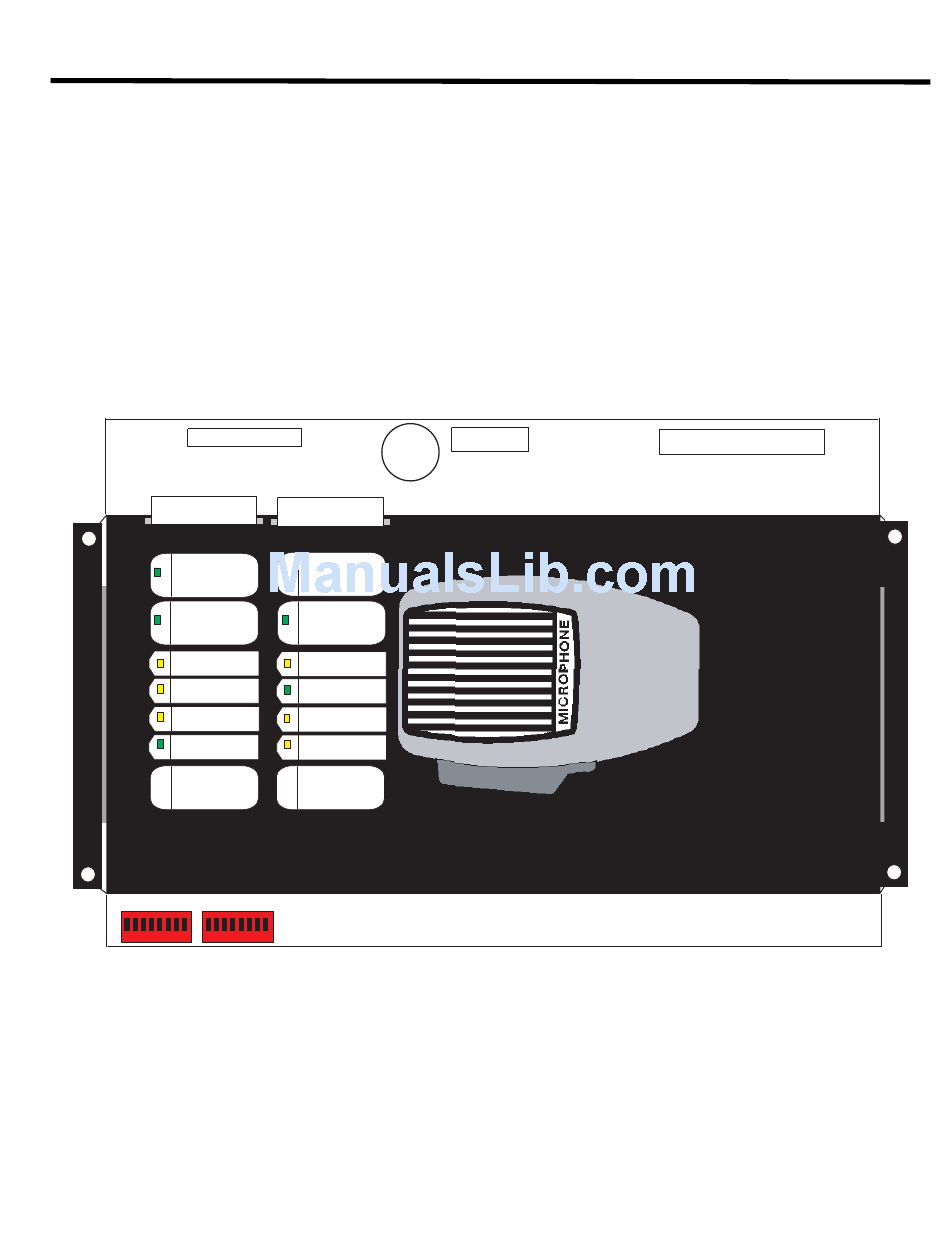

Figure 25: QMP-5100B Master Paging Module
WARDEN
PAGE
ALL-CALL
PAGE INHIBIT
REMOTE
FAILURE
MIC
TROUBLE
MIC
LEVEL
RESET
1 8 1
SW1
DIGITIZED
MESSAGES
ALL-CALL
MINUS
COMMON
TROUBLE
A.C. ON
AMPLIFIER
TROUBLE
CIRCUIT
TROUBLE
LAMP
TEST
8
SW2
