Programming the QDV-0001 Integrated Circuit Chips with Voice Messaging

QDV-1000 Voice Message Recording Procedure

Required Equipment
• Personal Computer with sound card.
• Audio cable with mini stereo plug at both ends (to plug into the computer and the stereo jack of the QDVP-100.
• Wire to 24V D.C. power supply such as Filtered smoke detector supply voltage at the Fire Alarm Panel or
• 24V DC transformer with power cord with 2 pin plug OR 2 wires to be connected to the QDVP-100 Configurator
power supply pins (remove terminal block) or terminal block.
• QDVP-100 Configurator.
• Small 8 ohm speaker (optional).
Required Software
• Any of the following software: Real Player, Windows Media Player or Windows Sound Recorder.
• The sound clip files to be recorded.
Setting Up the QDVP-100
1. Plug one end of the audio cable into the
audio input of QDVP-100 Configurator,
refer to diagram.
2. Plug the other end of the audio cable to the
audio out or speaker out of the personal
computer.
3. Connect the DC 24V power supply to
terminals marked +24V DC of the QDVP-
100 Configurator, see diagram at right.
4. Connect the optional speaker to terminals
marked Speaker + and - on the QDVP-100
Configurator, see diagram.
5. Verify that the ribbon cable at J2 on the
QDV-1000 module is not connected to QIF-
5000B at this time.
6. Plug the ribbon cable from the QDVP-100
to J1 of the QDV-1000.
7. Setting up the computer for recording:
8. On the computer, launch one of the wave
player software programs and load the
message file to be recorded. Play the
message and listen to the play back
through the speaker. Adjust the volume
level if required.
Setting up QDV-1000 for recording
1. Insert the QDV-0001 Integrated Circuit (IC) into the appropriate IC socket.
• U3: Evacuation.
• U4: Alert.
• U5: Alert2 (Manual).
• U6 is not used.
Turn ON the DC 24V power supply. Wait approximately 20 seconds, the two digit display of QDVP-100 will turn ON.
2. Press the CHAN button on the QDVP-100 to select the channel on which the message is to be recorded.
3. Channel 1: Paging. This channel is not used.
58

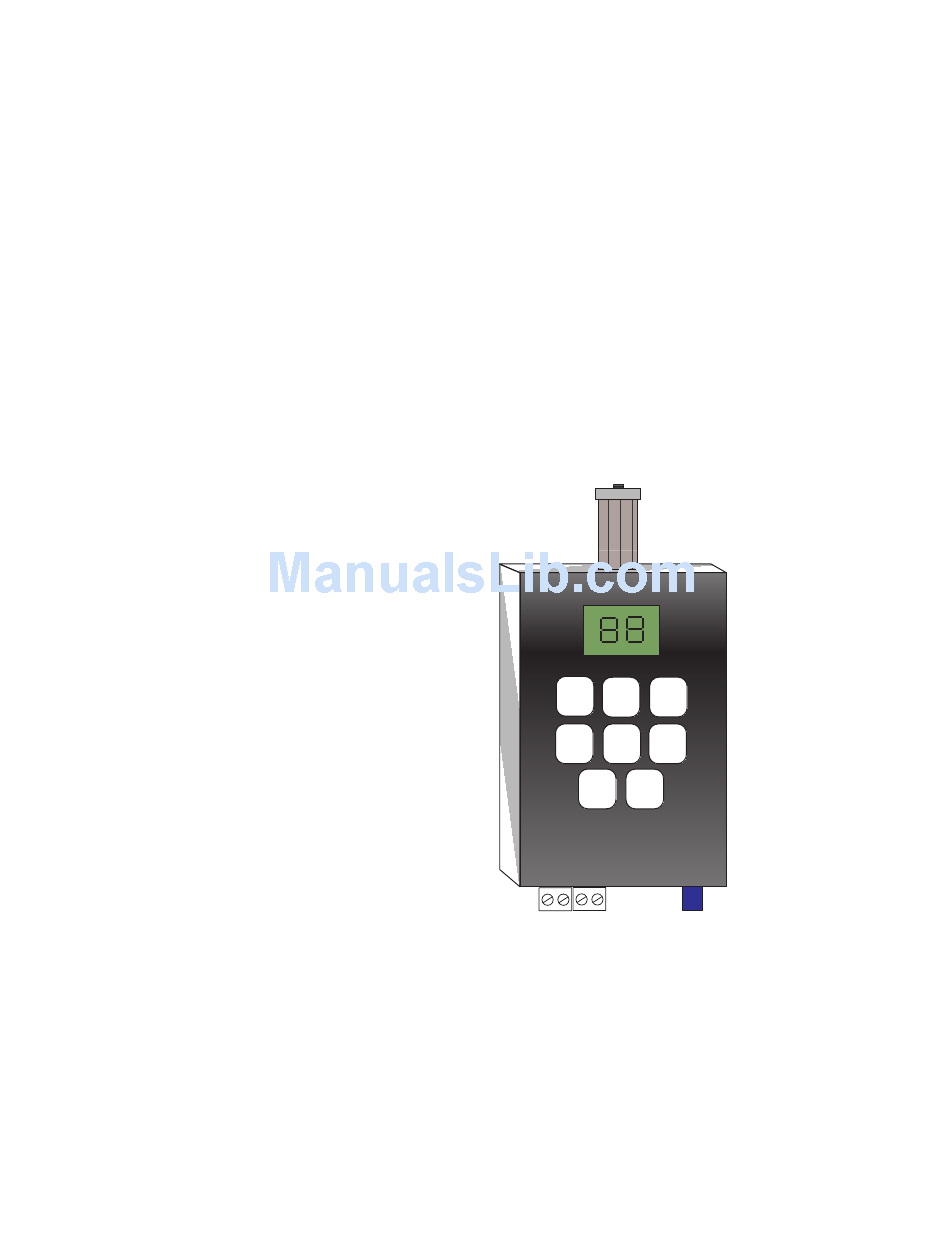

Figure 38: QDVP-100 CONFIGURATOR
CONNECTS TO QDV-1000
DIGITIZED VOICE MODULE
CONNECTOR J1
PLAY
MESSAGE
-
+
CONNECTS TO
SPEAKER
(OPTIONAL)
QDV-100
CONFIGURATOR
STOP
REC
ERASE NEW
SPARE
CHANNEL
-
+
STEREO JACK
WIRE TO
TO PERSONAL
+24V DC
COMPUTER,
POWER
AUDIO OUT OR
SUPPLY
SPEAKER OUT
