About the QDV-1000 and QDVP-1000
The QDV-1000 Digitized Voice Module provides digitized voice messaging for the QX-5000 Emergency Zone Audio
& Firefighters' Telephone System. The QDVP -100 Configurator provides a means of programming voice messages
for the QDV-1000 Digitized Voice Module.
The procedure for digitized voice messaging is to first program the QDV-0001 chips with the voice messages
required for the installation using the QDVP-100 Configurator. Next mount the QDV-1000 into the Audio Backbox.
Then configure the QIF-5000B module and follow with Audio Cabinet Configuration as stated on page 30.
Programming the QDV-0001 Integrated Circuit Chips with Voice
Messaging
You may skip this step if the chips have been programmed at the factory for you.
To program the QDV-0001 chips, place the chips required into their proper sockets in the QDV-1000 board and then
connect this board to a QDVP-100 Configurator. The QDVP-100 is connected to a laptop or personnel computer.
The computer is use to download any messages that are to be played at the installation.

Pre-installation Inspections

1. Verify that jumpers JP1 and JP2 on the QDV-1000 are over pins 2 and 3 for both, that is the jumpers are in
the left-most positions for both. In case that the 'Manual Message' option is used, move JP2 over to pins 1
and 2, which is the right-most position instead.
2. Locate the J8 header on the QIF-5000B module; remove all jumper headers if any.
3. For a single stage system with voice recording to be played on the Evacuation channel 2, install the QDV-0001
integrated circuit chip into socket U3 (this is the standard operation set up).
4. For voice recording to be played on the Alert channel 3, install a QDV-0001 integrated circuit chip socket into
U4.
5. For voice recording to be played on the Alert2 channel 4, install a QDV-0001 integrated circuit chip into socket
U5.

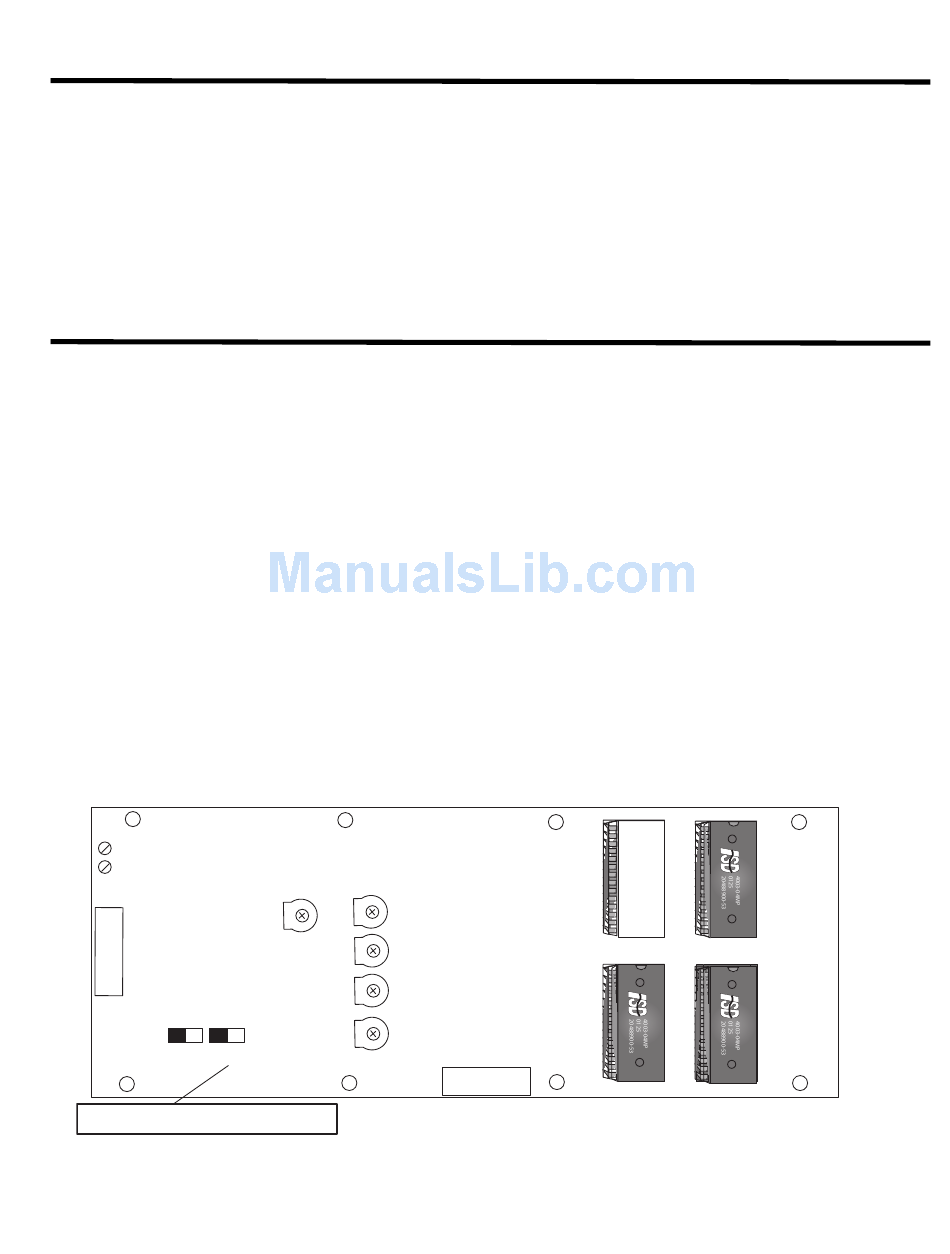

Figure 37: QDV-1000 Digitized Voice Board
TS1
TS1-2
TS1-1
J2
3 2 1 3 2 1
JP1
JP2
MOVE JUMPER JP2 TO PINS 1 &2 IF ALERT 2
CHANNEL (MANUAL MESSAGE) IS USED.
Q
Alert
Evac.
PT4
PT3
PT2
Alert2 (Manual)
PT1
Background noise
PT5
Header J1 connects to QDVP-100
QX-5000 Series Installation and Operation Manual
U6
U3
Not Installed
Not Used
Paging
Channel 1
U4
U5
Alert
Channel 3
J1
Evac.
Channel 2
Alert2
Channel 4
